Power Driver Seat Slide Assembly Installation
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

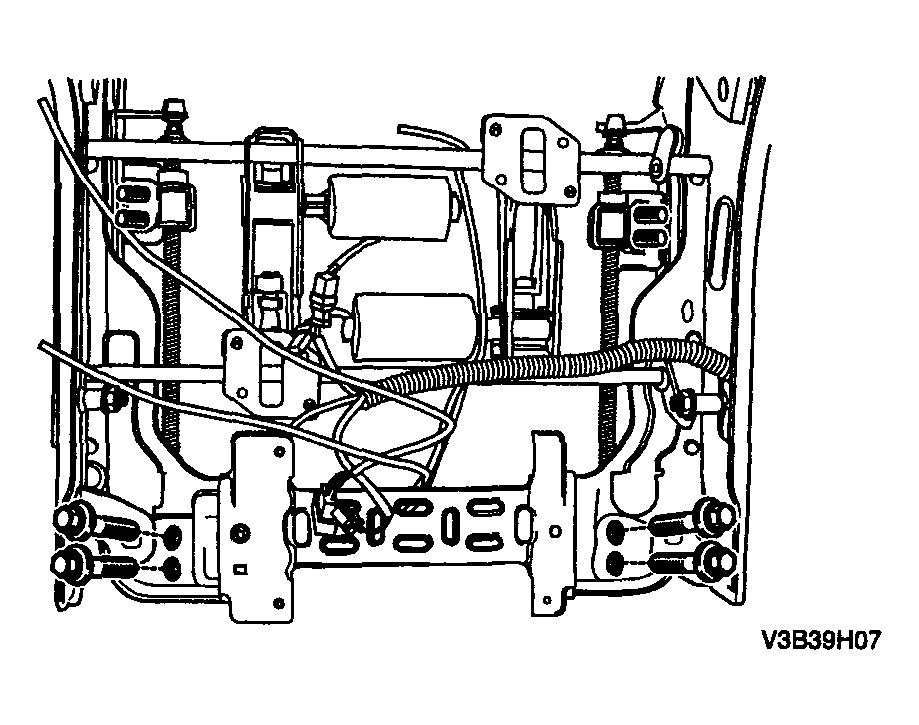

- Install the slide assembly with the bolts and the screws.
Tighten
Tighten the slide assembly bolts to 25 N.m (18 lb-ft).
- Connect the electrical connector.
- Install the front seat cushion. Refer to "FRONT SEAT CUSHION INSTALLATION ".
- Install the driver seat. Refer to "FRONT BUCKET SEAT INSTALLATION ".
