Front Seat Cushion Installation

  1. Install the cushion onto the seat track.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the seat cushion with the bolts.

    Tighten

    Tighten the front seat cushion bolts to 12 N.m (106 lb-in).

  3. Install the seat trims.
  4. Install the front seat in the vehicle. Refer to "FRONT BUCKET SEAT INSTALLATION ".

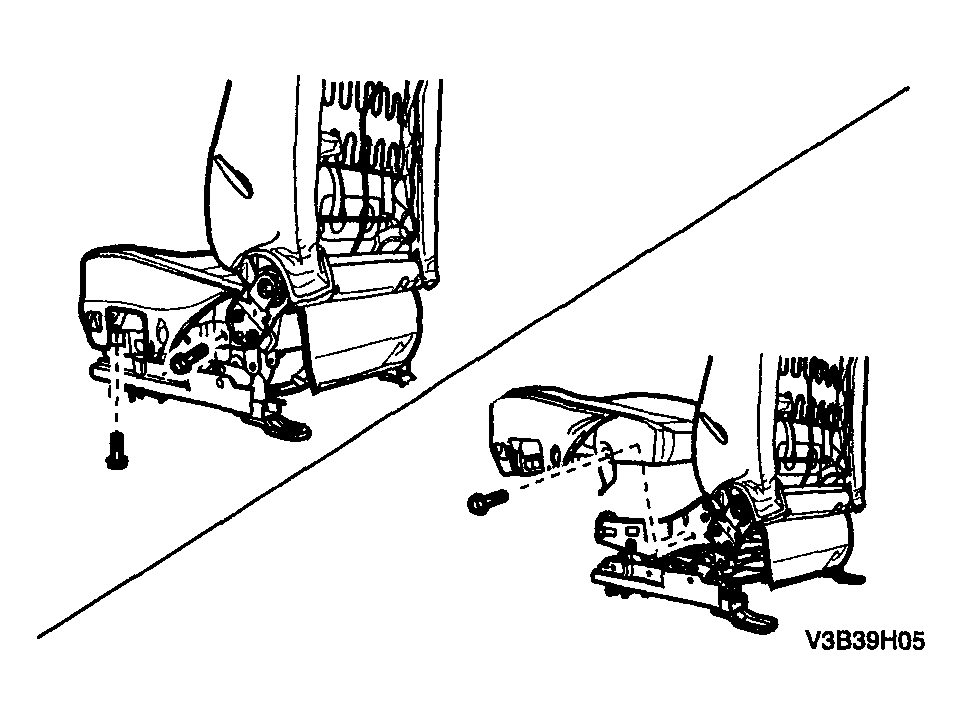

    Fig 1: Installing Seat Cushion With Bolts
    G04096290Courtesy of SUZUKI OF AMERICA CORP.
