Front Seat Trim Removal

  1. Remove the front bucket seat from the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL ".
  2. Remove the screw and the recliner lever.
  3. Remove the screws and the front seat trim.

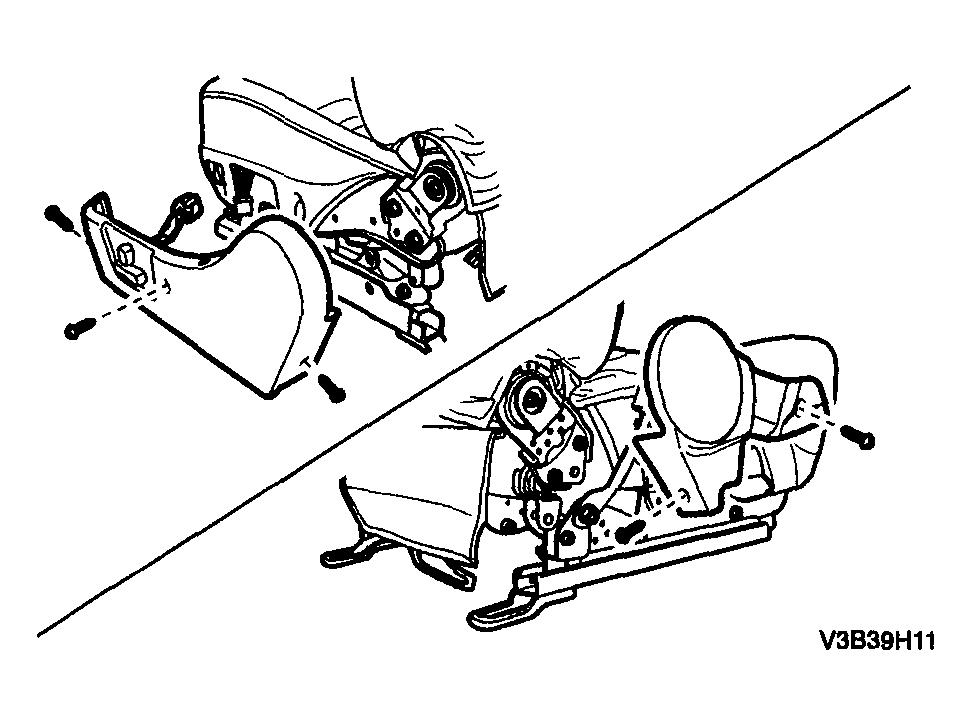

    Fig 1: Removing Screws And Front Seat Trim
    G04096301Courtesy of SUZUKI OF AMERICA CORP.
