Front Bucket Seat Removal

  1. Disconnect the negative battery cable.
  2. Remove the plastic caps and the bolts securing the rear portion of the front seat to the floor.

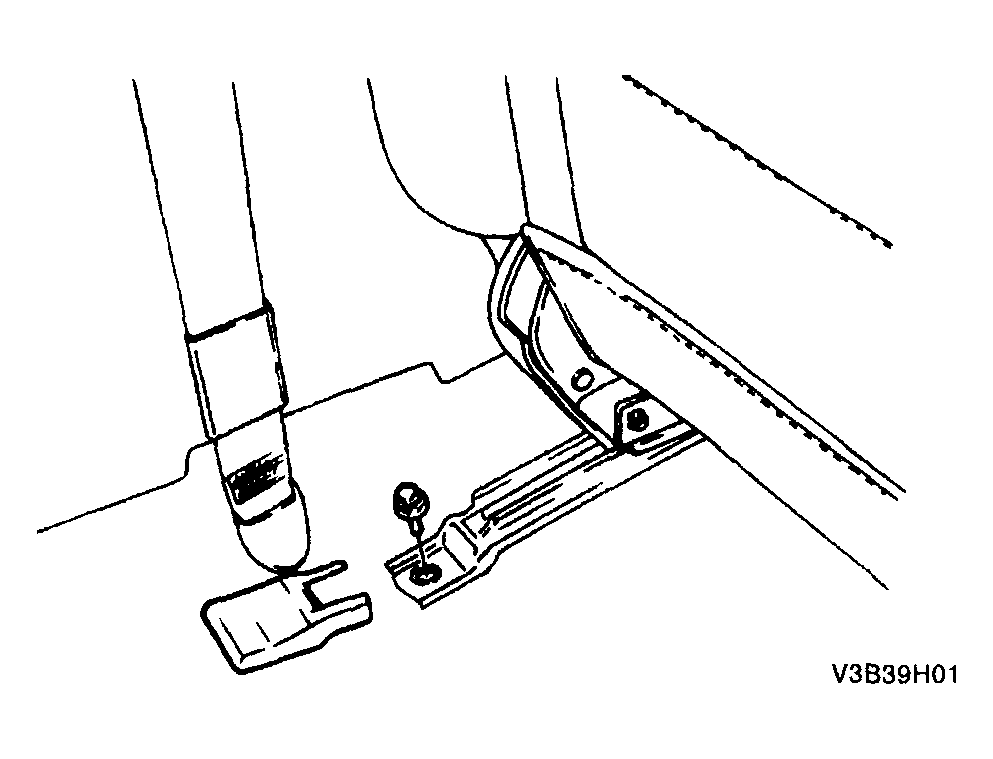

    Fig 1: Removing Plastic Caps And Bolts
    G04096281Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the plastic caps and the bolts securing the front portion of the front seat to the floor.
  4. Disconnect the electrical connectors.
  5. Remove the seat.
    Fig 2: Removing Seat Mounting Bolt
    G04096282Courtesy of SUZUKI OF AMERICA CORP.
