Front Bucket Seat Track Removal

  1. Remove the seatback. Refer to "FRONT SEATBACK REMOVAL ".
  2. Remove the seat trim. Refer to "FRONT SEAT TRIM REMOVAL ".
  3. Remove the seat cushion bolts.
  4. Remove the seat track from the seat cushion.

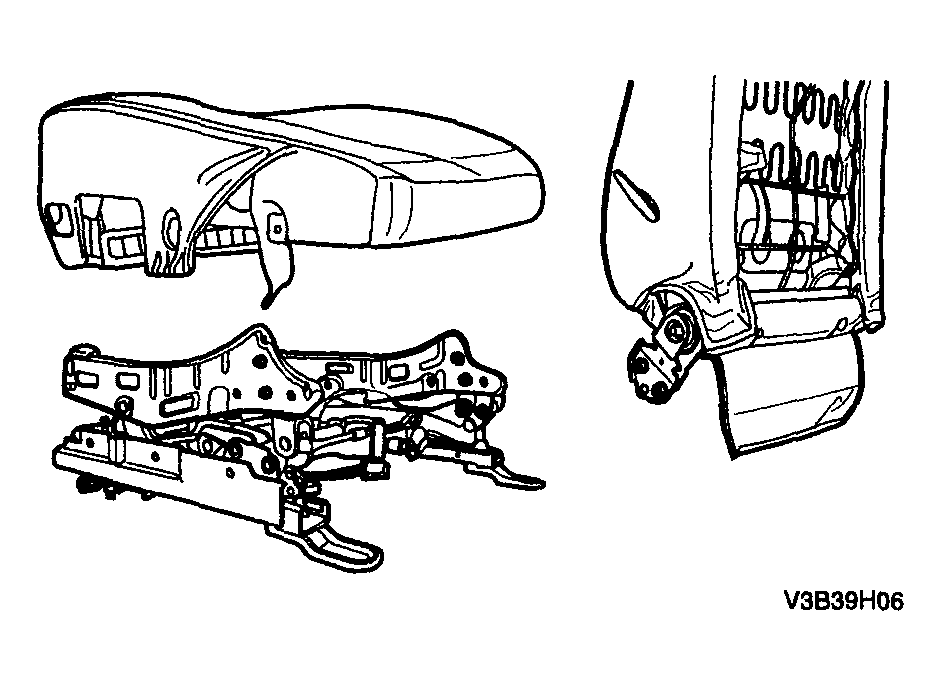

    Fig 1: Removing Seat Track From Seat Cushion
    G04096291Courtesy of SUZUKI OF AMERICA CORP.
