Front Bucket Seat Track Installation

  1. Install the cushion onto the seat track.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the seat track to the seat cushion with the seat cushion bolts.

    Tighten

    Tighten the front seat cushion bolts to 12 N.m (106 lb-in).

  3. Install the seat trim. Refer to "FRONT SEAT TRIM INSTALLATION ".
  4. Install the seatback. Refer to "FRONT SEATBACK INSTALLATION ".

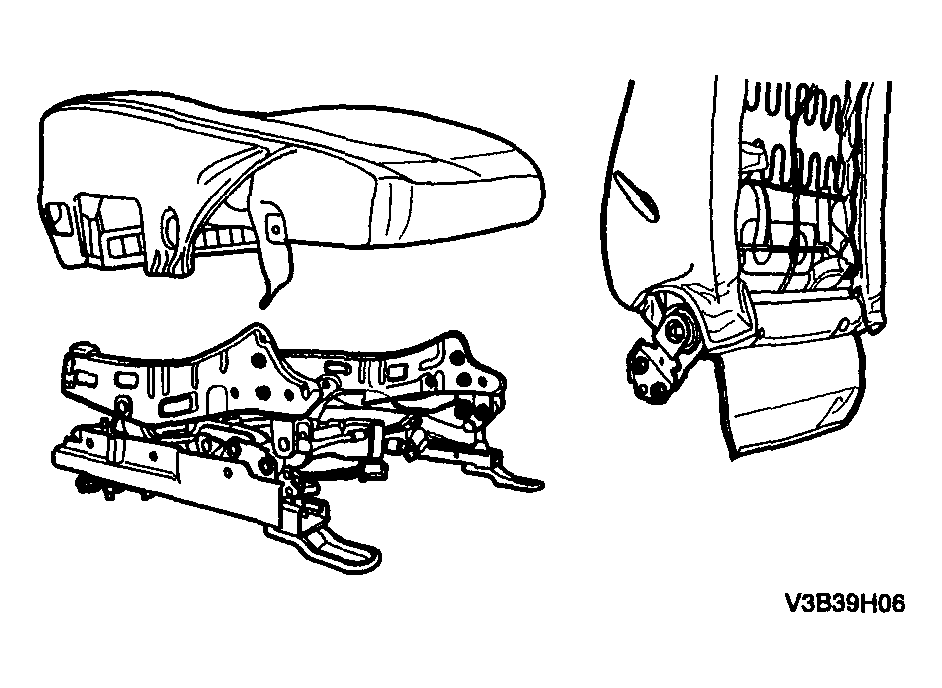

    Fig 1: Installing Seat Track To Seat Cushion With Seat Cushion Bolts
    G04096292Courtesy of SUZUKI OF AMERICA CORP.
