Front Seat Trim Installation
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

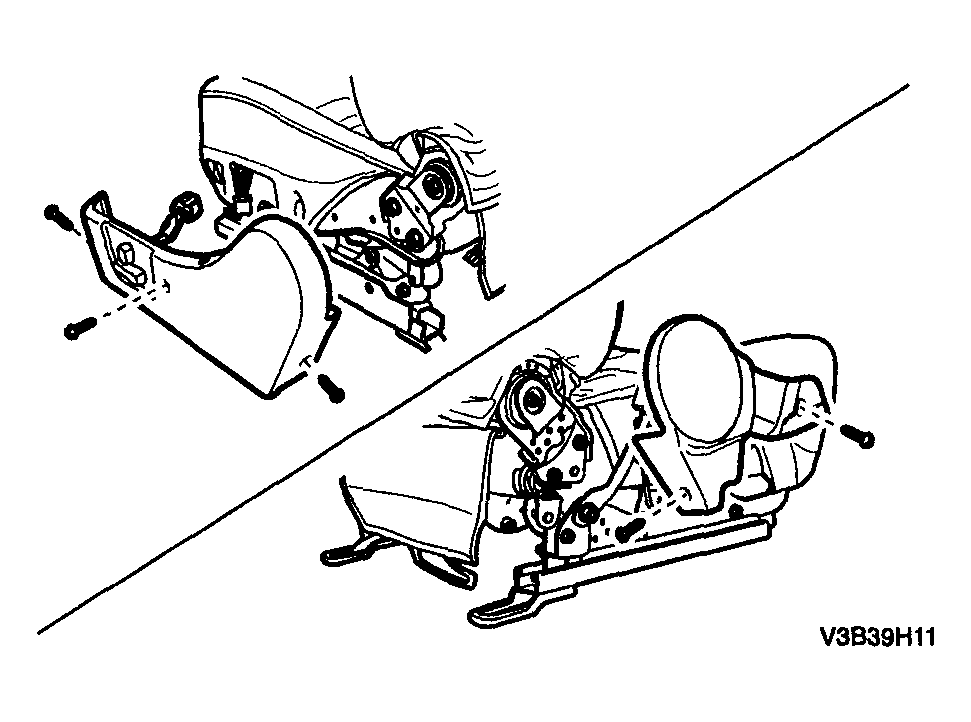

- Install the front seat trim with the screws.
Tighten
Tighten the front seat trim screws to 12 N.m (106 lb-in).
- Install the recliner lever with the screw.
Tighten
Tighten the seat recliner lever screw to 12 N.m (106 lb-in).
- Install the front bucket seat in the vehicle. Refer to "FRONT BUCKET SEAT INSTALLATION ".
