Inside Lock Rod Removal

Remove the door seal trim. Refer to "DOOR SEAL TRIM REMOVAL ".
Remove the inside door handle. Refer to "INSIDE DOOR HANDLE REMOVAL ".
Disconnect the inside lock rods from the lock.

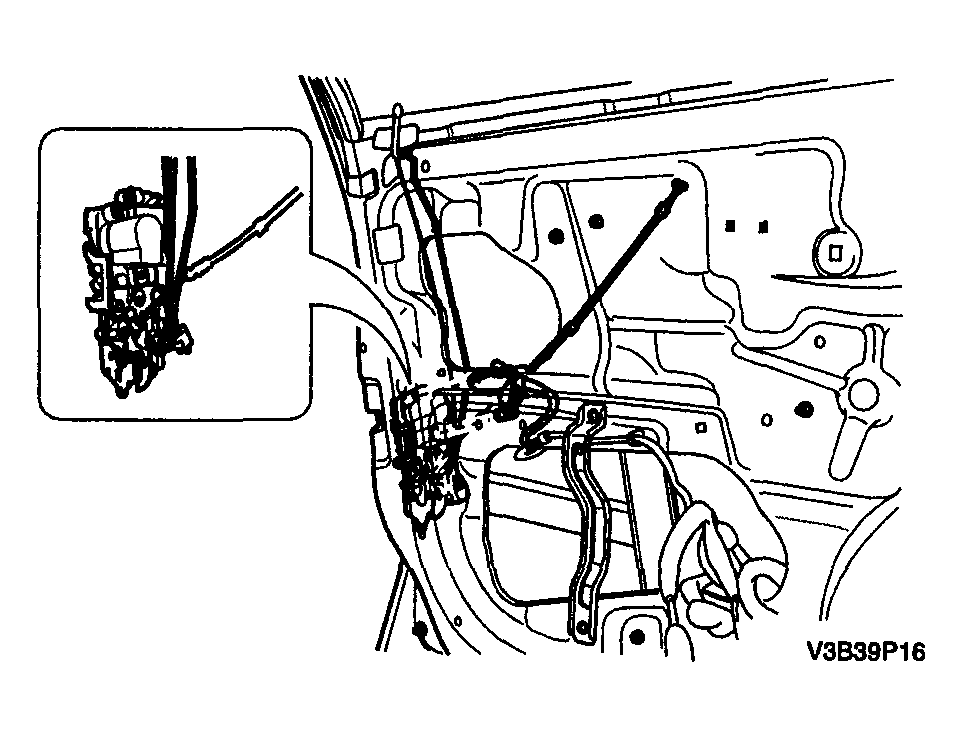

Fig 1: Disconnecting Inside Lock Rods From Lock
Courtesy of SUZUKI OF AMERICA CORP.
