Inside Door Handle Removal

  1. Remove the door trim. Refer to "DOOR SEAL TRIM REMOVAL ".
  2. Slide the door handle rearward and remove it from the door.
  3. Disconnect the inside door handle and the lock rods.

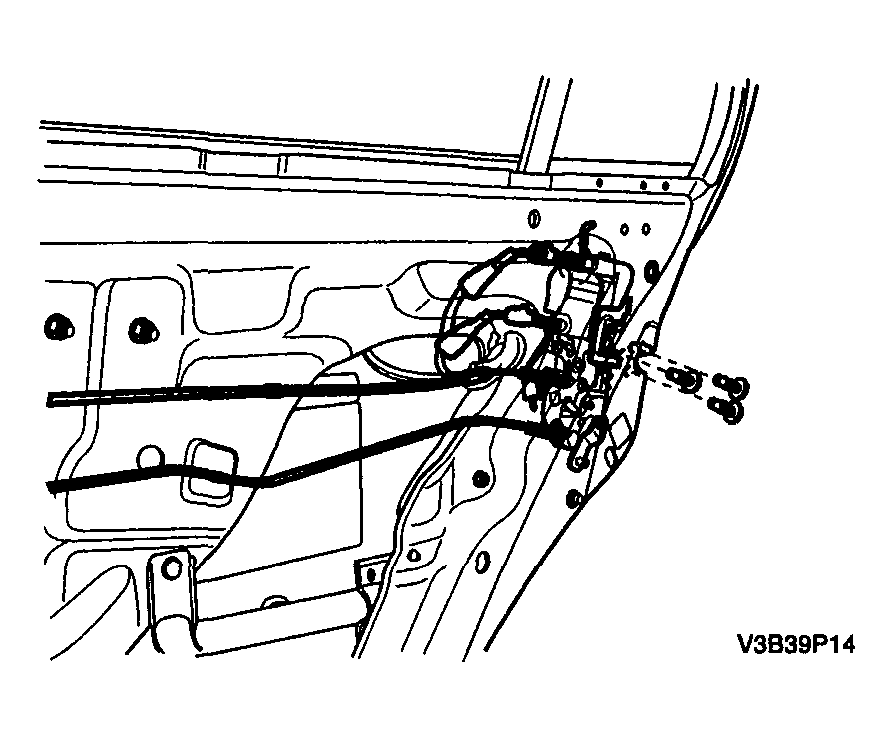

    Fig 1: Disconnecting Inside Door Handle And Lock Rods
    G04096260Courtesy of SUZUKI OF AMERICA CORP.
