Ignition Switch Keyhole Lamp Installation

Install the ignitions switch keyhole lamp and the bulb.
Tighten

Tighten the ignition switch keyhole lamp screw to 1.5 N.m(13lb-in).

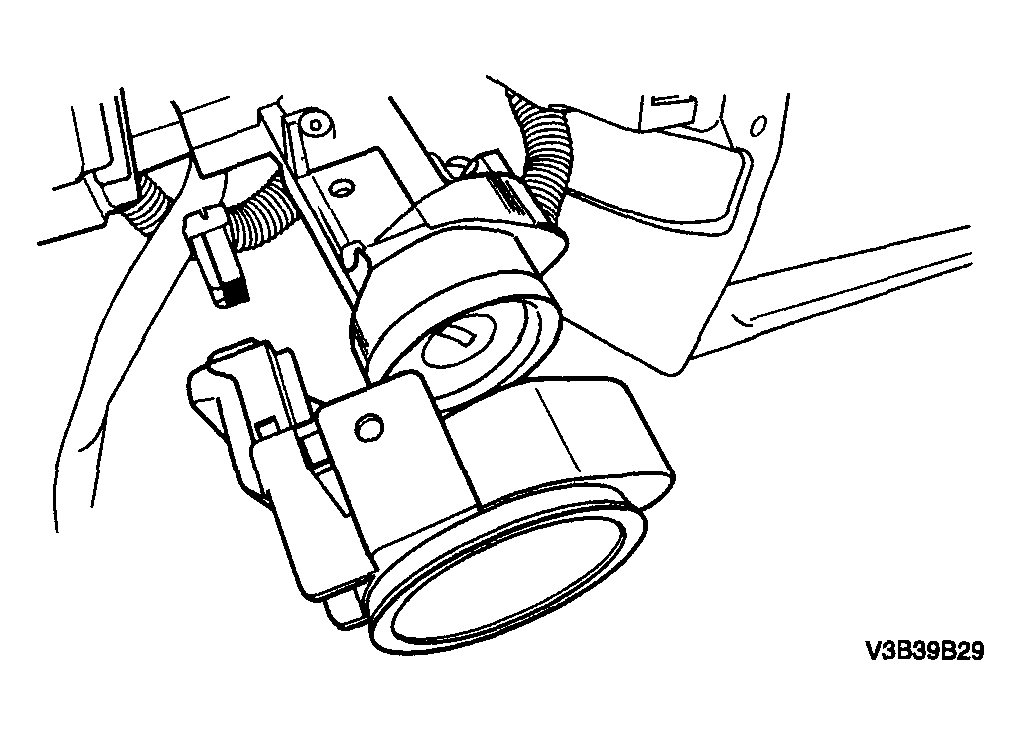

Fig 1: Installing Ignitions Switch Keyhole Lamp And Bulb
Courtesy of SUZUKI OF AMERICA CORP.
Raise the steering column.
Connect the steering column electrical connector.
Install the nuts and the bolts securing the steering column.
Tighten

Tighten the steering column nuts to 22 N-m (16 lb-ft).

Tighten the steering column bolts to 22 N.m (16 lb-ft).
Install the steering column upper, lower cover.

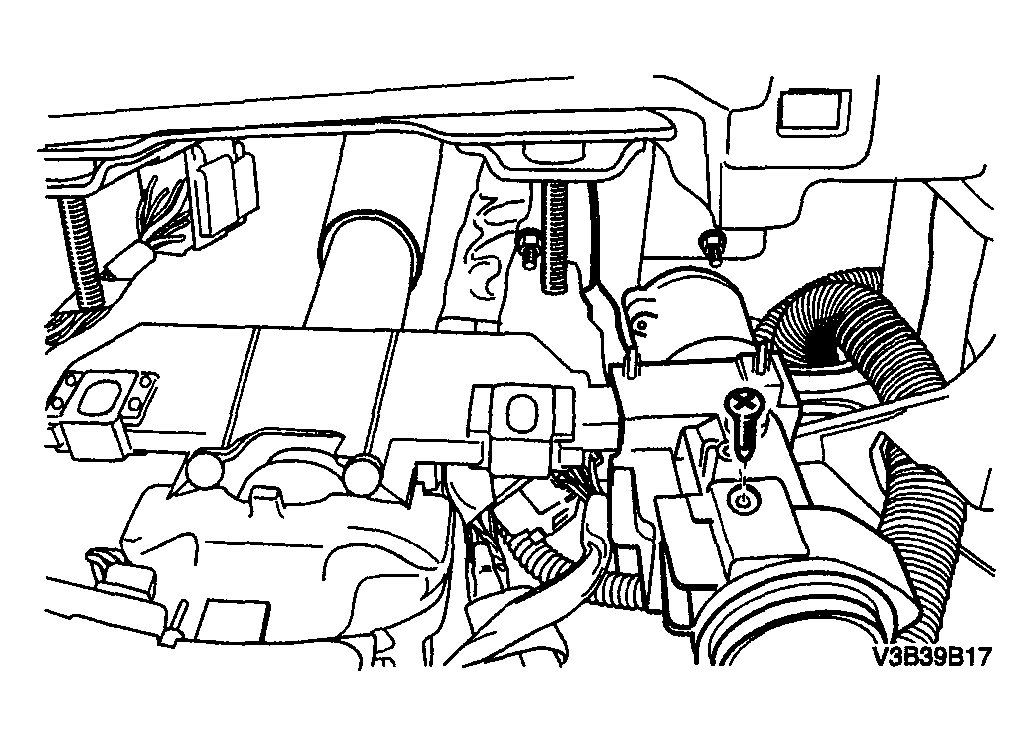

Fig 2: Installing Steering Column Upper, Lower Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL INSTALLATION ".
Install the knee bolster. Refer to "DRIVER'S SIDE KNEE BOLSTER INSTALLATION ".
Connect the negative battery cable.

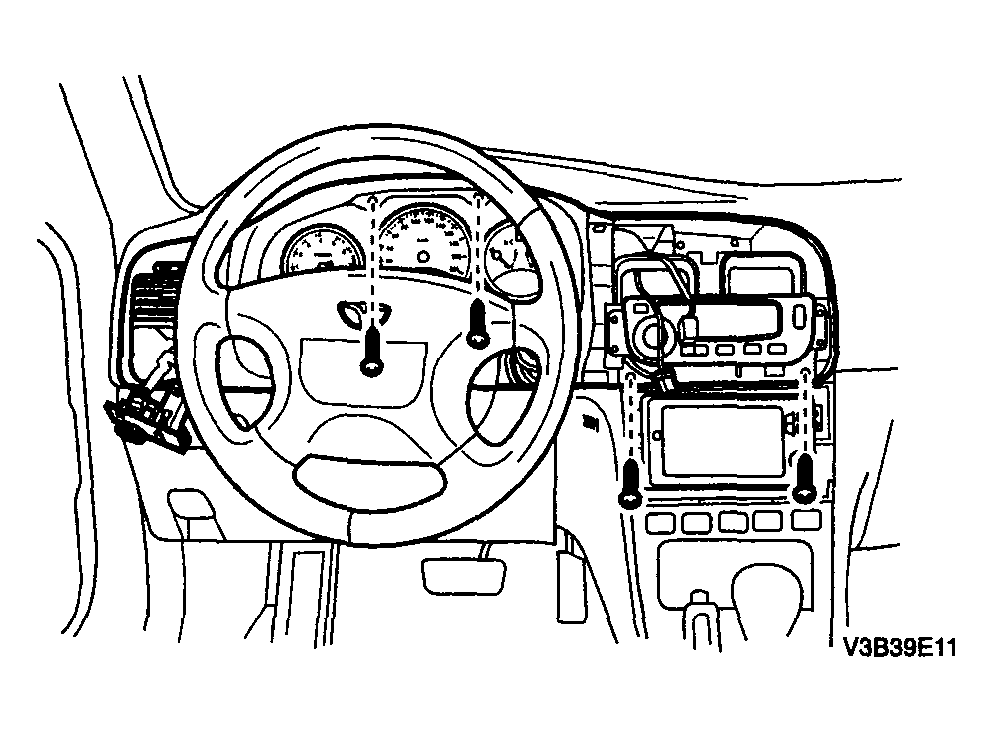

Fig 3: Installing Instrument Cluster Trim Panel
Courtesy of SUZUKI OF AMERICA CORP.
