Tightening Torque Specifications

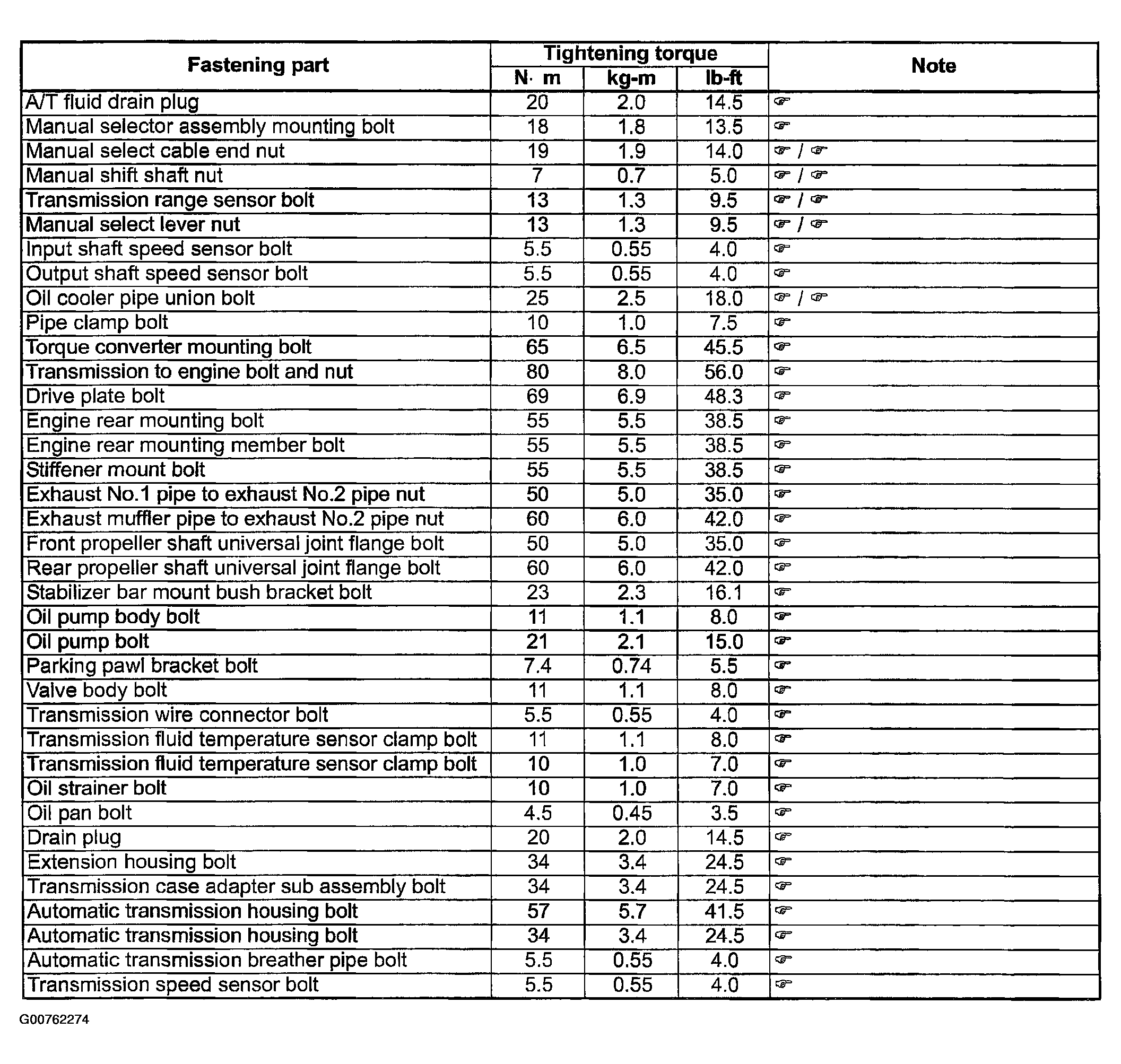

Fig 1: Tightening Torque Specifications Chart
G00762274Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following.
  1. Oil Cooler Hoses Replacement
  2. Manual Selector Assembly Components
  3. Select Cable Component
  4. Automatic Transmission Unit Components
  5. Oil Pump Assembly Components
  6. Valve Body Assembly Components
