Automatic Transmission Unit Components

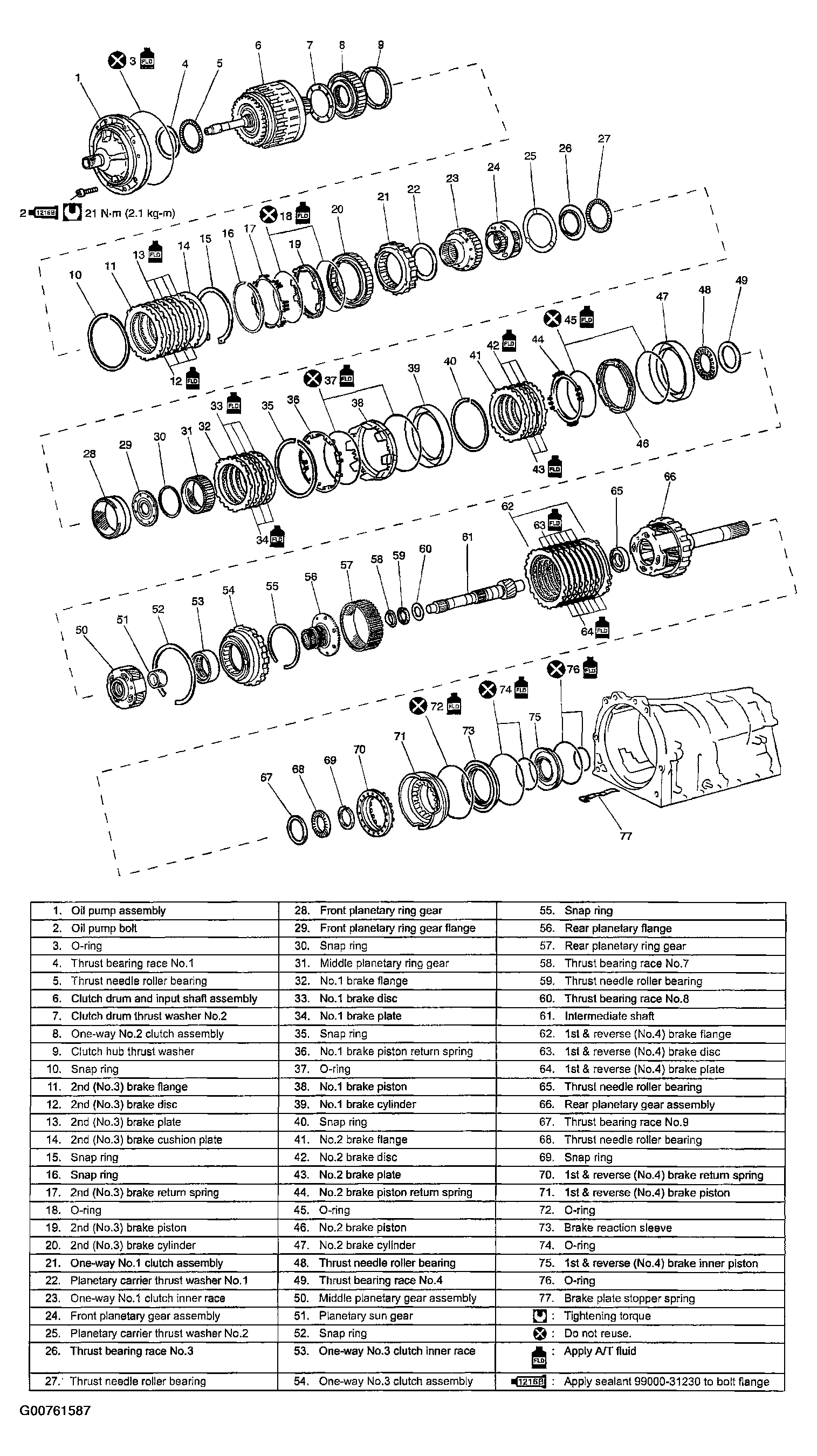

Fig 1: Exploded View Of Automatic Transmission Unit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
