Tightening Torque Specifications

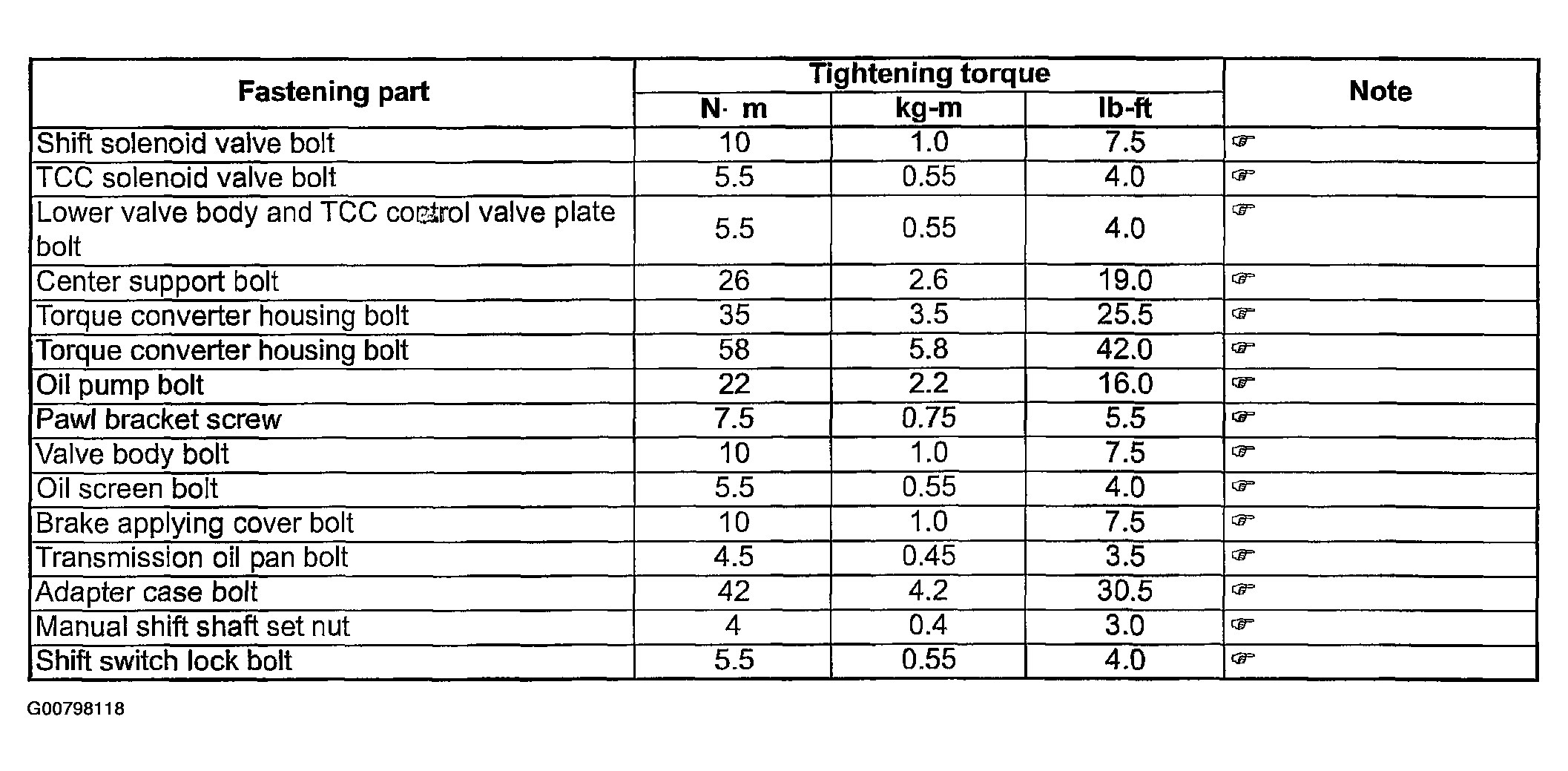

Fig 1: Tightening Torque Specifications (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

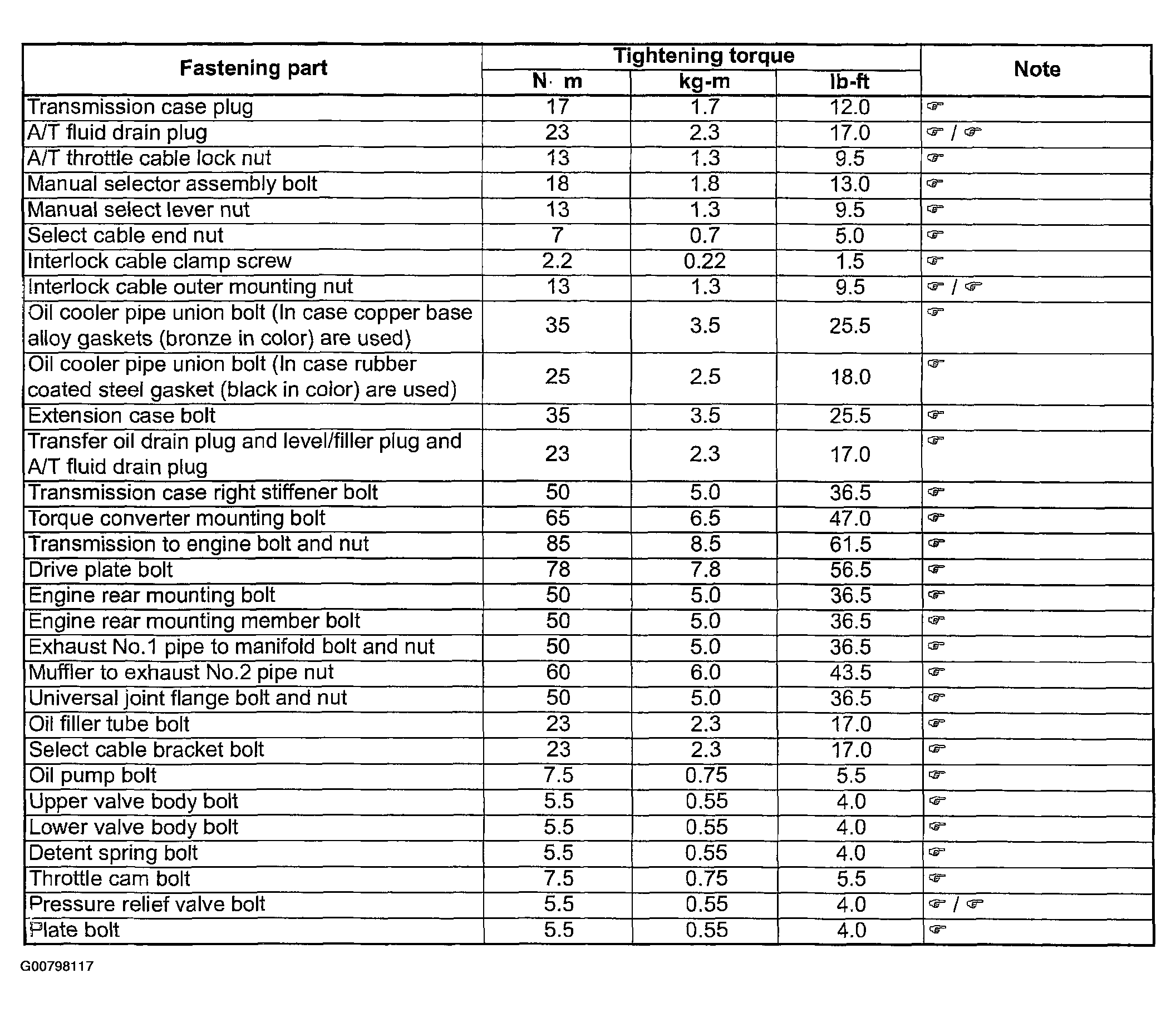

Fig 2: Tightening Torque Specifications (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Reference:

For the tightening torque of fastener not specified in this section, refer to appropriate article .
