Select Cable Components

Tightening torque

Manual select lever nut (a): 13 N.m (1.3 kg-m, 9.5 lb-ft)

Select cable end nut (b): 7 N.m (0.7 kg-m, 5.0 lb-ft)

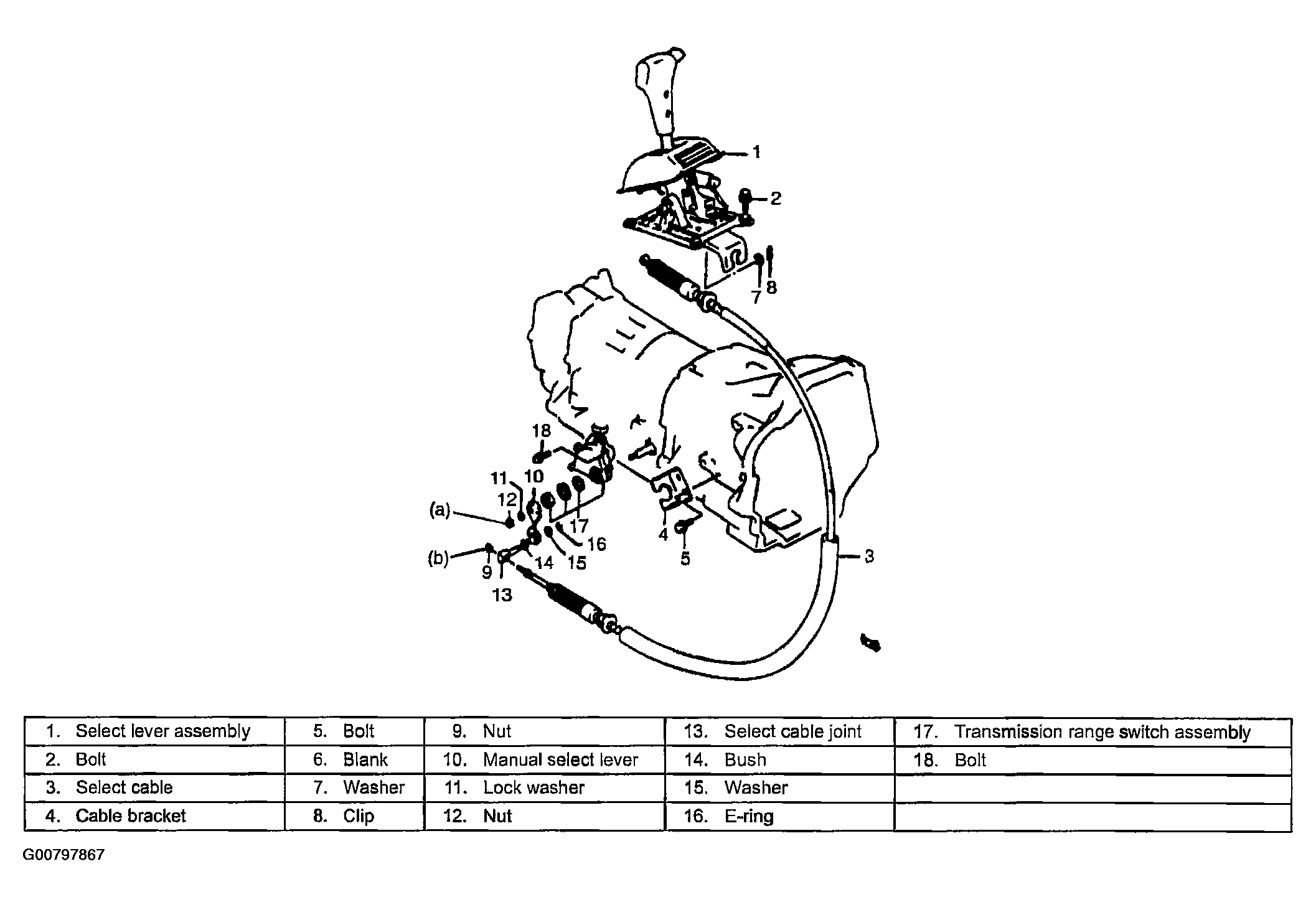

Fig 1: Identifying Select Cable Components

Courtesy of SUZUKI OF AMERICA CORP.
