Table of A/T System Component Operation

WARNING: This page is about a different variant/trim than selected.

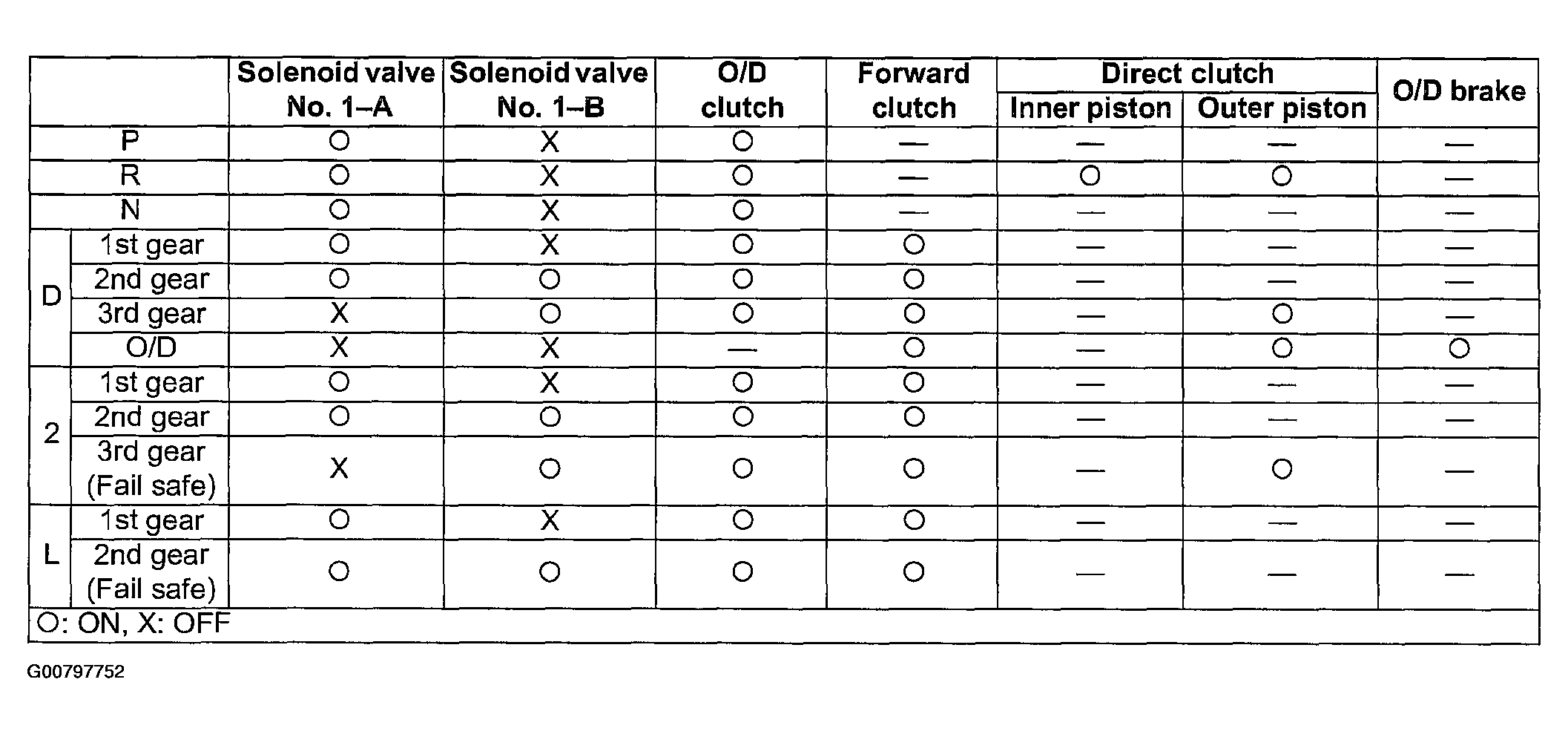

Fig 1: A/T System Component Operation Table (1 Of 2)
G00797752Courtesy of SUZUKI OF AMERICA CORP.

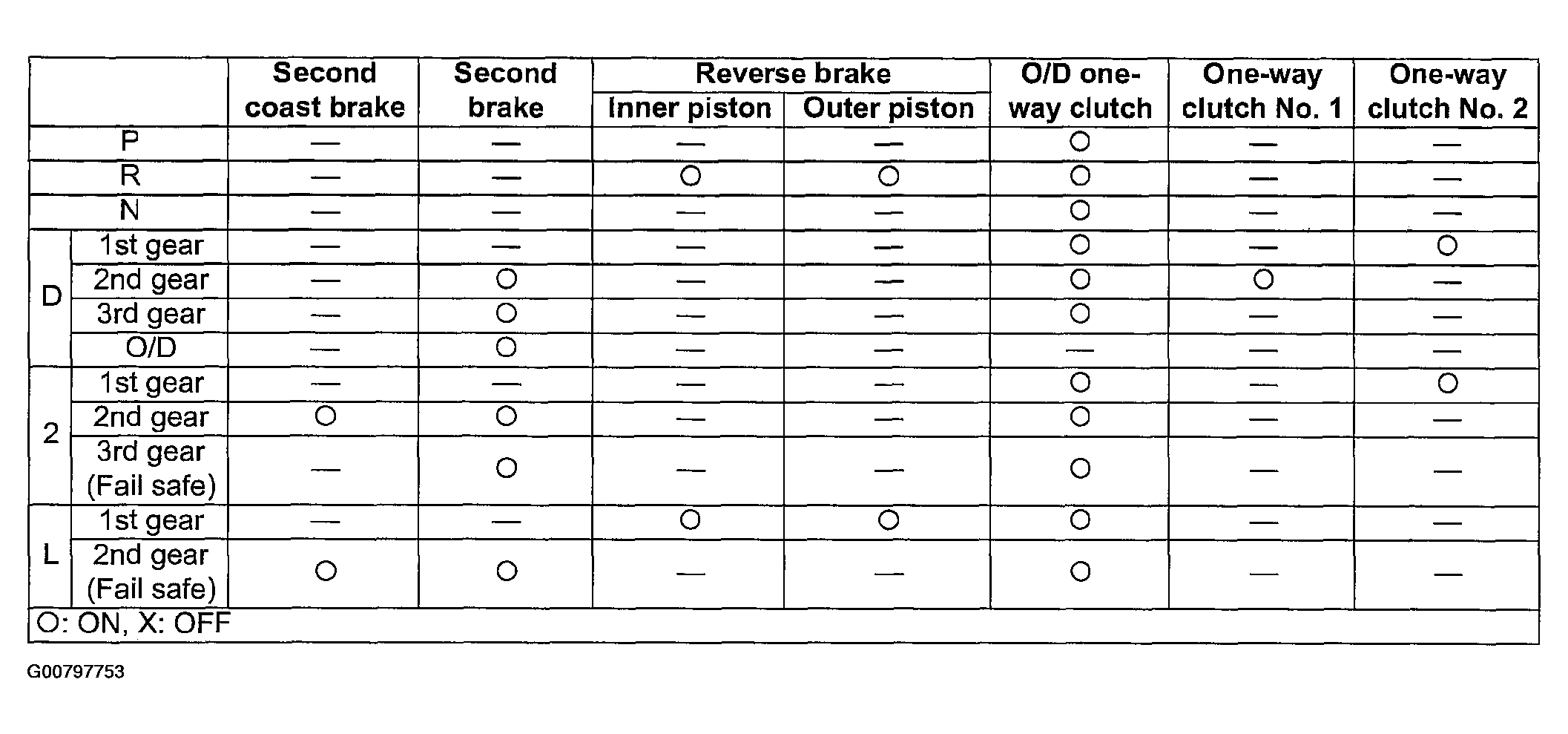

Fig 2: A/T System Component Operation Table (2 Of 2)
G00797753Courtesy of SUZUKI OF AMERICA CORP.
