A/T System Check: Notes

WARNING: This page is about a different variant/trim than selected.

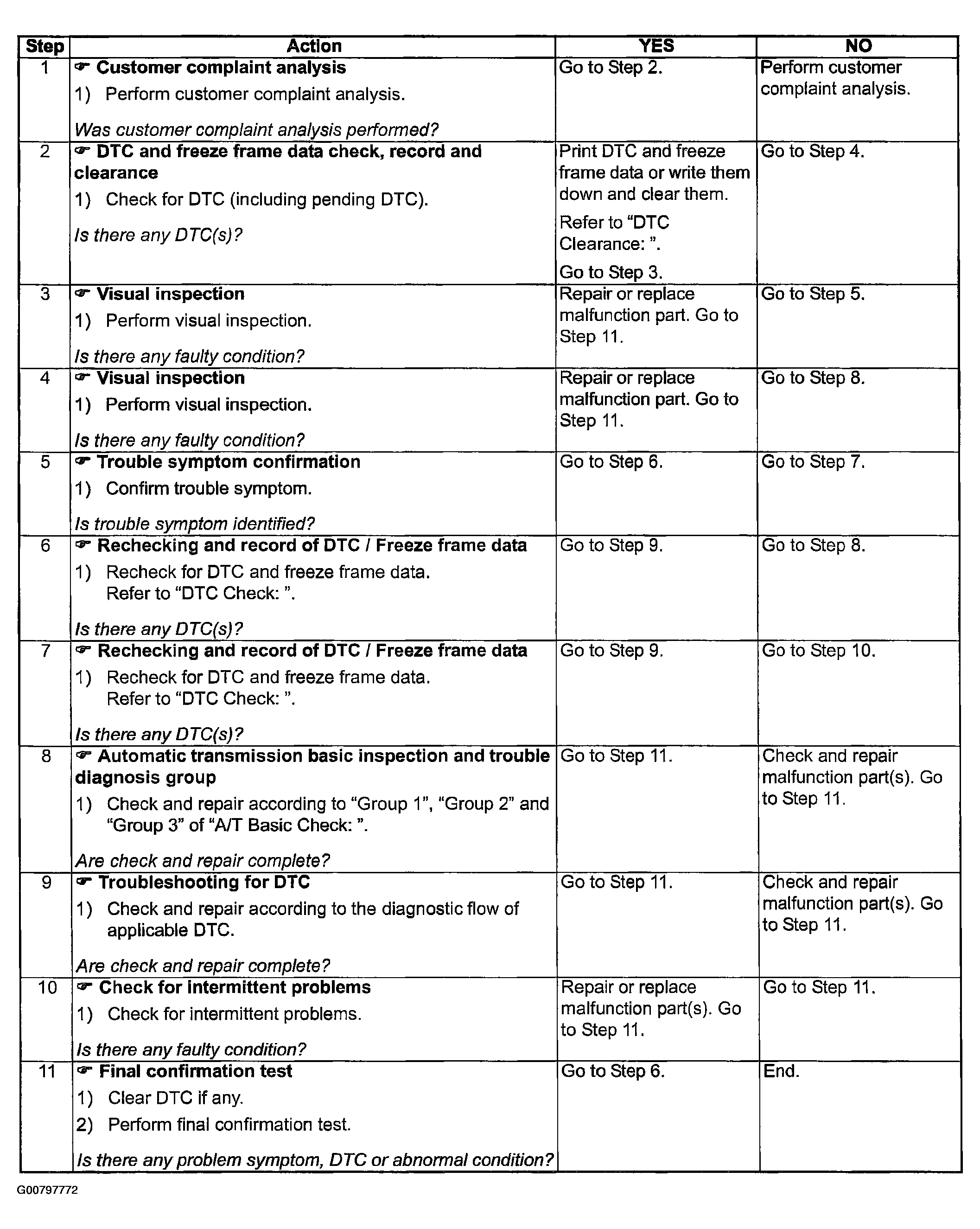

Fig 1: A/T System Diagnostic Chart
G00797772Courtesy of SUZUKI OF AMERICA CORP.
