Rear CROSSMEMBER: Installation

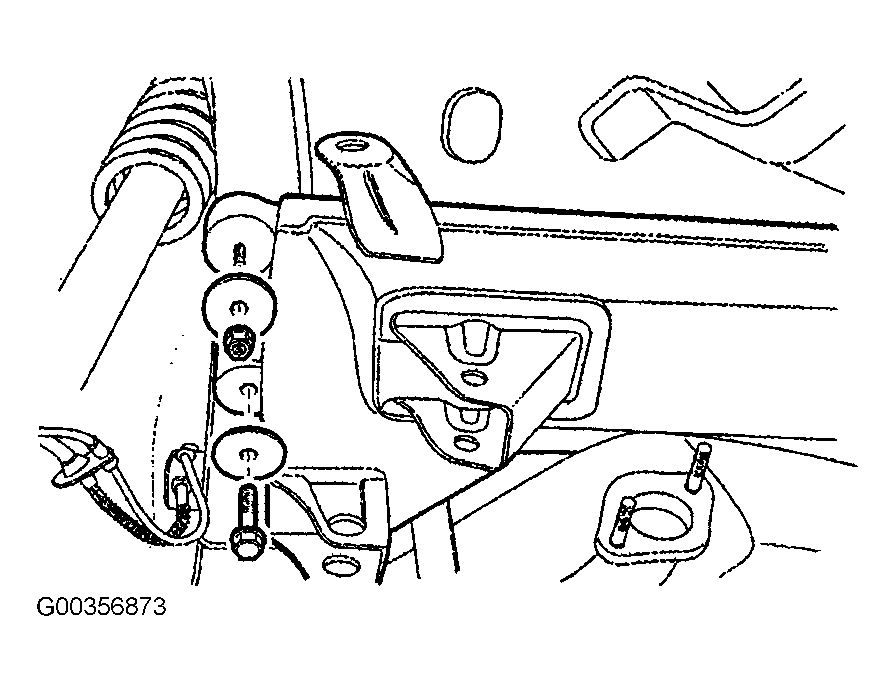

- Install the rear crossmember with bolts and nuts. See Figure . Tighten the rear crossmember bolts and nuts to 81 Ft. Lbs. (110 N.m).
- Install remaining components. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
