Torque Specifications

NOTE: Wheel lug nut torque specification is 81 Ft. Lbs. (110 N.m).

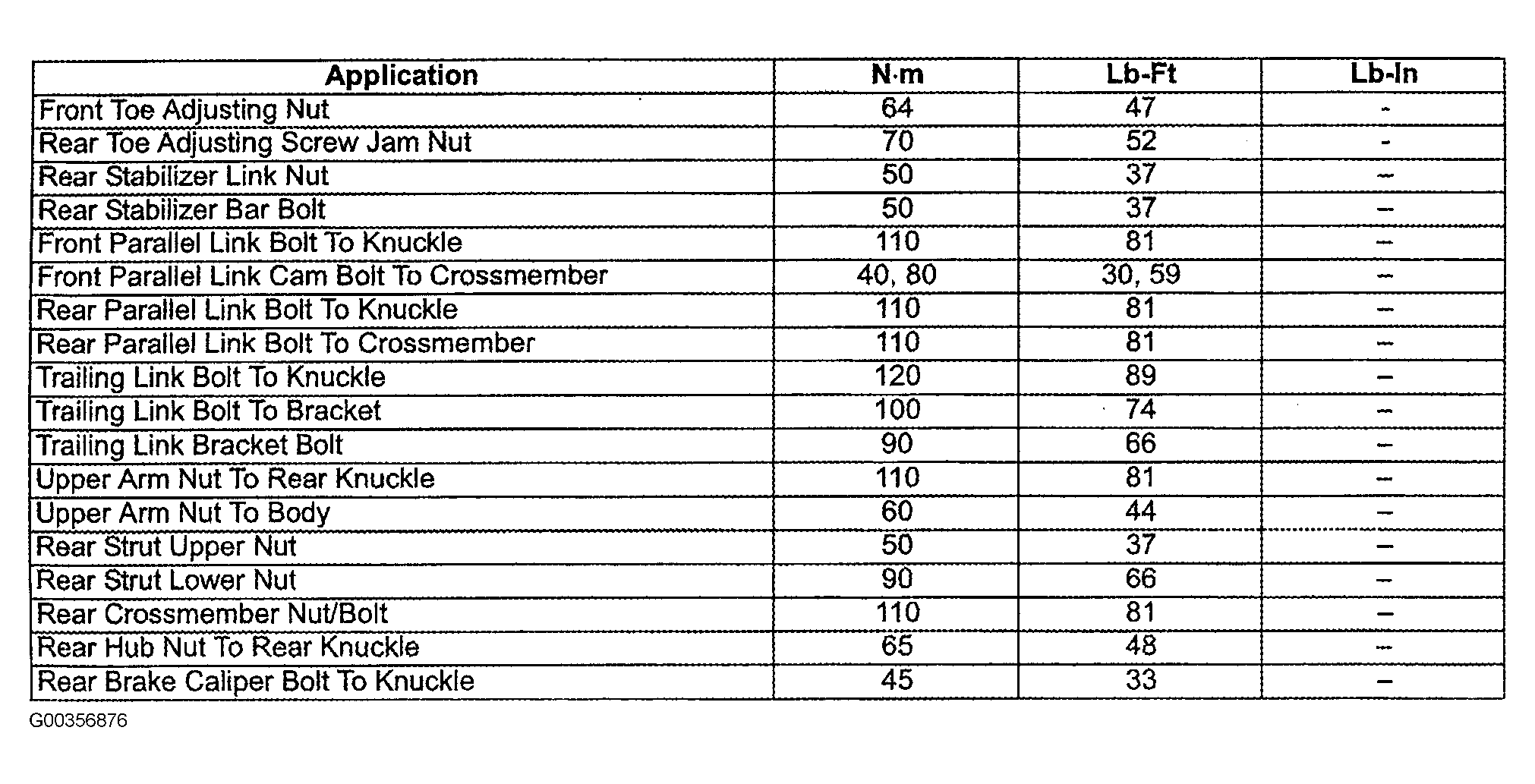

Fig 1: Rear Suspension Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
