Instrument Panel Removal

  1. Disconnect the negative battery cable.
  2. Remove the floor console. Refer to FLOOR CONSOLE REMOVAL .
  3. Remove the sun sensor. Refer to SUN SENSOR REMOVAL .
  4. Remove the tweeter speakers and the stereo cassette AM/FM radio. Refer to TWEETER SPEAKERS REMOVAL and STEREO CASSETTE AM/FM RADIO REMOVAL .
  5. Remove the instrument cluster dimmer switch assembly. Refer to Instrument Cluster Dimmer / Headlamp Leveling Switch Removal  .
  6. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Removal  .
  7. Remove the automatic temperature controls assembly. Refer to AUTOMATIC TEMPERATURE CONTROL ASSEMBLY REMOVAL .
  8. Remove the instrument cluster. Refer to Instrument Cluster Removal  .
  9. Remove the kick panels. Refer to KICK PANEL REMOVAL .
  10. Remove the glove box. Refer to Glove Box Removal  .
  11. Remove the screws and the glove box housing.
  12. Disconnect the glove box housing electrical connectors.
  13. Remove the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER REMOVAL .
    Fig 1: Disconnecting Glove Box Housing Electrical Connectors
    G02996857Courtesy of SUZUKI OF AMERICA CORP.
  14. Remove the screws and the instrument panel side covers.
  15. Remove the screw and instrument panel fuse block.

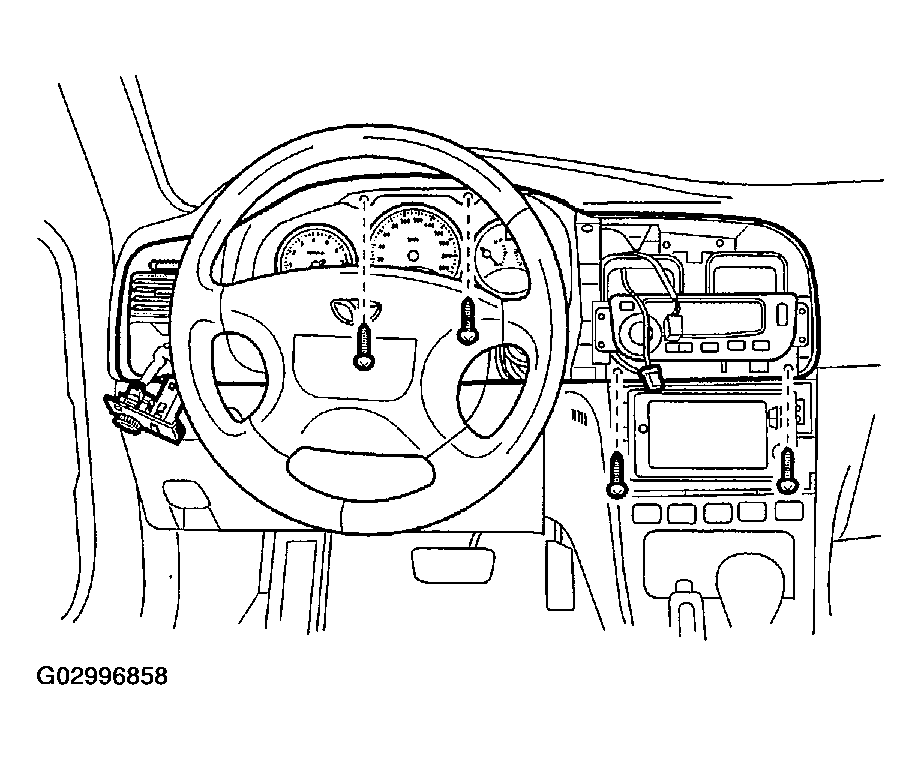

    Fig 2: Removing Instrument Panel Side Covers
    G02996858Courtesy of SUZUKI OF AMERICA CORP.
  16. Remove the nuts and the bolts securing the steering column.
  17. Disconnect the steering column electrical connector.
  18. Lower the steering column.

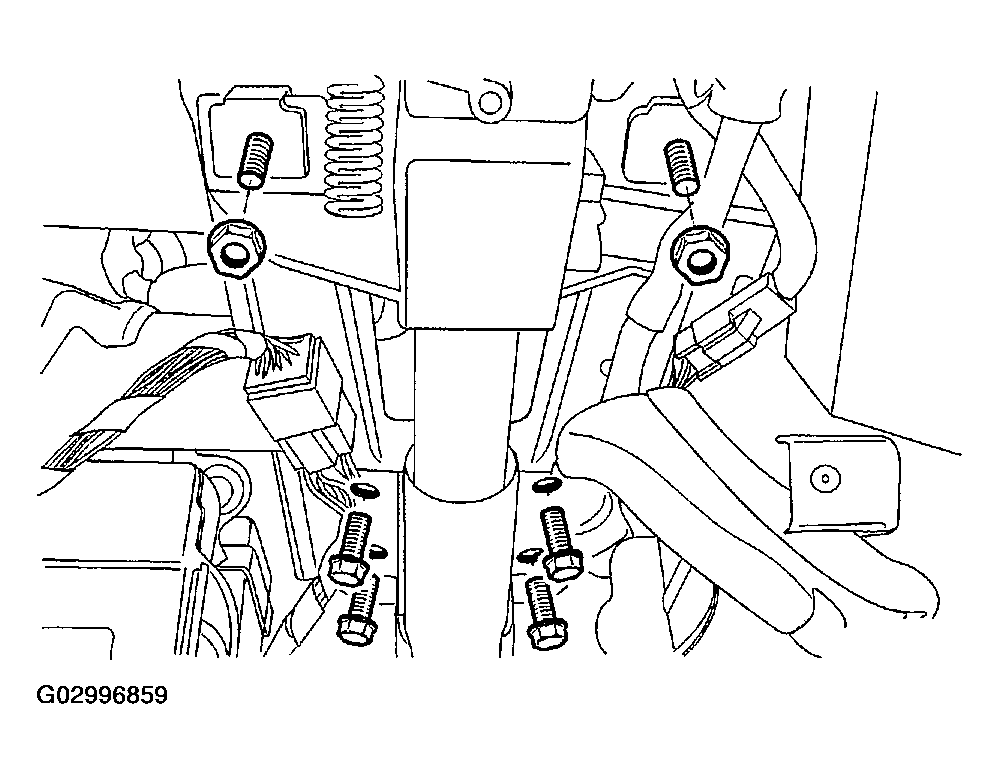

    Fig 3: Removing Nuts/Bolts Securing Steering Column
    G02996859Courtesy of SUZUKI OF AMERICA CORP.
  19. Remove the instrument panel bolts below the windshield.

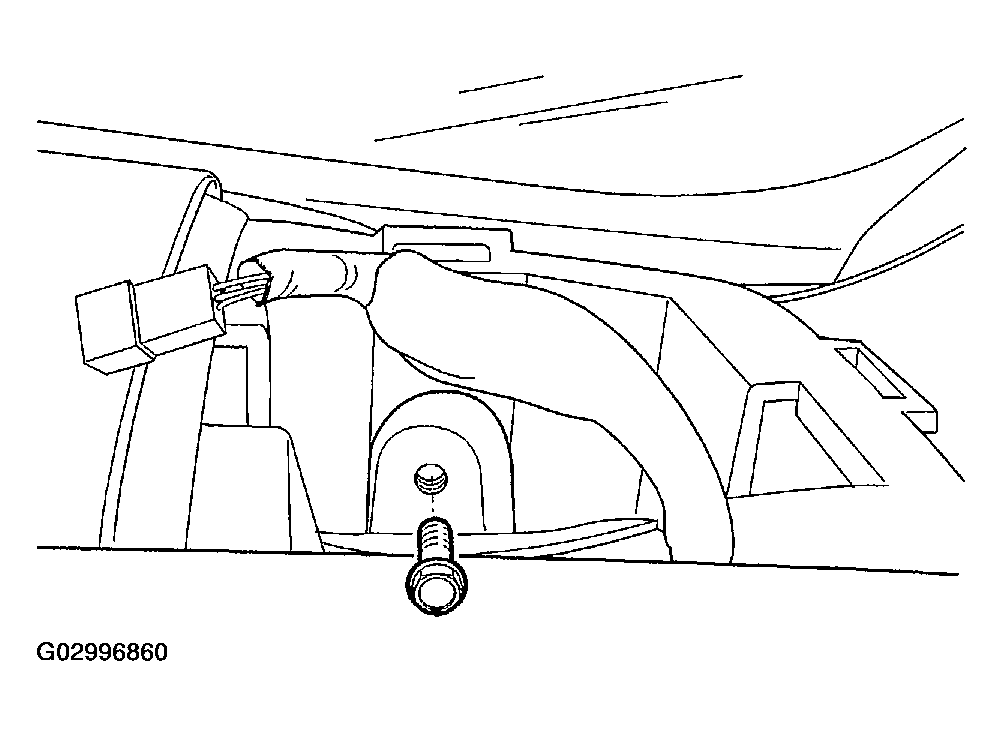

    Fig 4: Removing Instrument Panel Bolts Below Windshield
    G02996860Courtesy of SUZUKI OF AMERICA CORP.
  20. Remove the instrument panel bolts behind the glove box brace.

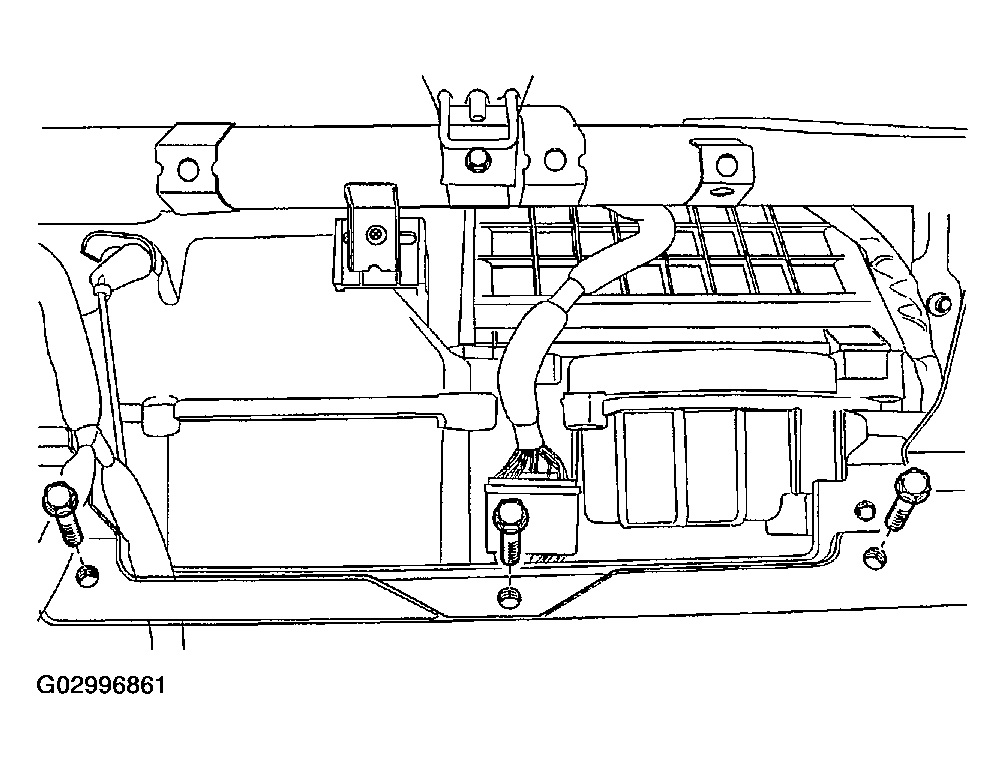

    Fig 5: Removing Instrument Panel Bolts Behind Glove Box Brace
    G02996861Courtesy of SUZUKI OF AMERICA CORP.
  21. Remove the fixing screws securing the instrument panel.

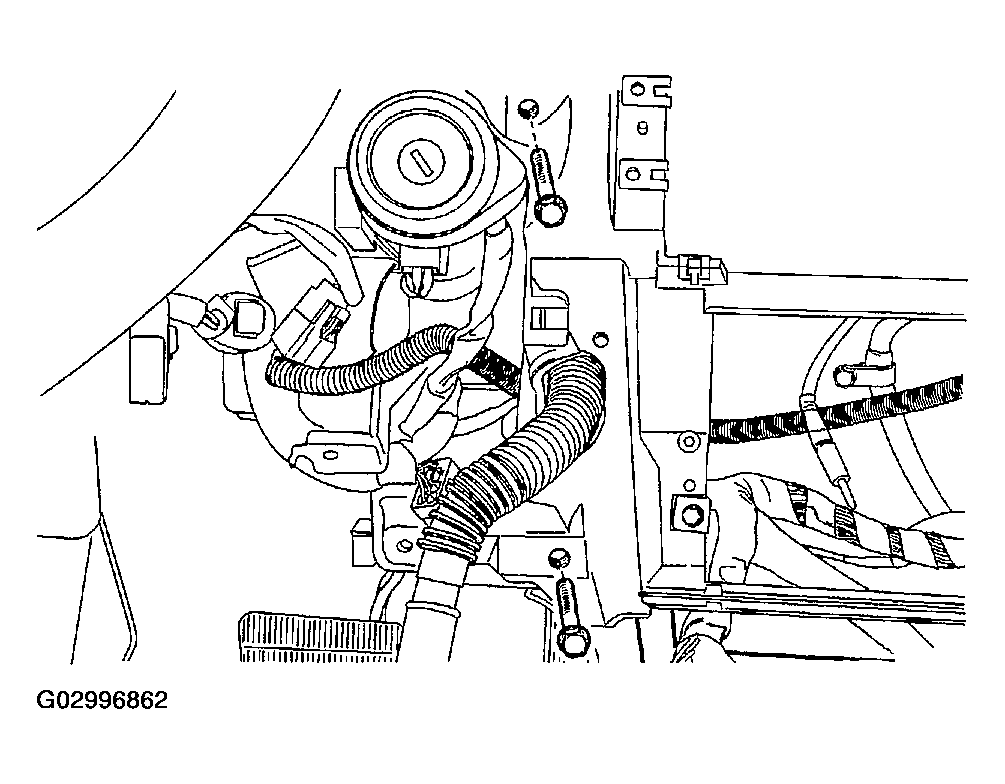

    Fig 6: Removing Fixing Screws Securing Instrument Panel
    G02996862Courtesy of SUZUKI OF AMERICA CORP.
  22. Remove the nuts securing the sides of the instrument panel to the body.
  23. Disconnect the instrument panel electrical connectors.
  24. Remove the instrument panel.

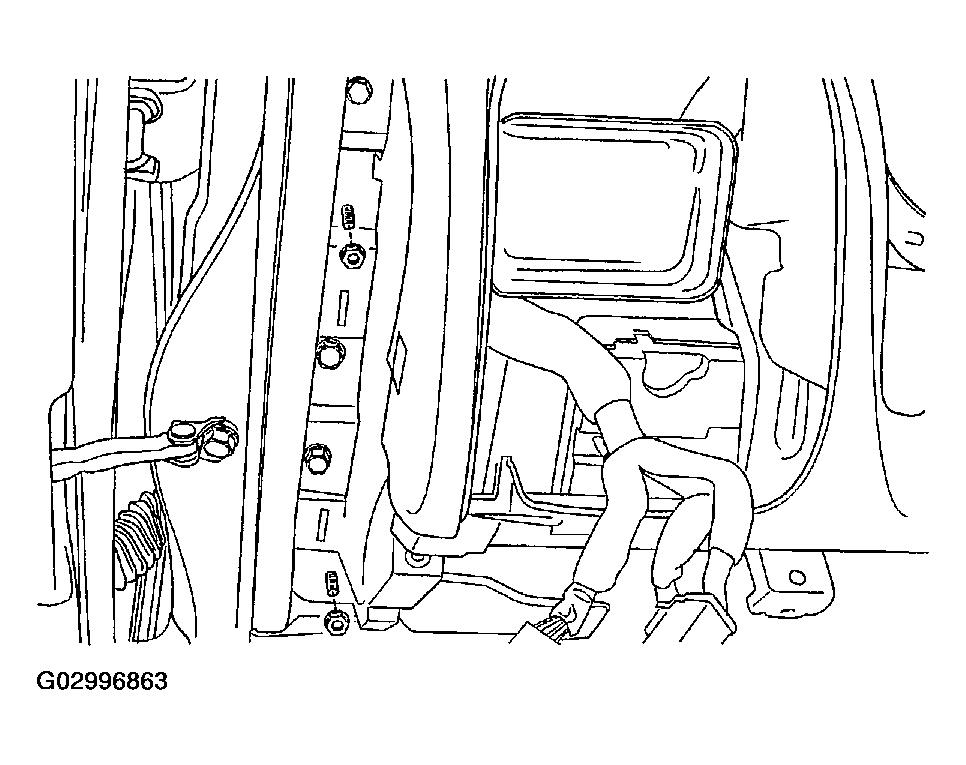

Fig 7: Disconnecting Instrument Panel Electrical Connectors
G02996863Courtesy of SUZUKI OF AMERICA CORP.
