Floor Console Removal

Disconnect the negative battery cable.
Remove the glove box, instrument panel lower cover, cigar lighter trim panel and stereo cassette player.
Remove the console cover.

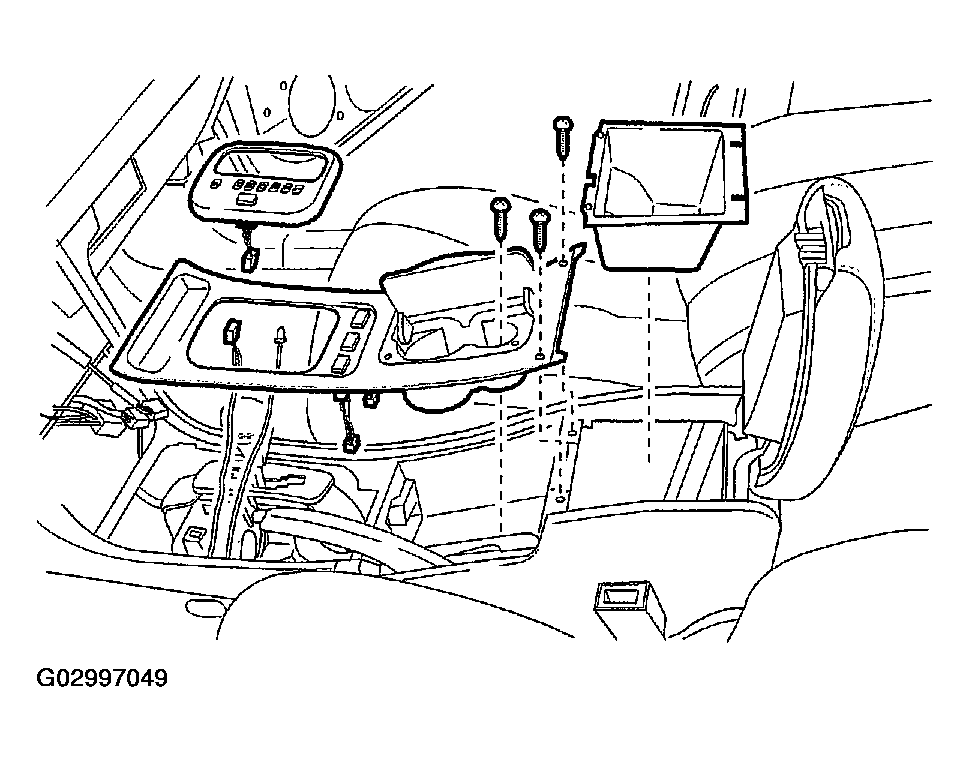

Fig 1: Removing Console Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screw from the rear portion of the floor console.

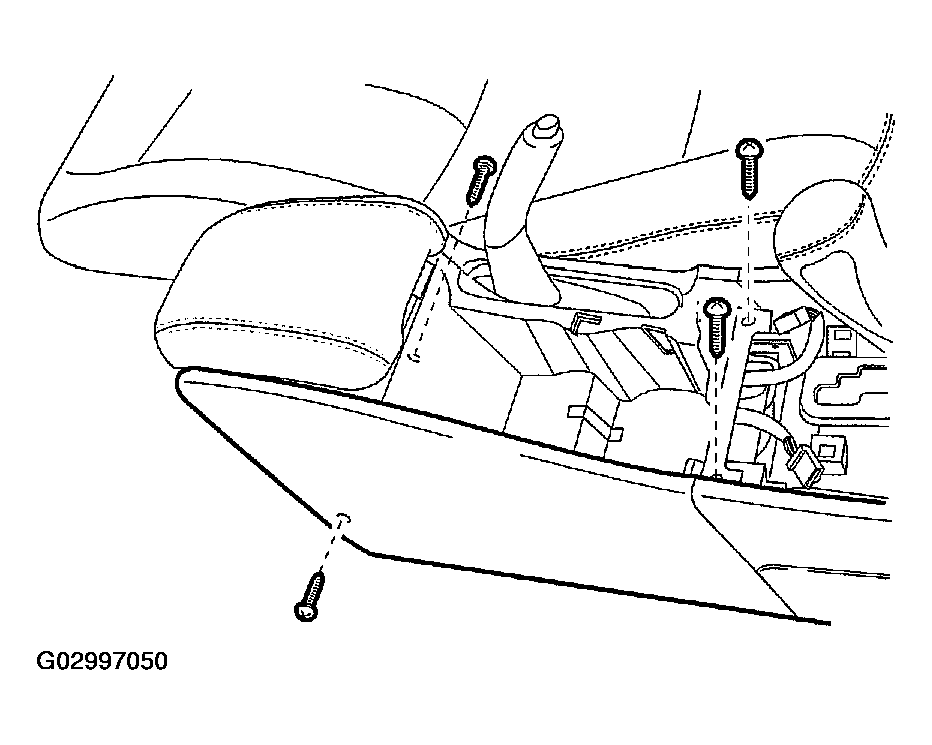

Fig 2: Removing Screw From Rear Portion Of Floor Console
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screws from the front portion of the floor console.
Remove the floor console.
Disconnect the electrical connectors.

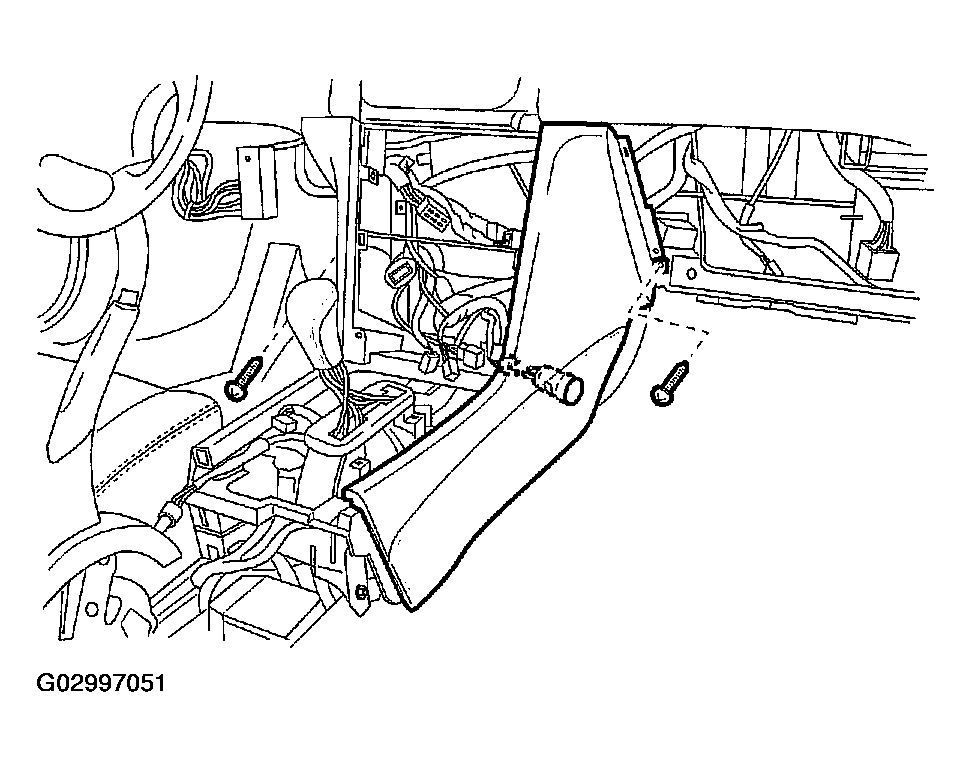

Fig 3: Removing Screws From Front Portion Of Floor Console

Courtesy of SUZUKI OF AMERICA CORP.
