Digital Clock Installation

  1. Install the digital clock with the screws.
    1. Tighten the digital clock screws to 2.5 N.m (22 lb-in).
  2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation  .

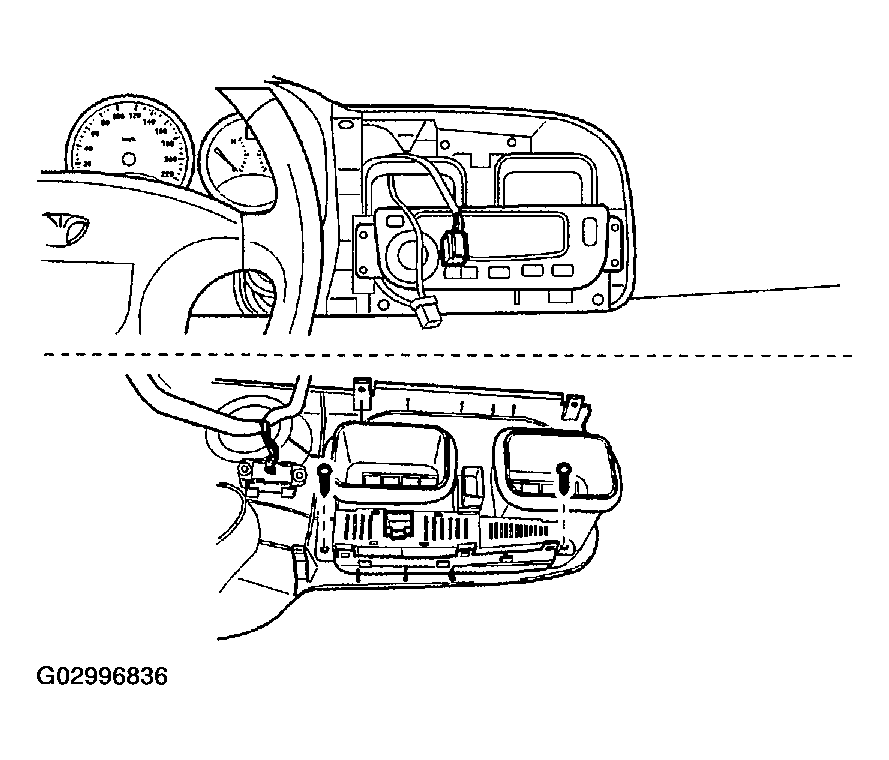

Fig 1: Installing Digital Clock
G02996836Courtesy of SUZUKI OF AMERICA CORP.
