Split Rear Seatback Hinge Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the seatback outer hinge with the bolts.
1. Tighten the rear seat hinge bolts to 12 N.m (106 lb-in).

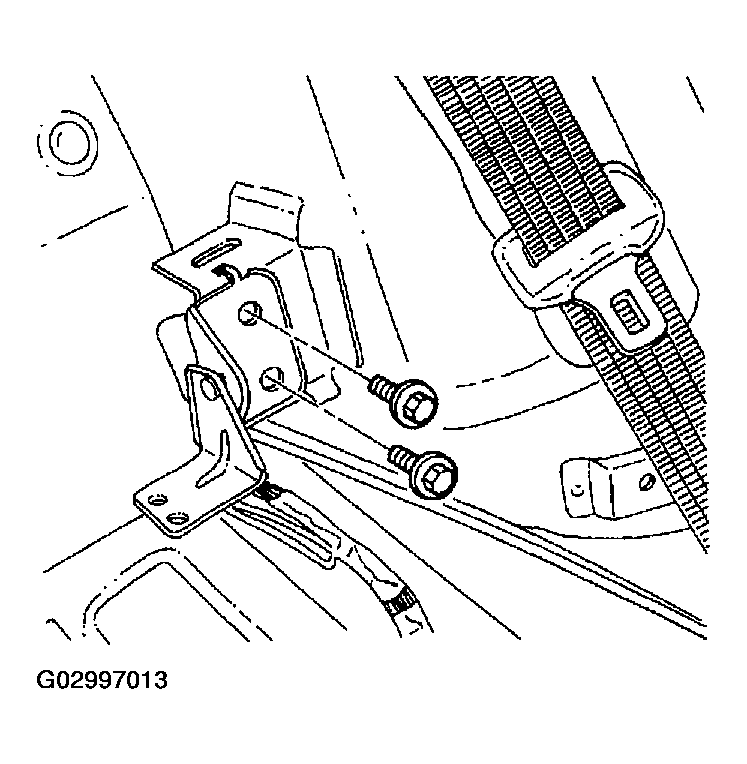

Fig 1: Installing Seatback Outer Hinge
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear seat side bolster cushion. Refer to Rear Seat Side Bolster Cushion Installation .
Install the seatback center hinge with the bolts.
1. Tighten the rear seat hinge bolts to 12 N.m (106 lb-in).
Install the rear seatback and the rear seat cushion. Refer to Split Rear Seatback Installation and Rear Seat Cushion Installation .

Fig 2: Installing Seatback Center Hinge

Courtesy of SUZUKI OF AMERICA CORP.
