Split Rear Seatback Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the seatback to the hinges with the bolts and the nuts.
1. Tighten the rear seatback bolts to 25 N.m (18 lb-ft).
2. Tighten the rear seatback nuts to 25 N.m (18 lb-ft).
Install the rear seatback backside cover with the retaining clips.
Raise and secure the rear seatbacks in the upright 5 position.

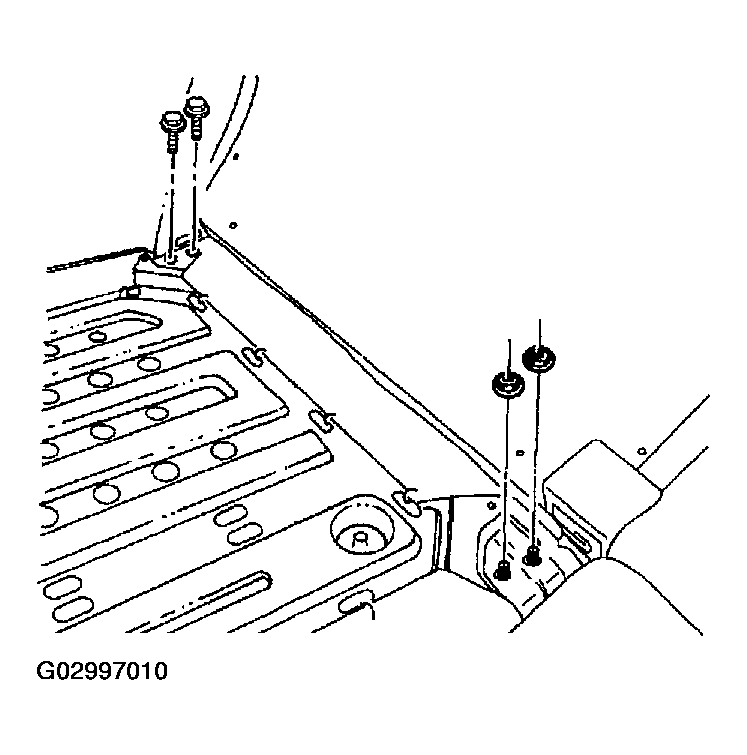

Fig 1: Installing Rear Seatback Backside Cover

Courtesy of SUZUKI OF AMERICA CORP.
