Disassembly Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

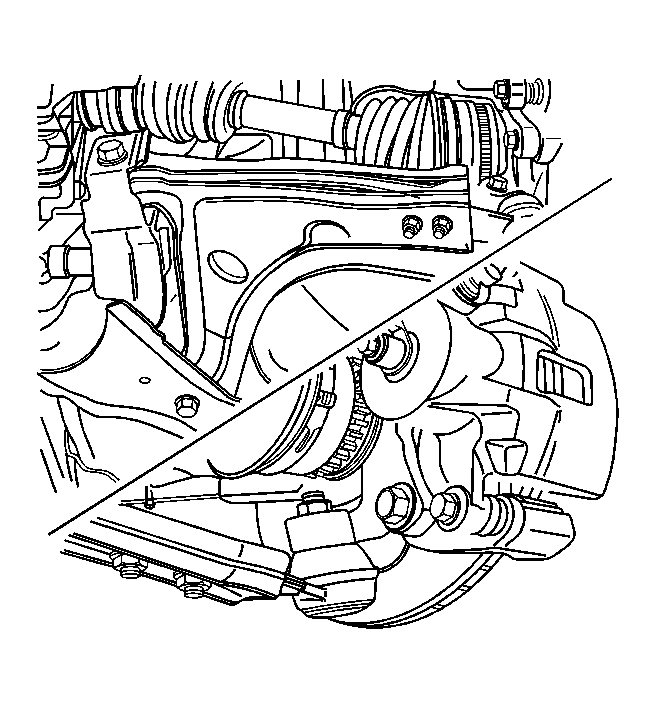

    Fig 1: Control Arm Rear Bushing
    GM1241990Courtesy of GENERAL MOTORS CORP.
  1. Remove the control arm. Refer to Control Arm Replacement .
  2. Press off the rear bushing using a press, the KM-158  , and the KM-307-B  . See Special Tools .
    3. Fig 2: Front Bushing, KM-508-A & KM-158
    GM1241991Courtesy of GENERAL MOTORS CORP.
  3. Press out the front bushing using the KM-508-A  (2) and KM-158  (1). See Special Tools .
