Special Tools

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools

Illustration Tool Number/ Description

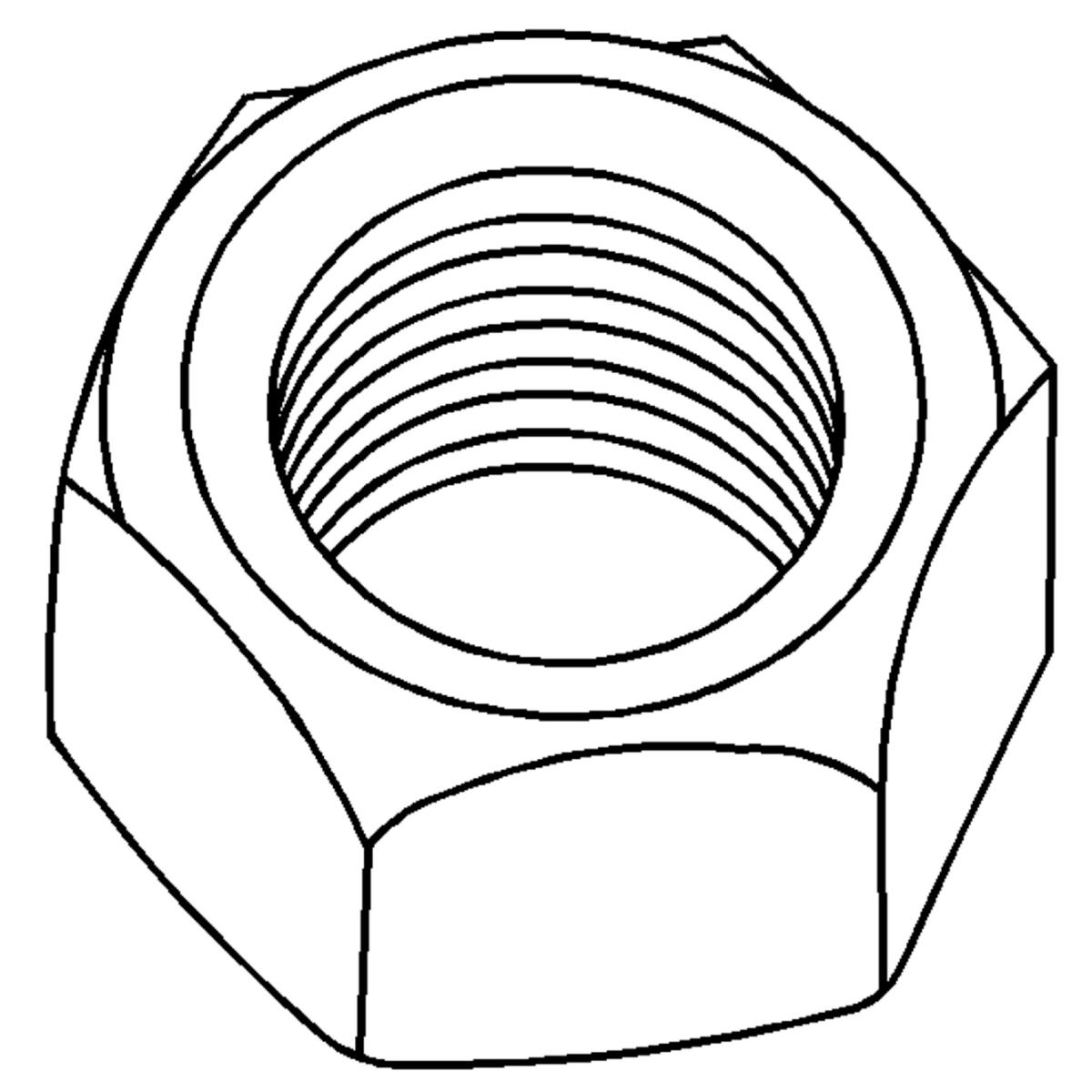

GM1256950Courtesy of GENERAL MOTORS CORP.
 500-20
Hex Nut

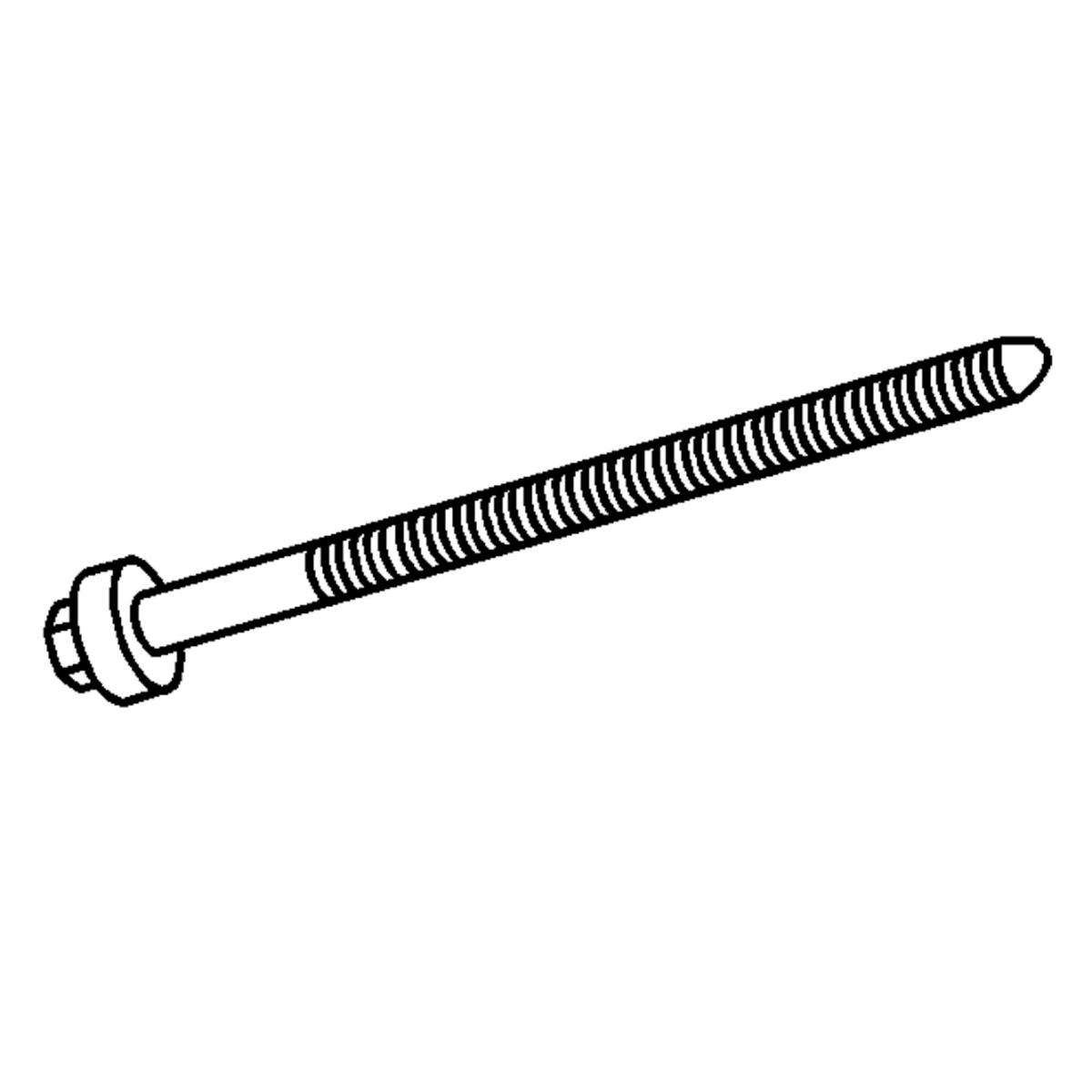

GM1256947Courtesy of GENERAL MOTORS CORP.
 J-36661-2
Forcing Screw

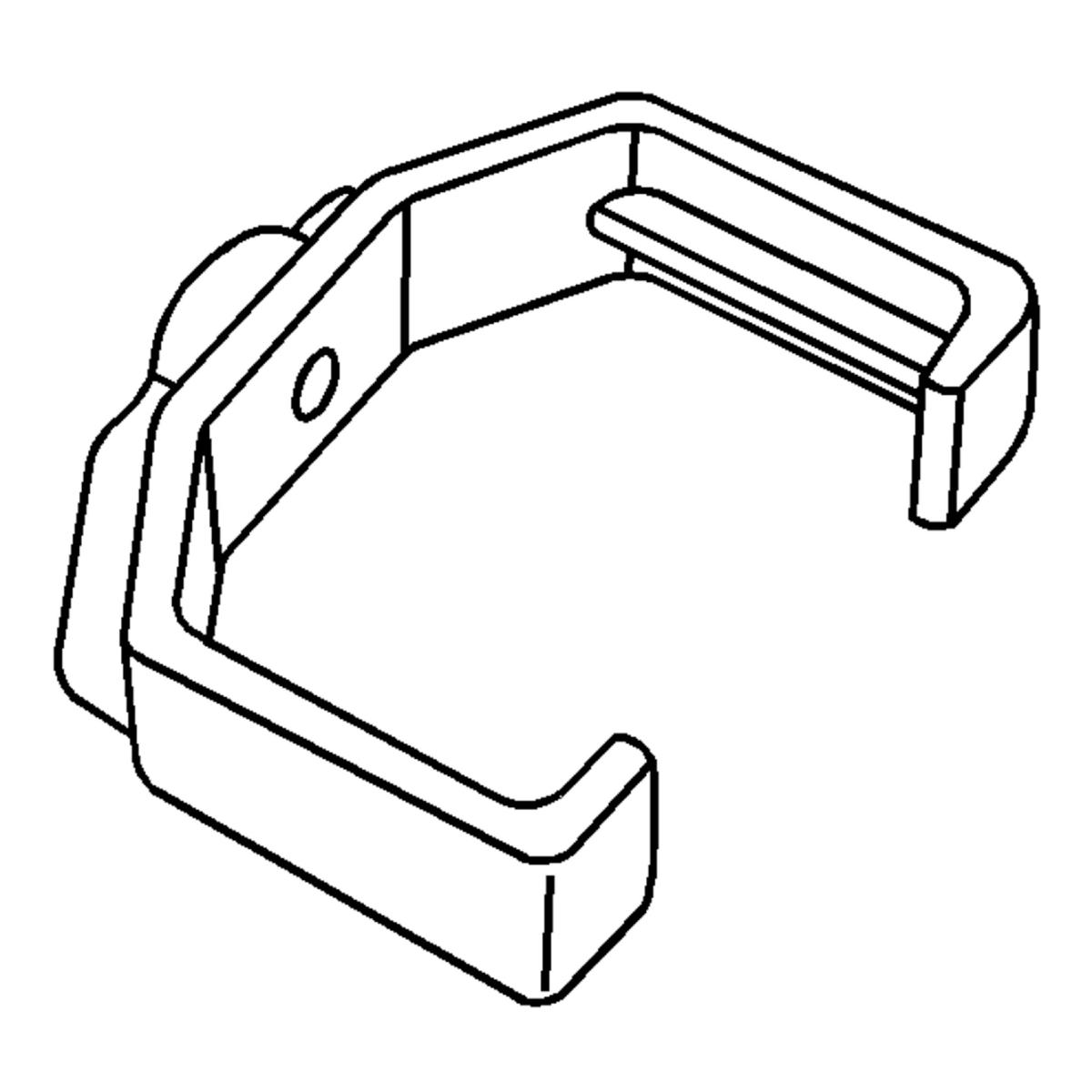

GM1256945Courtesy of GENERAL MOTORS CORP.
 J-37105-1
Support Bridge

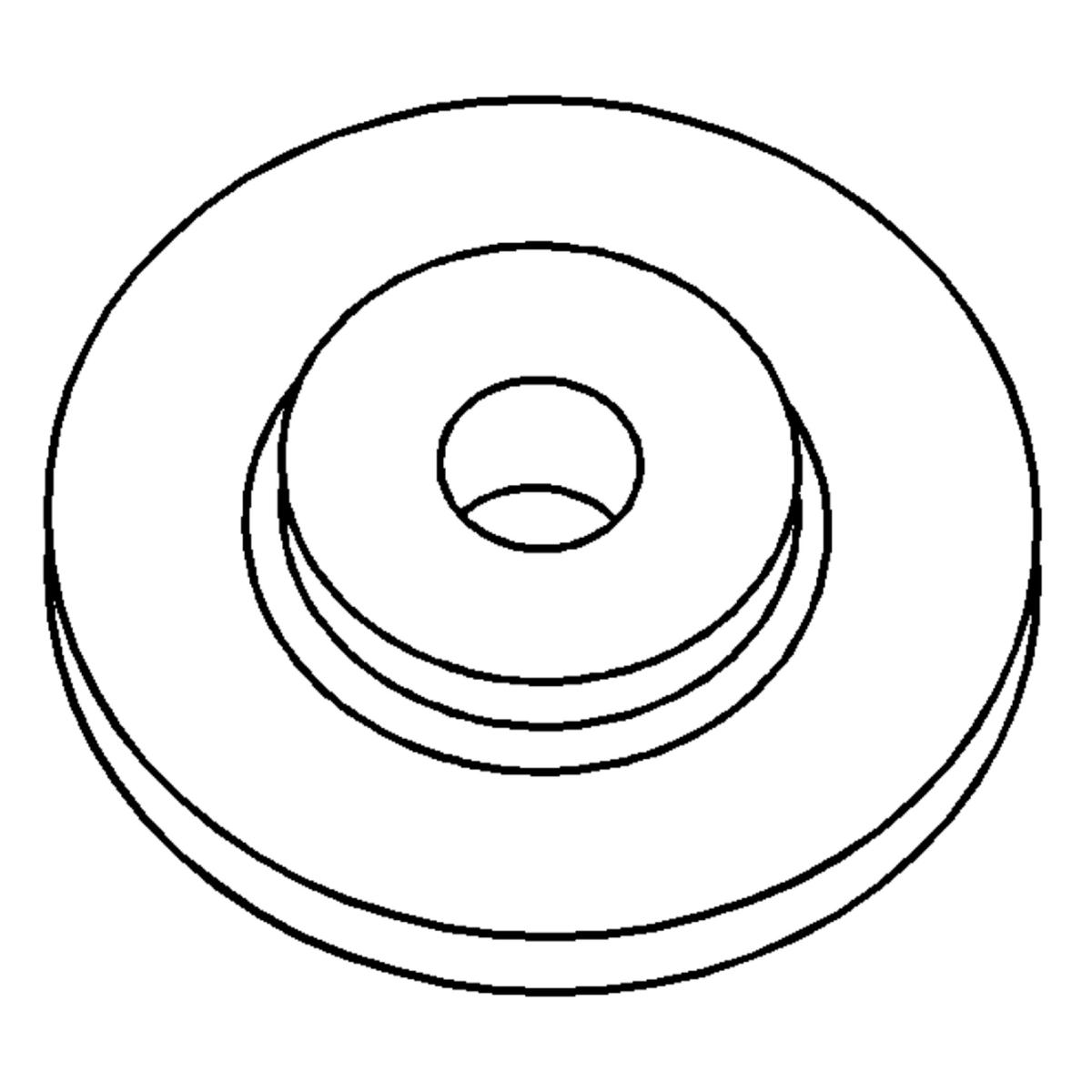

GM1256944Courtesy of GENERAL MOTORS CORP.
 J-37105-2
Bearing Adapter

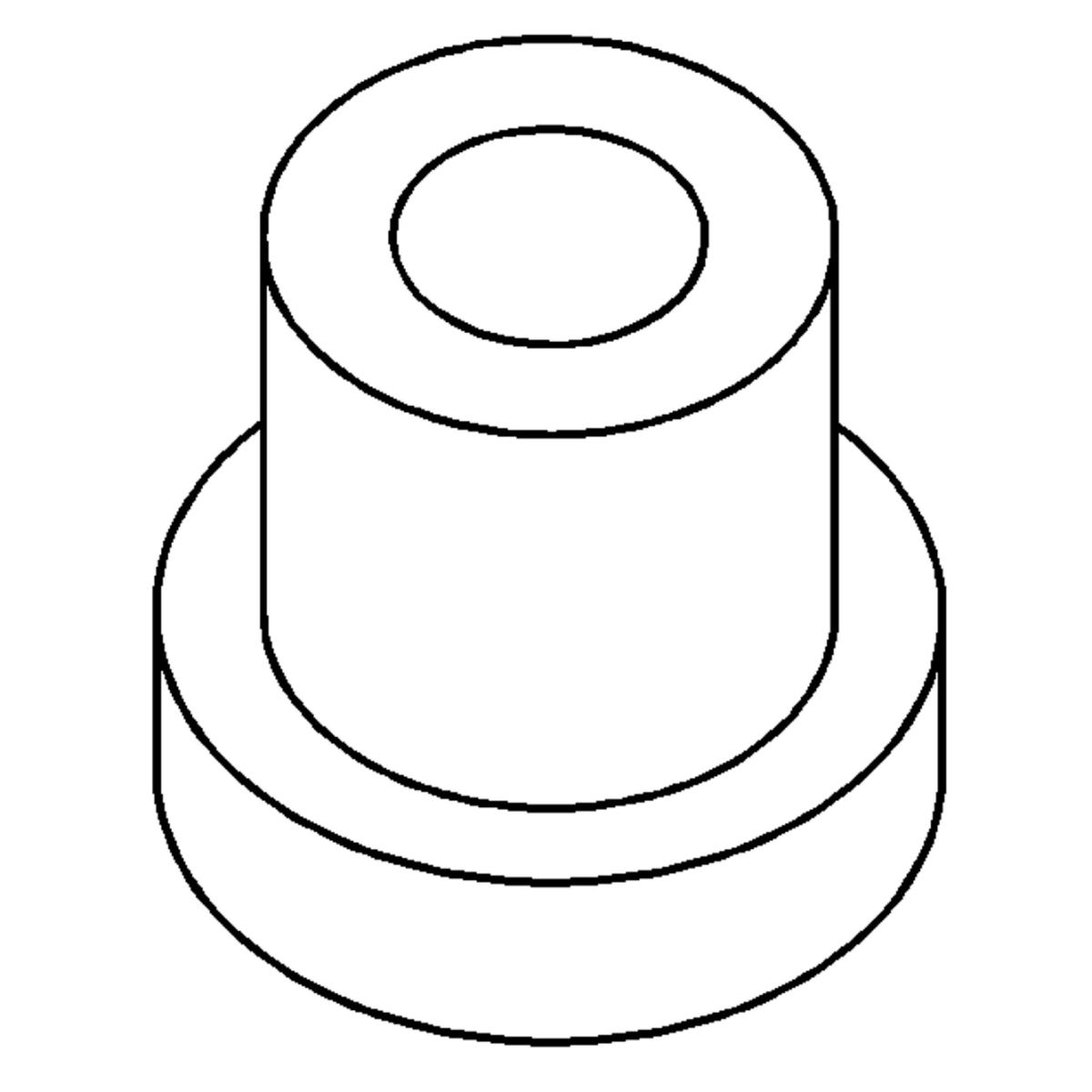

GM1256953Courtesy of GENERAL MOTORS CORP.
 J-37105-3
Hub Adapter
GM1256942Courtesy of GENERAL MOTORS CORP.
 J-42468
Front Strut Mount Nut Wrench
GM1256952Courtesy of GENERAL MOTORS CORP.
 KM-158
Remover/Installer
GM1282425Courtesy of GENERAL MOTORS CORP.
 KM-307-B
Removal Plate

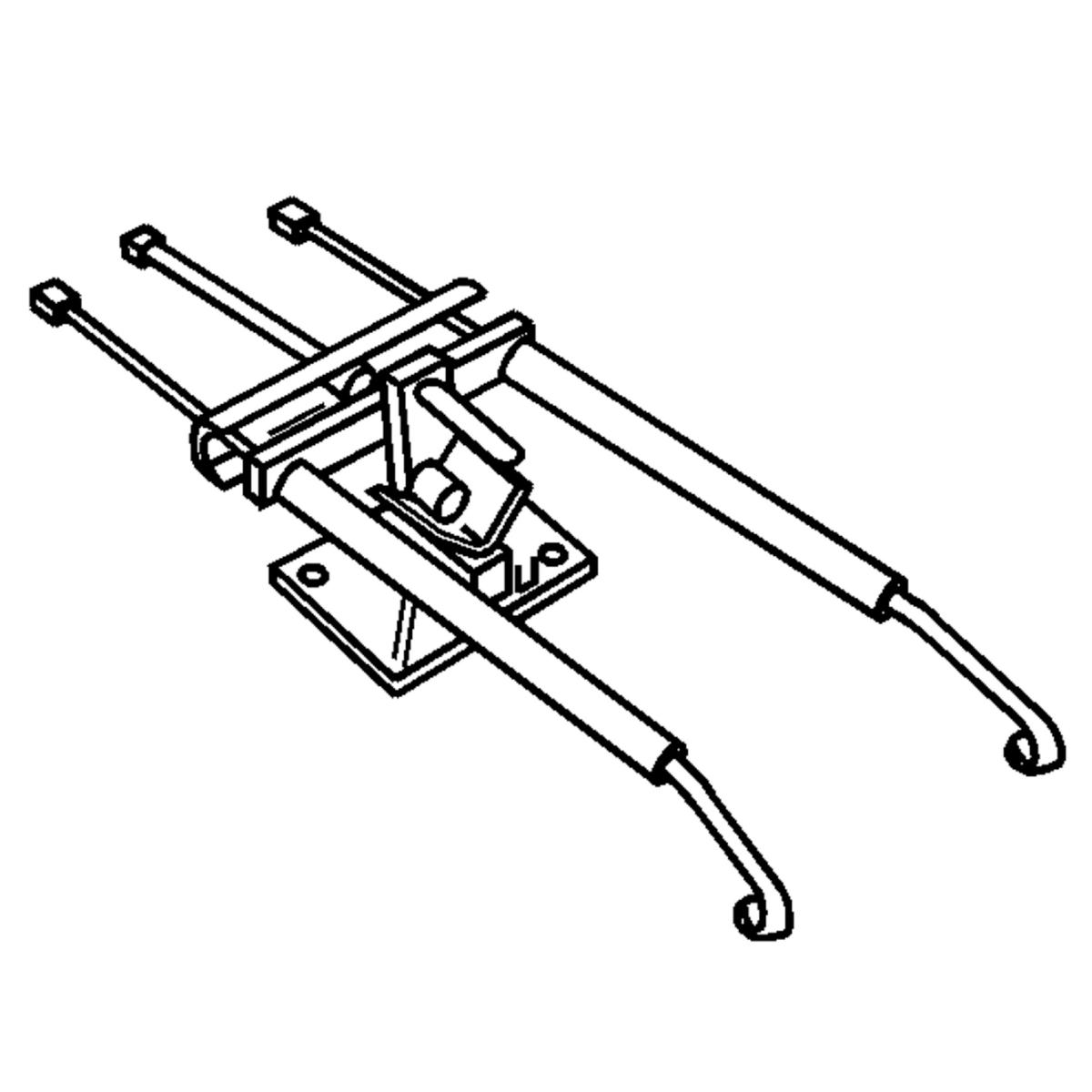

GM1282426Courtesy of GENERAL MOTORS CORP.
 KM-329-A
Spring Compressor
GM1281175Courtesy of GENERAL MOTORS CORP.
 KM-507-C
Ball Joint Remover
GM1282424Courtesy of GENERAL MOTORS CORP.
 KM-508-A
Control Arm Bushing Remover/Installer
