Rear Cover Disassembly and Assembly

  1. Remove the valve body assembly. Refer to Valve Body Disassembly and Assembly .
  2. Pull out sealing sleeve (brake C) with a kind of nail.

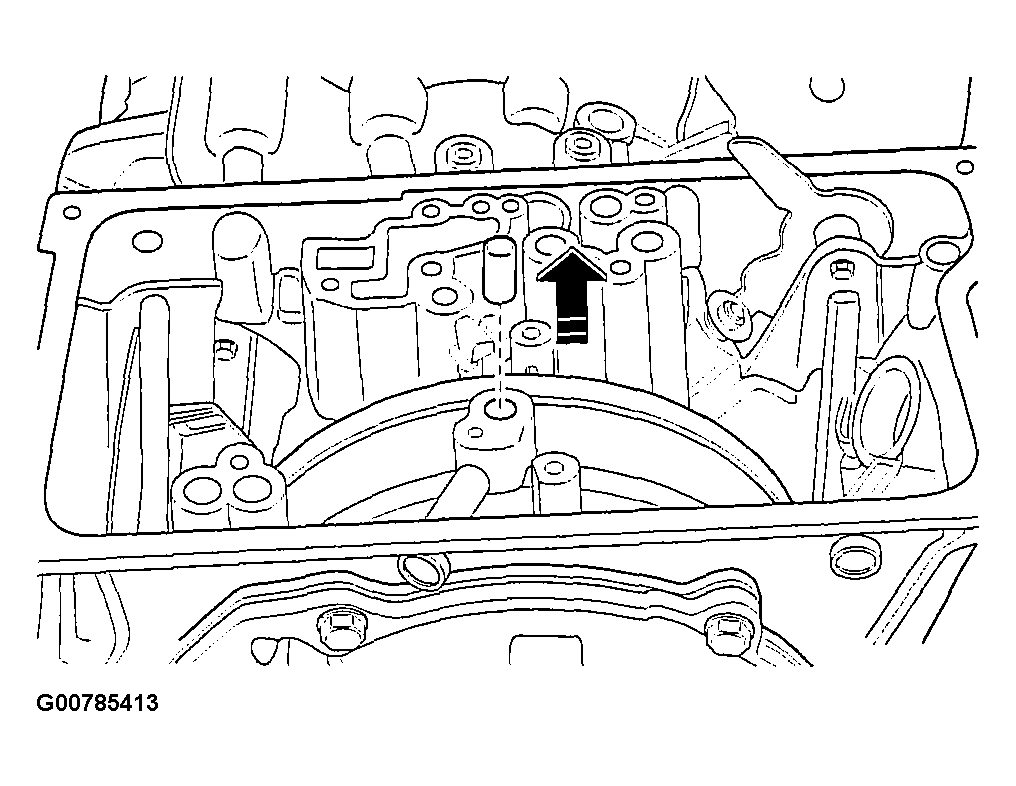

    Fig 1: Pulling Out Sealing Sleeve
    G00785413Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn transaxle by 90°.
  4. Remove the rear cover bolts.
  5. Hit the rear cover rightly.
  6. Remove the cover.

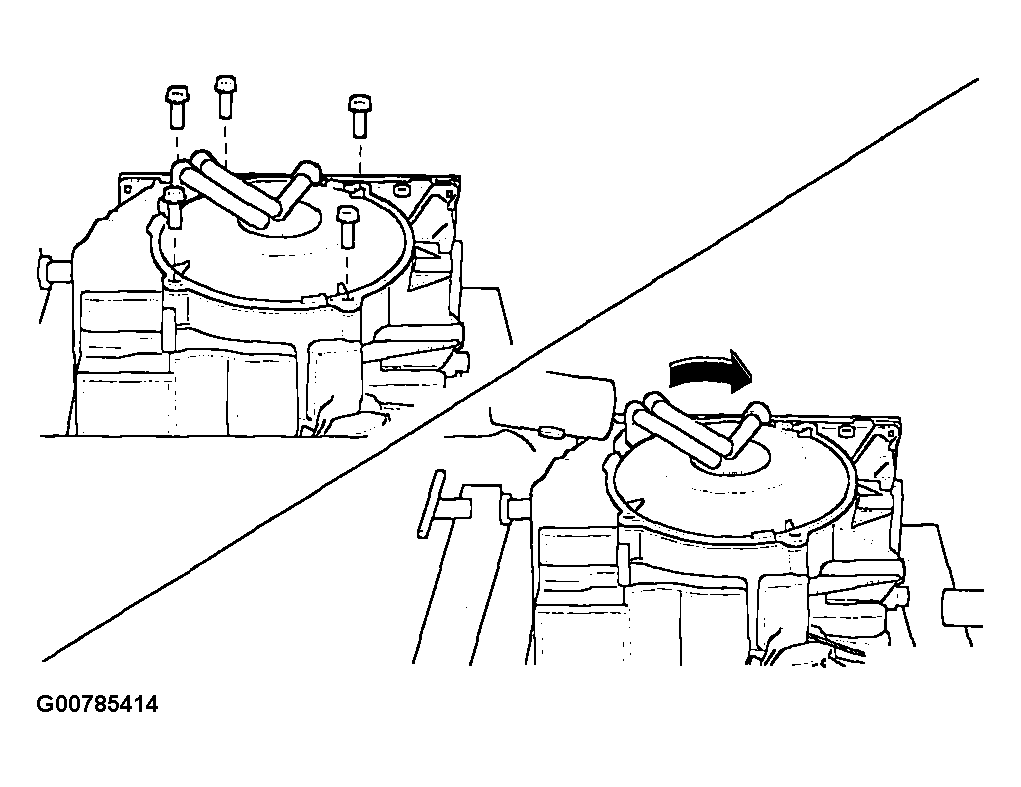

    Fig 2: Removing/Installing Rear Cover
    G00785414Courtesy of SUZUKI OF AMERICA CORP.
  7. Installation should follow the removal procedure in the reverse order.

    Installation Notice

    Tighten the rear cover bolts to 17 Ft. Lbs (23 N.m).
