Valve Body Disassembly and Assembly

  1. Remove the oil pan bolts and oil pan.
    Fig 1: Removing Oil Pan Bolts & Oil Pan
    G00785410Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the oil pan gasket.

    Installation Notice

    Tighten the oil pan bolts to 53 INCH Lbs. (6 N.m).

  3. Remove valve body fixing bolts and transaxle input speed sensor bolt on the valve body.

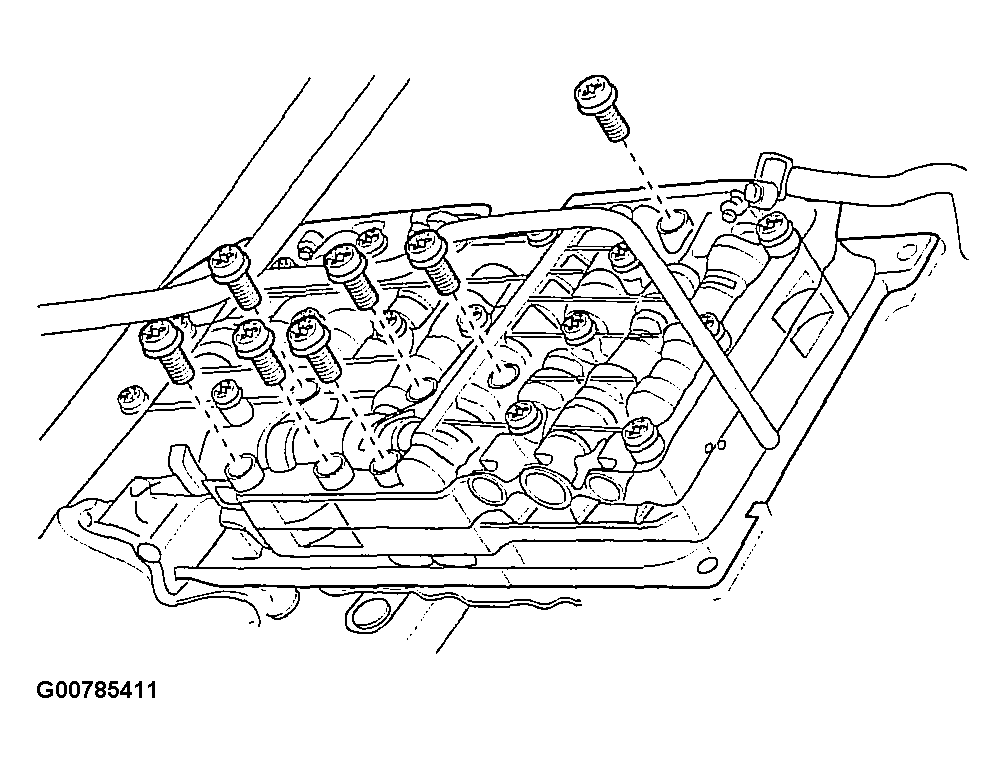

    Fig 2: Removing Valve Body Fixing & Transaxle Input Speed Sensor Bolts
    G00785411Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the holder for the transaxle input speed sensor.

    Installation Notice

    Tighten the bolts to 71 INCH Lbs. (8 N.m).

  5. Tilt the valve body.
  6. Remove the fastening screw for the output speed sensor under the valve body assembly.
  7. Lever the cable out of the retaining clip and pull out the output speed sensor.
  8. Installation should follow the removal procedure in the reverse order.

    Installation Notice

    Tighten the screw to 53 INCH Lbs. (6 N.m).

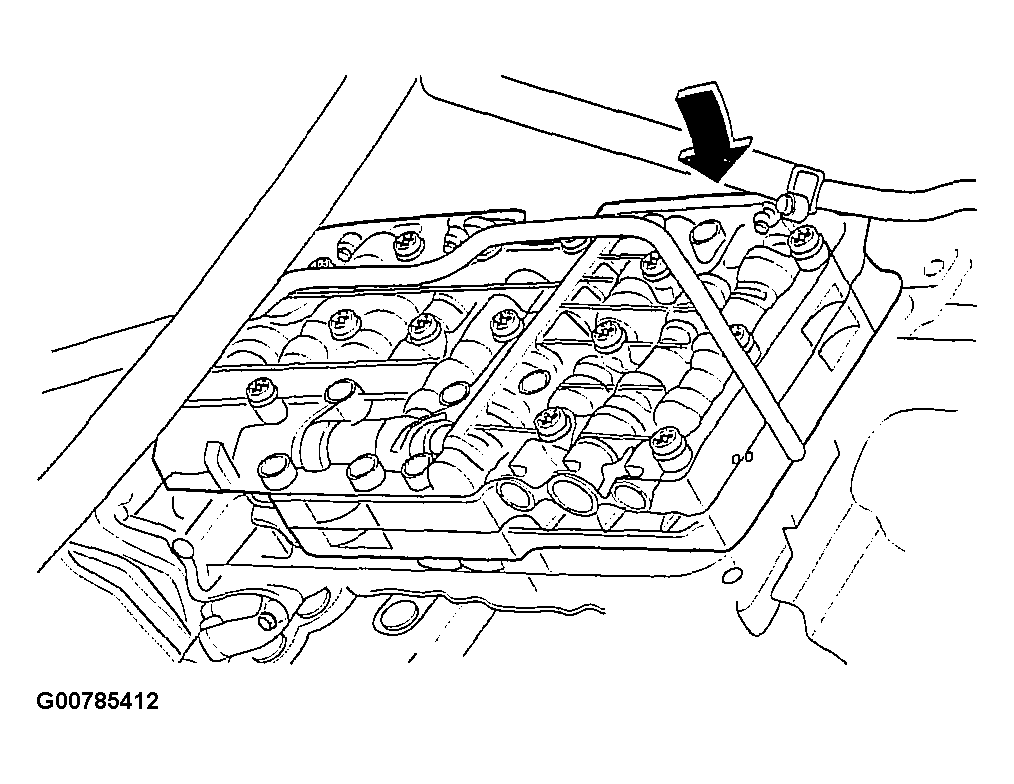

    Fig 3: Installing Valve Body Fixing & Transaxle Input Speed Sensor Bolts
    G00785412Courtesy of SUZUKI OF AMERICA CORP.
