Tools Required

DW260-140 Clutch B Stop Ring Remover/Installer

DW260-150 Clutch E Stop Ring Remover/Installer

1. Remove the rear cover. Refer to REAR COVER DISASSEMBLY AND ASSEMBLY .

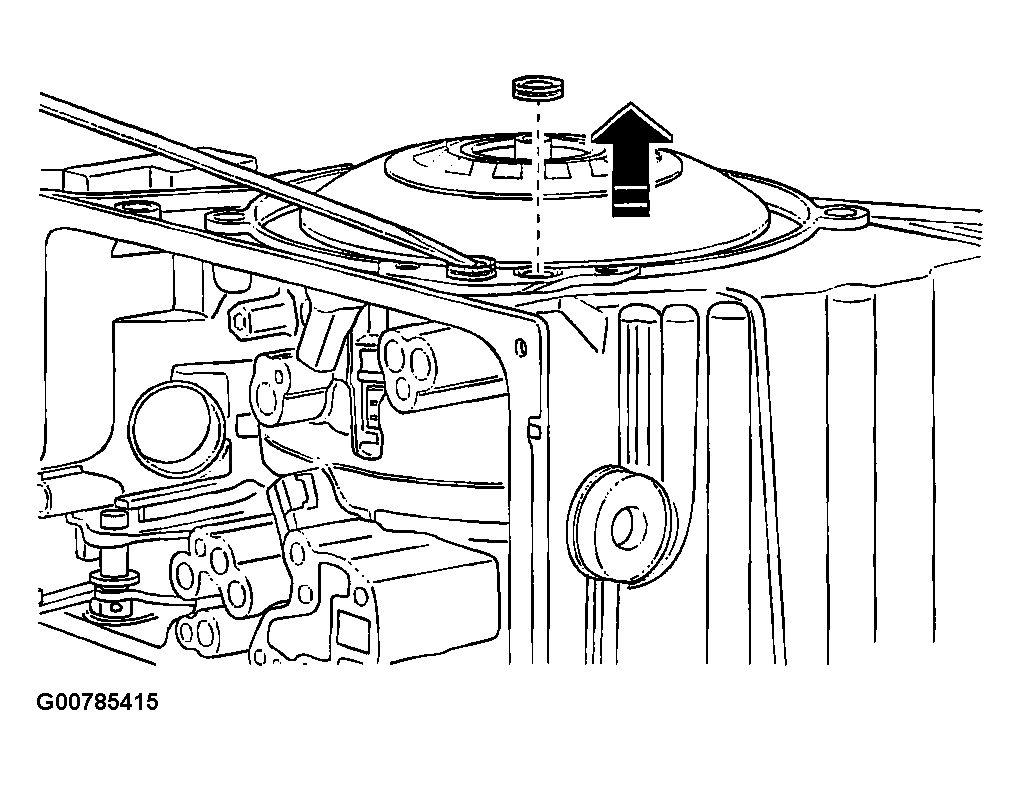

2. Remove the two sealing rings (clutch B/E).
   Fig 1: Removing Two Sealing Rings

   Courtesy of SUZUKI OF AMERICA CORP.

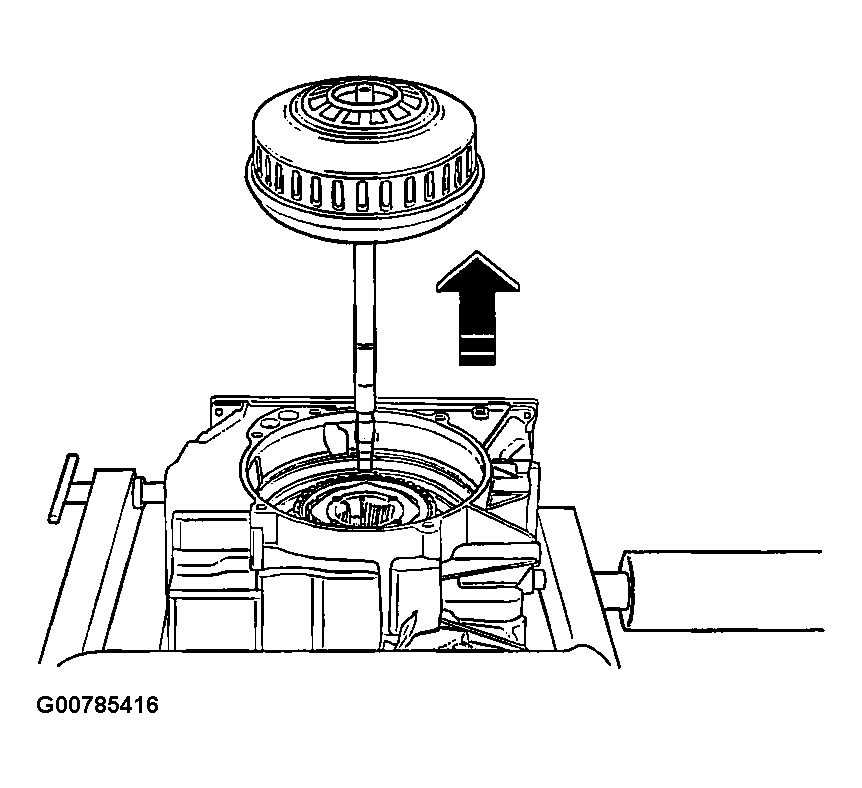

3. Take out input shaft with clutch B/E.
   Fig 2: Removing Input Shaft With Clutch

   Courtesy of SUZUKI OF AMERICA CORP.

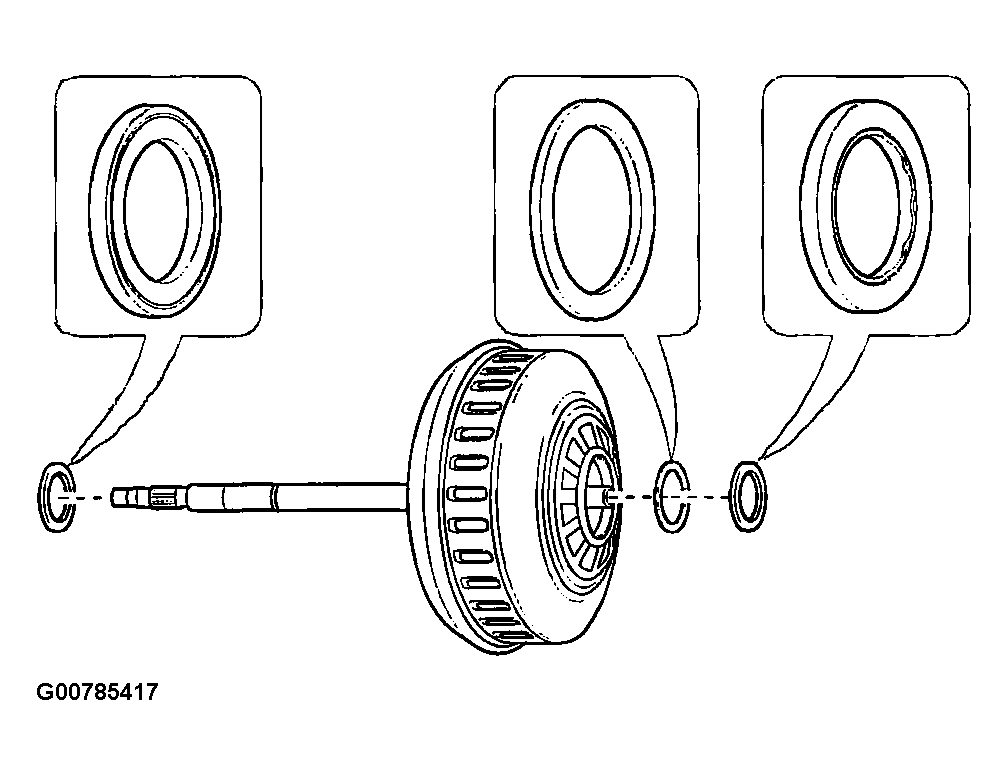

4. Remove needle bearing and thrust washer.
5. Remove shim.
   Fig 3: Removing Shim

   Courtesy of SUZUKI OF AMERICA CORP.

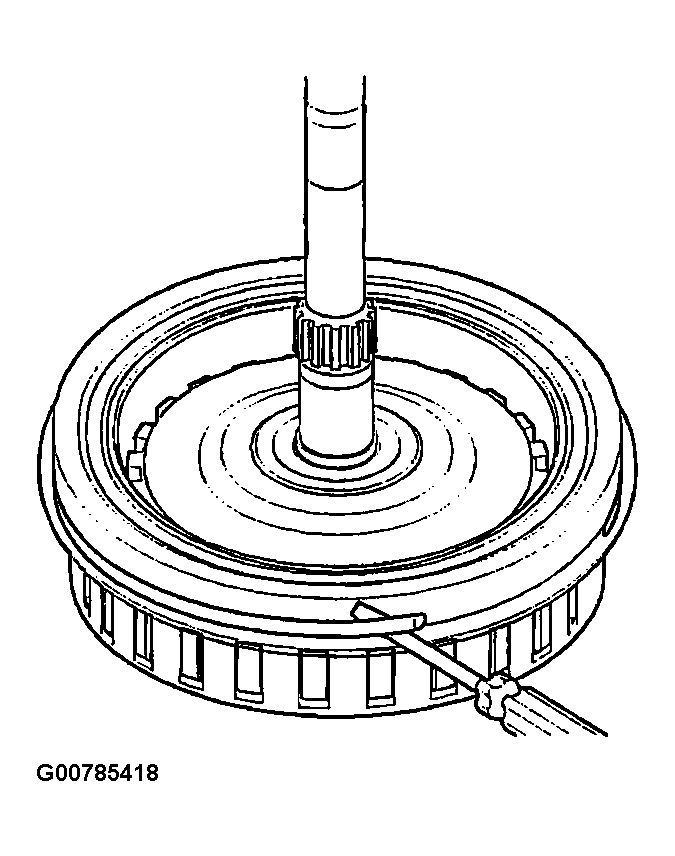

6. Take out the retaining snap ring.
   Fig 4: Removing Retaining Snap Ring

   Courtesy of SUZUKI OF AMERICA CORP.
7. Take out the piston B.
   Fig 5: Removing Piston B

   Courtesy of SUZUKI OF AMERICA CORP.

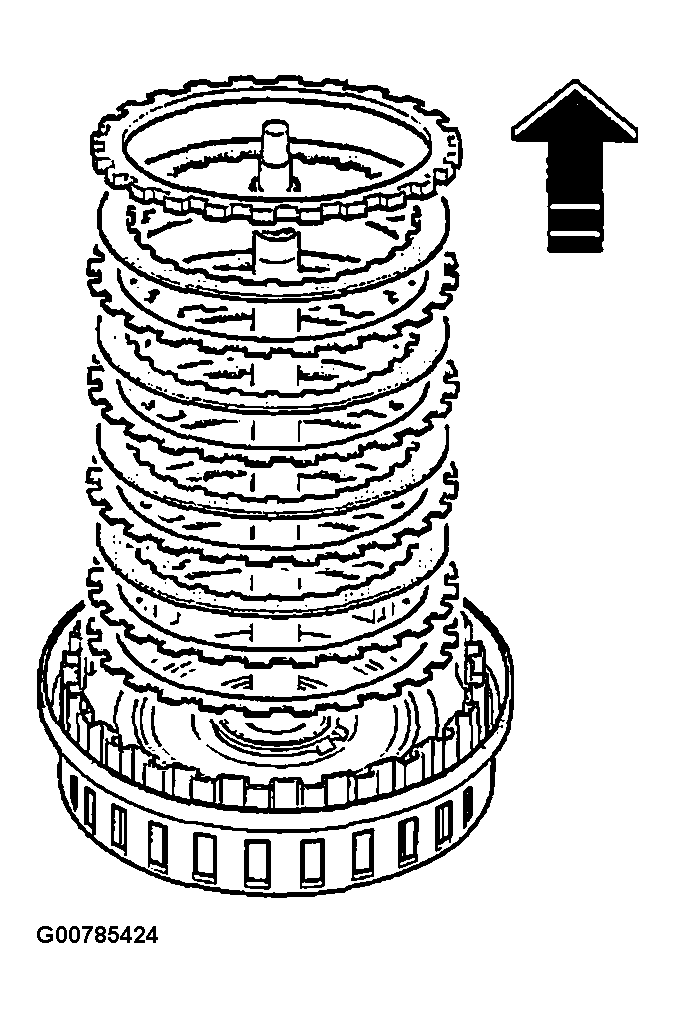

8. Remove disc set B.
   Fig 6: Removing Disc Set B

   Courtesy of SUZUKI OF AMERICA CORP.

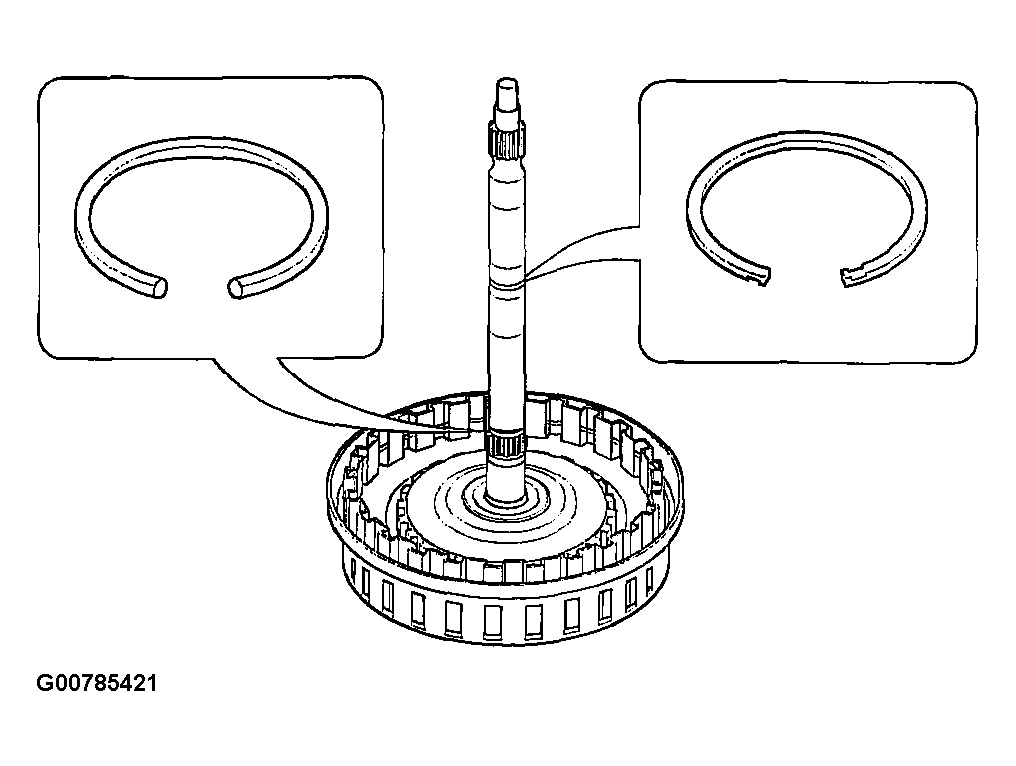

9. Take out the piston rings.

   Removal Notice

   • Remove the piston ring for the input shaft and the retaining ring.
     Fig 7: Removing Piston Ring For Input Shaft & Retaining Ring

     Courtesy of SUZUKI OF AMERICA CORP.

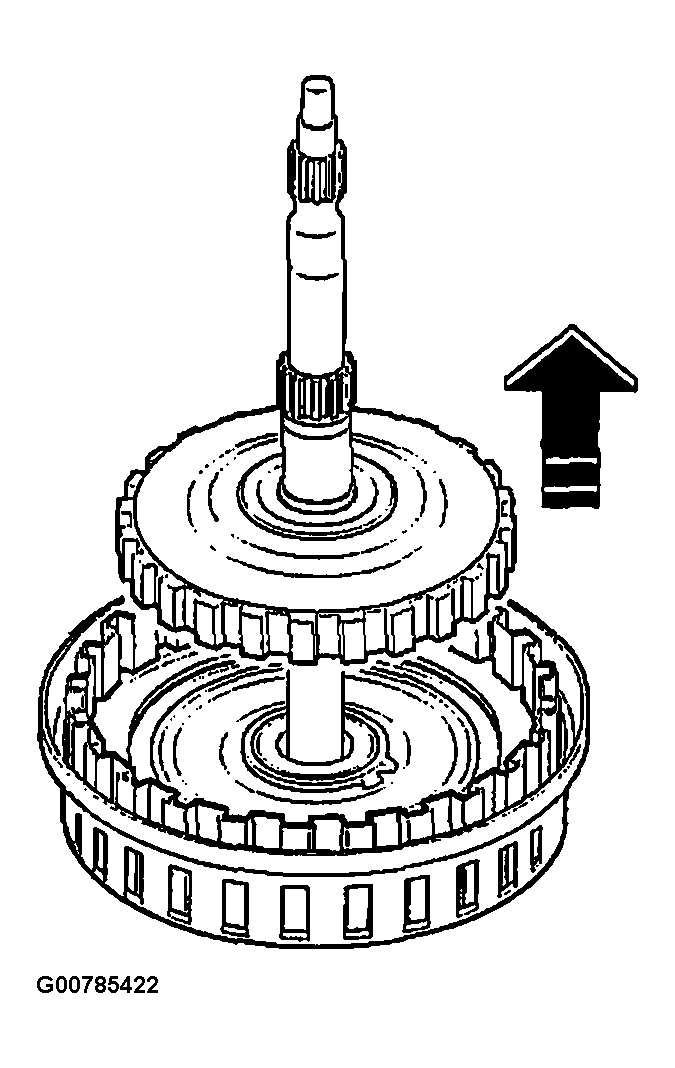

10. Remove inner disc carrier E and needle roller thrust bearing.
    Fig 8: Removing Inner Disc Carrier E & Needle Roller Thrust Bearing

    Courtesy of SUZUKI OF AMERICA CORP.

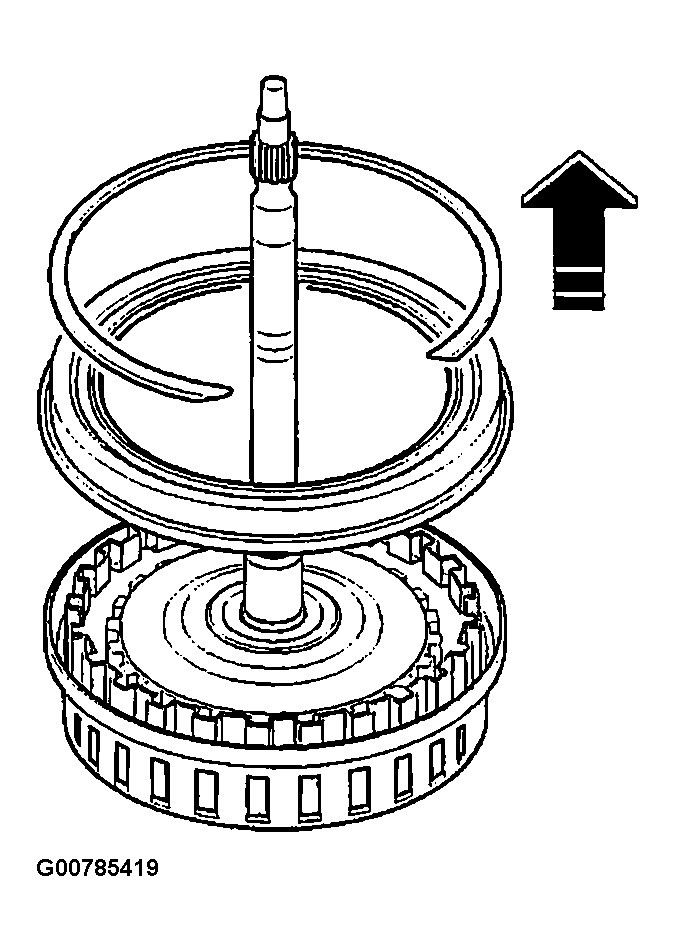

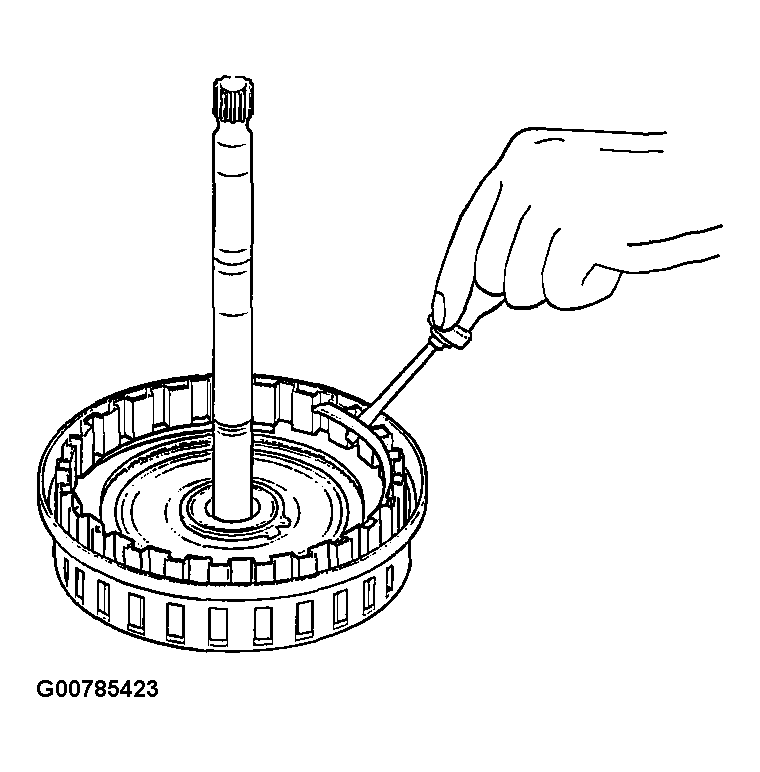

11. Take out the snap ring.
    Fig 9: Removing Snap Ring

    Courtesy of SUZUKI OF AMERICA CORP.

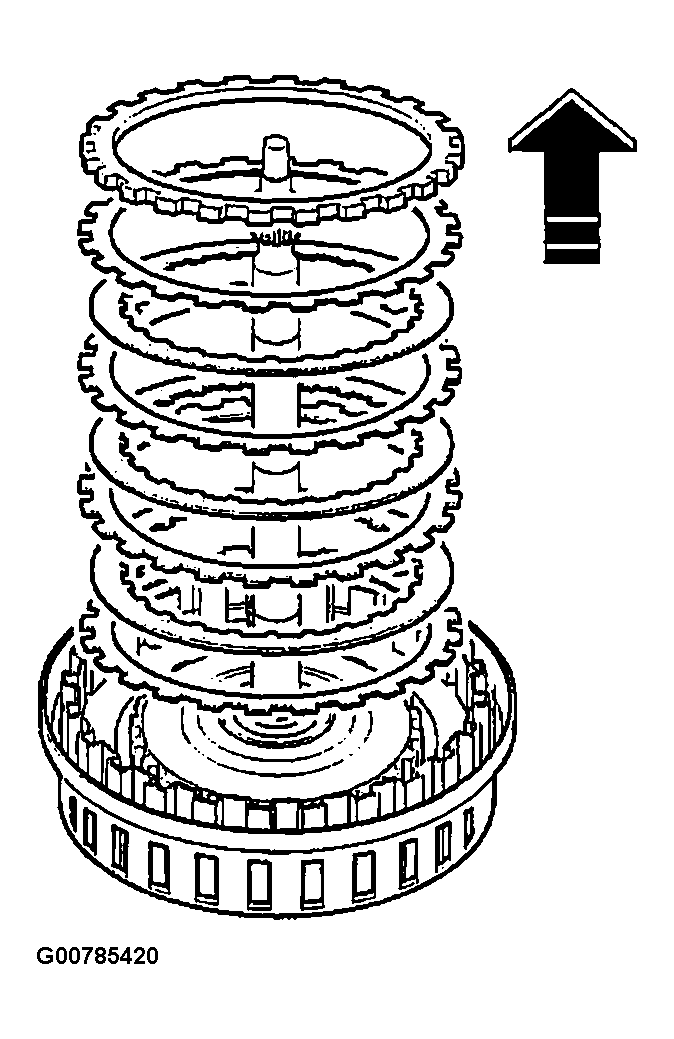

12. Remove disc set E.
    Fig 10: Removing Disc Set E

    Courtesy of SUZUKI OF AMERICA CORP.

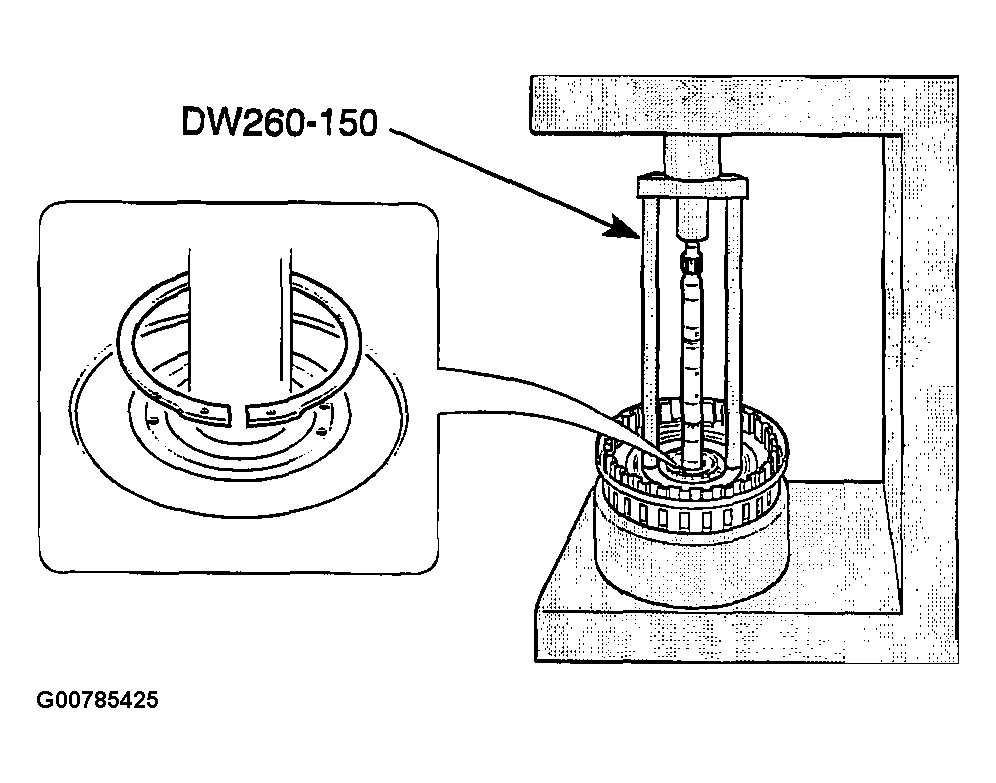

13. Press down cup spring (clutch E) with cup spring press fixture.
14. Remove the split stop ring.
    Fig 11: Removing Split Stop Ring

    Courtesy of SUZUKI OF AMERICA CORP.
15. Remove the oil dam and cup spring.
16. Pull the O-ring off the oil dam.
    Fig 12: Pulling O-Ring Off The Oil Dam

    Courtesy of SUZUKI OF AMERICA CORP.

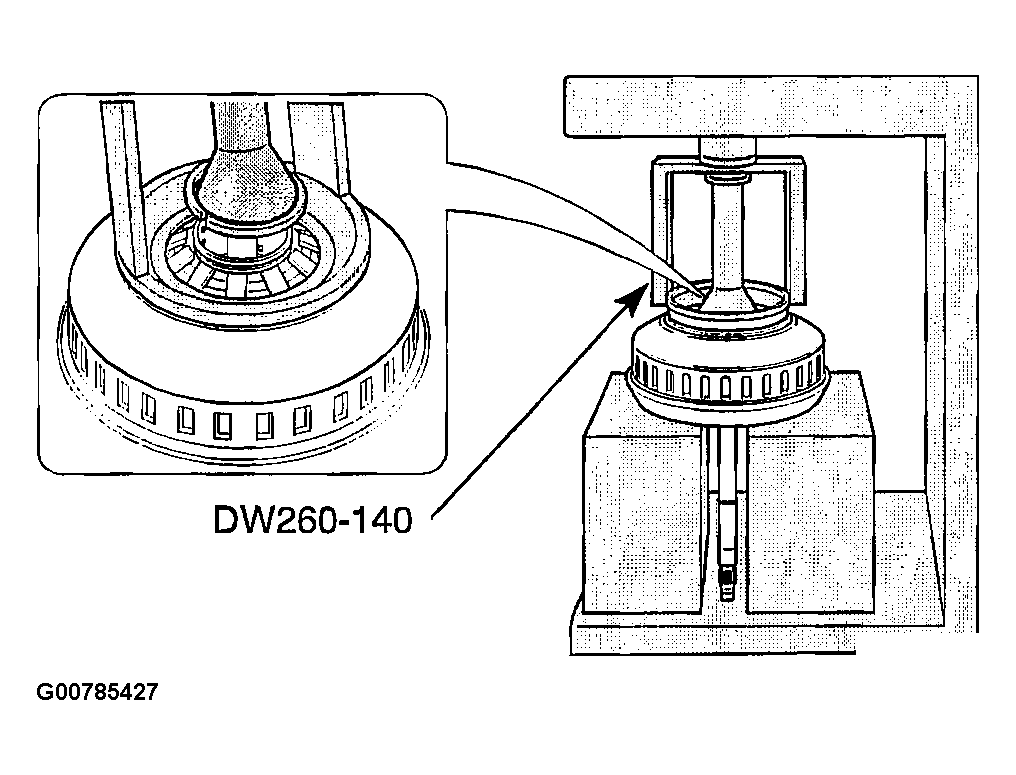

17. Press down cup spring (clutch B) with cup spring press fixture.
18. Remove the split stop ring.
    Fig 13: Removing Split Stop Ring

    Courtesy of SUZUKI OF AMERICA CORP.

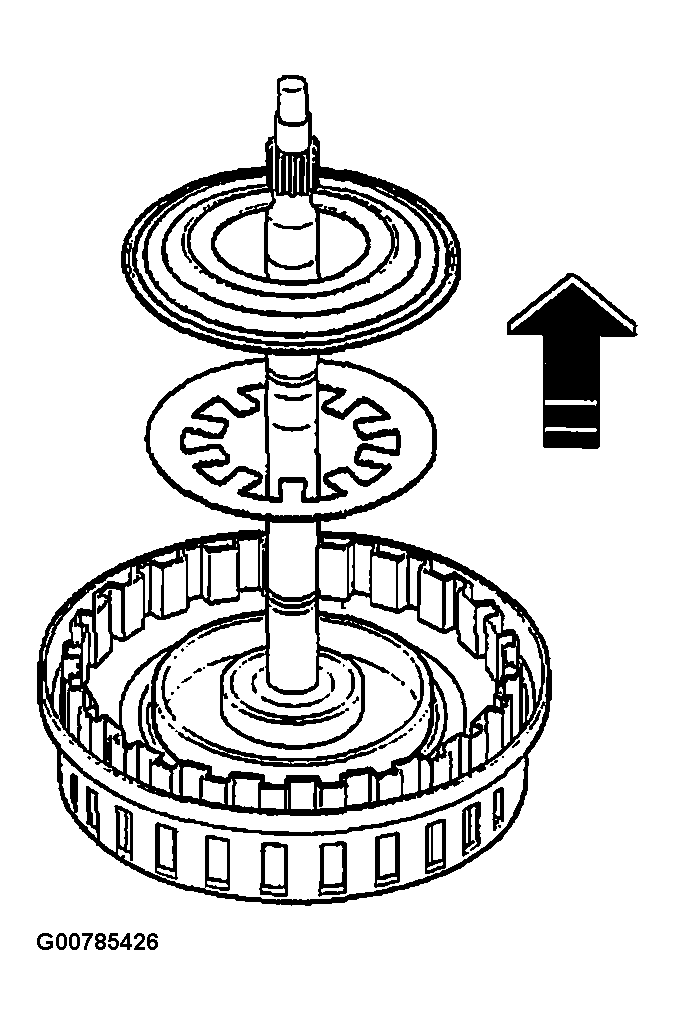

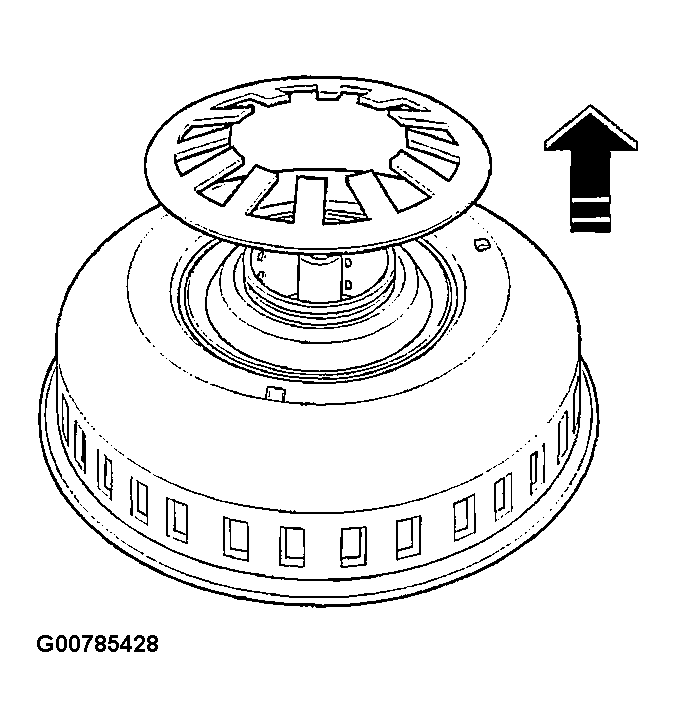

19. Remove the cup spring.
    Fig 14: Removing Cup Spring

    Courtesy of SUZUKI OF AMERICA CORP.
20. Installation should follow the removal procedure in the reverse order.

    Adjustment Notice

    Before assembling clutch B/E, setting discs (clutch B/E) have to measured by below measurement procedure.
