Tools Required

DW260-060 Brake F Split Stop Ring Remover

1. Remove the side shaft. Refer to SIDE SHAFT DISASSEMBLY & ASSEMBLY .
2. Take OFF the disc set and the brake F inner disc carrier.

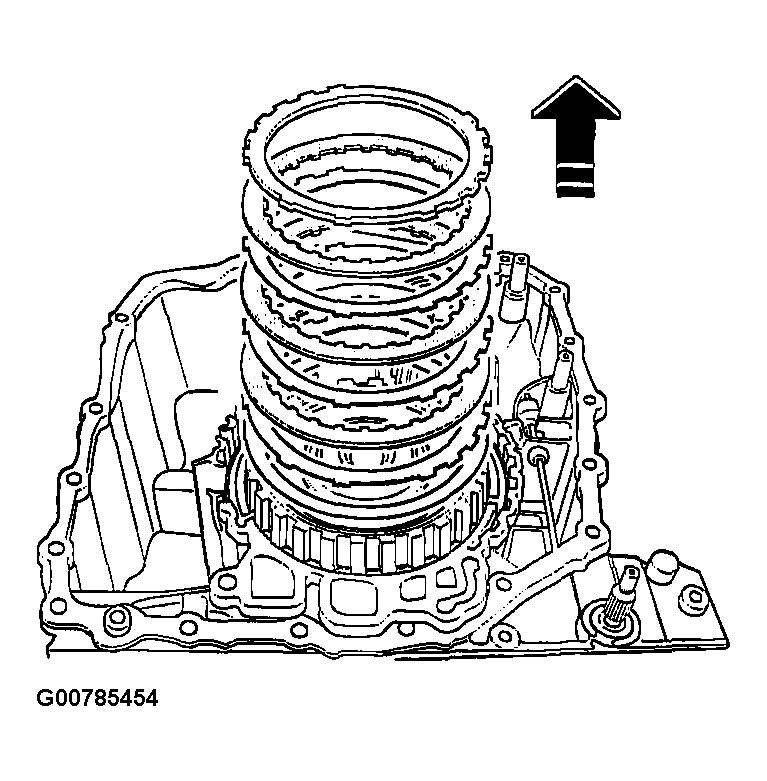

   Fig 1: Taking Off Disc Set & Brake F Inner Disc Carrier (1 of 2)

   Courtesy of SUZUKI OF AMERICA CORP.

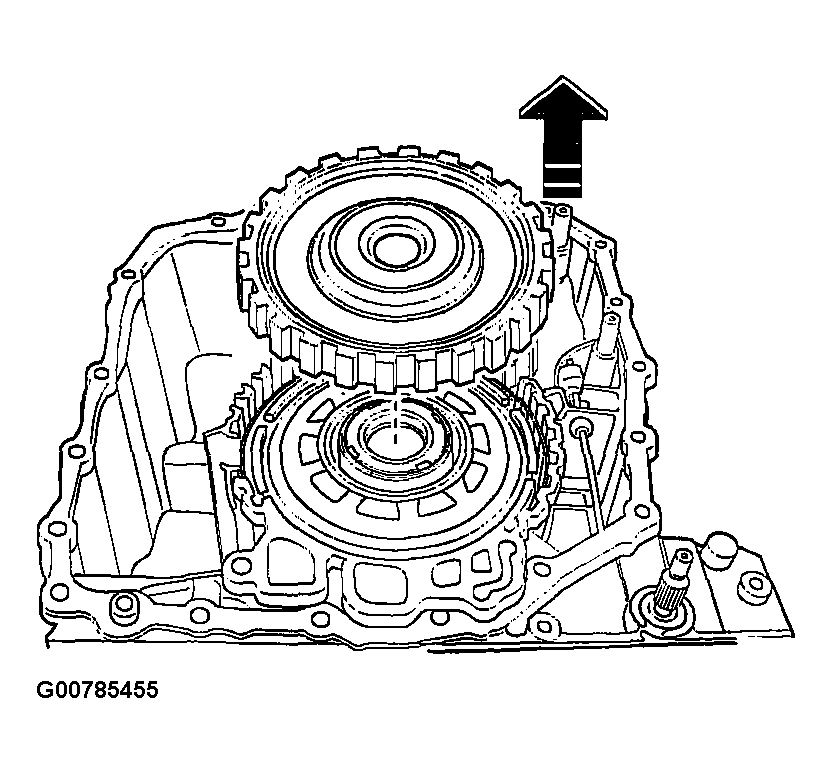

   Fig 2: Taking Off Disc Set & Brake F Inner Disc Carrier (2 of 2)

   Courtesy of SUZUKI OF AMERICA CORP.

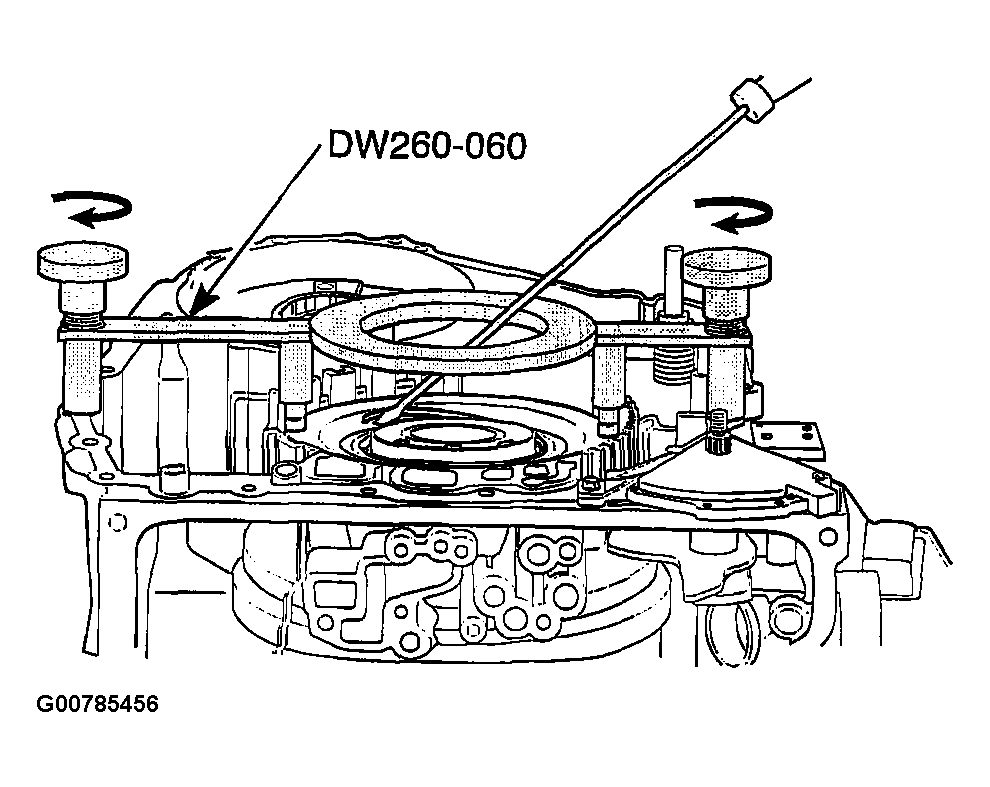

3. Mount fixture and remove the brake F split stop ring.
   Fig 3: Removing Brake F Split Stop Ring

   Courtesy of SUZUKI OF AMERICA CORP.

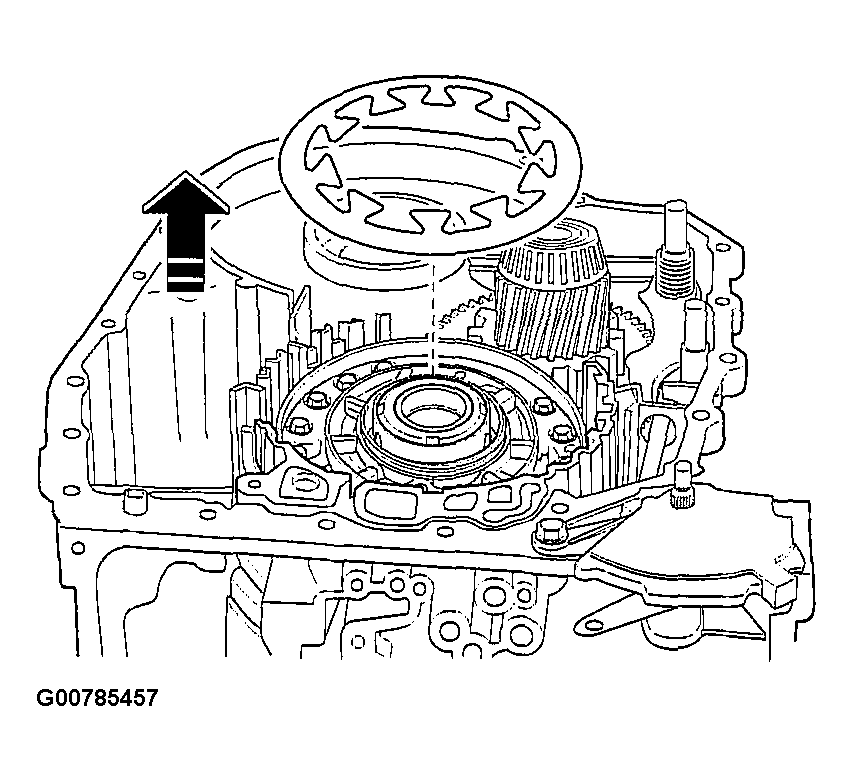

4. Remove the fixture and take off the cup spring.
   Fig 4: Taking Off The Cup Spring

   Courtesy of SUZUKI OF AMERICA CORP.

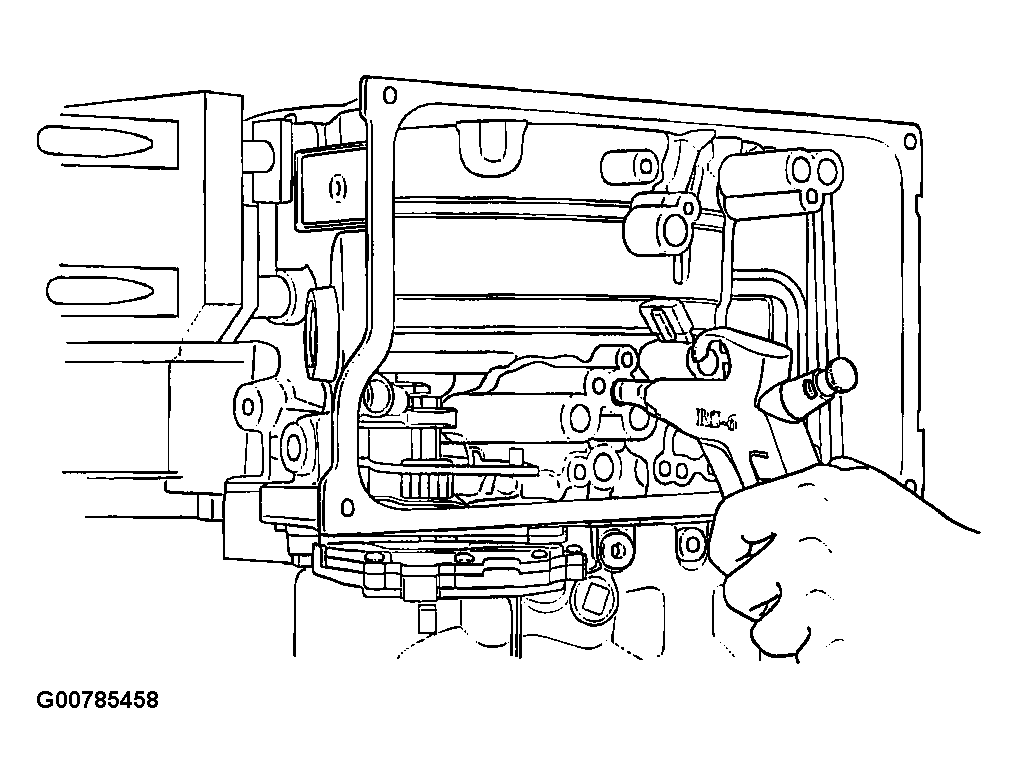

5. Release the piston F by applying compressed air to the bore.
   Fig 5: Releasing Piston F

   Courtesy of SUZUKI OF AMERICA CORP.

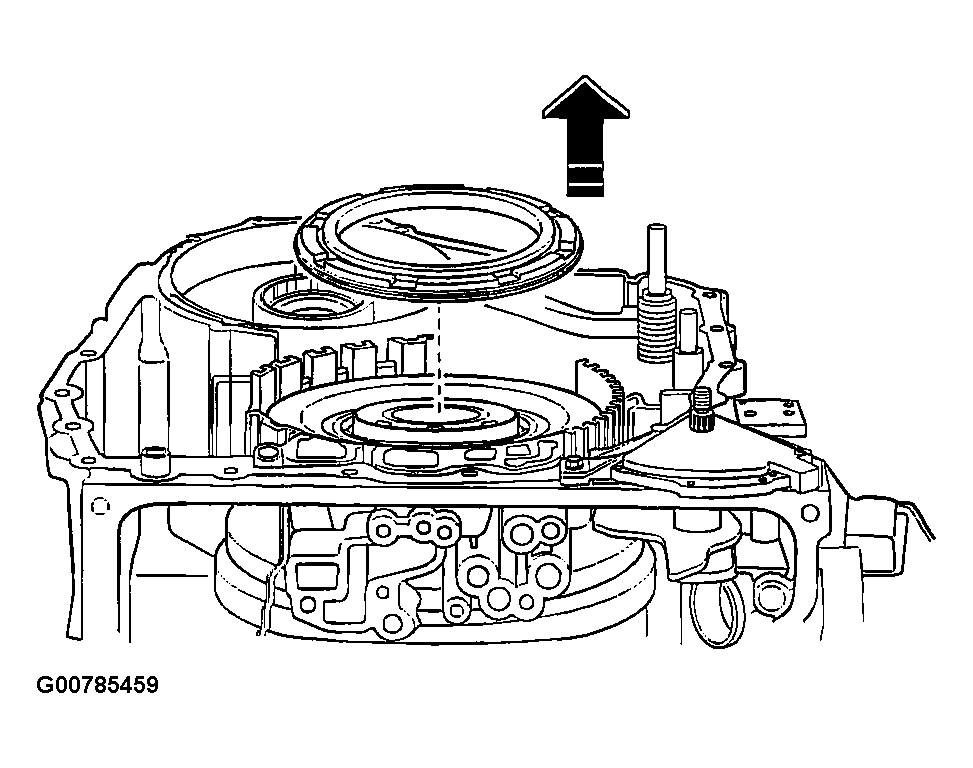

6. Remove piston F and bearing plate with spur gear.
   Fig 6: Removing Piston F & Bearing Plate

   Courtesy of SUZUKI OF AMERICA CORP.
7. Installation should follow the removal procedure in the reverse order.

   Removal Notice

   Since the bearing set is tight, press the bearing plate upward from underneath to remove it.
