Side Shaft Disassembly and Assembly

  1. Remove the differential. Refer to DIFFERENTIAL DISASSEMBLY & ASSEMBLY .
  2. Tilt and remove the side shaft.

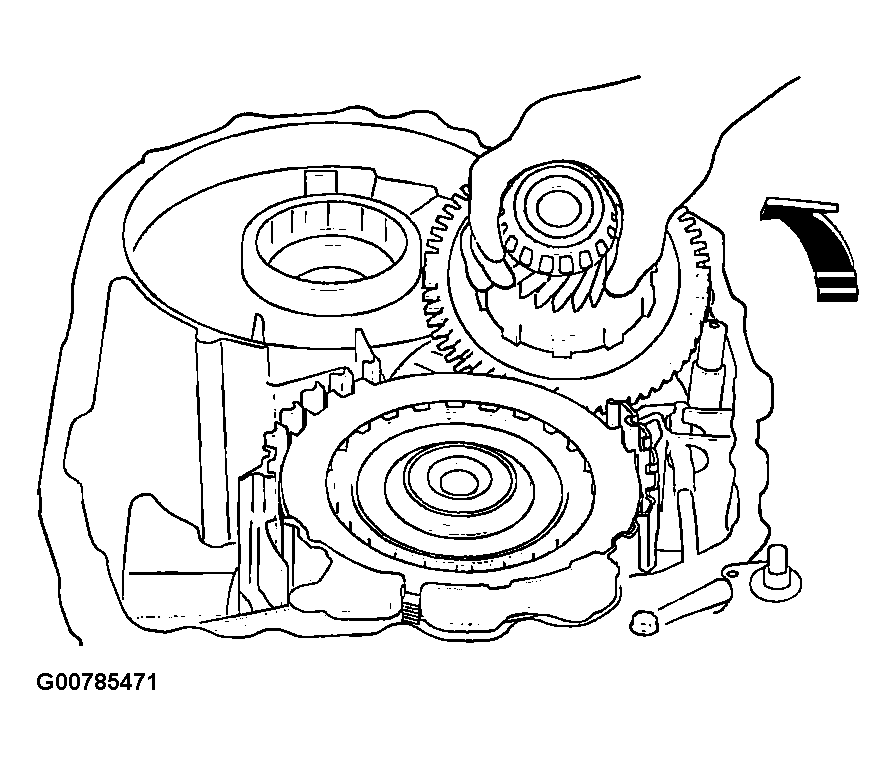

    Fig 1: Removing Differential
    G00785471Courtesy of SUZUKI OF AMERICA CORP.
  3. Installation should follow the removal procedure in the reverse order.

    Removal Notice

    • Don't disassemble the differential to avoid incorrect operation.
