Clock Will Not Hold Memory When Ignition Key Is Turned Off (TS 03 04054)

Publication date: 2004-04-05
Reference number: TS 03 04054

CLOCK WILL NOT HOLD MEMORY WHEN IGNITION KEY IS TURNED OFF

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 03 04054, Date of Issue: April 5, 2004

SUZUKI:	2004 FORENZA
SECTION:	BODY ELECTRICAL

CONDITION

After turning the ignition switch to the off position, the clock time will default to 1:00. This may not occur immediately. The clock will not hold memory.

CORRECTION

Check the 15 AMP, "Auto A/C fuse" to be sure it is not blown and is properly installed. It is located in the fuse panel on the driver's side of the instrument panel as shown in Fig 1 . See owner's manual or service manual for more information.

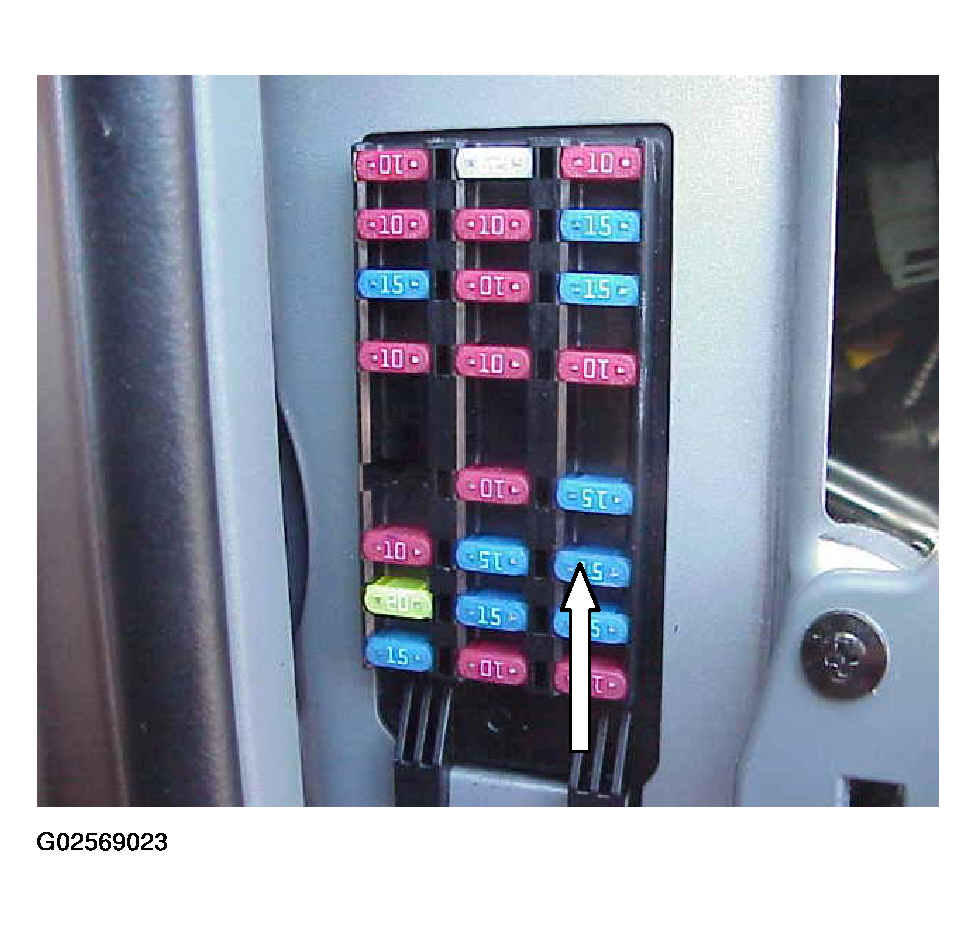

Fig 1: Auto A/C Fuse Location

Courtesy of SUZUKI OF AMERICA CORP.
