Bed Plate Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation should follow the removal procedure in the reverse order.
  2. Clean the contact surfaces between the bed plate and the cylinder block.
  3. Apply the liquid gasket (Loctite® 5900-M8585) on the bed plate.
  4. Install the bed plate.
    • Tighten

    Tighten the bed plate inner bolts to 33 N.m (24 lb-ft). After tightening all the inner bolts, turn the bolts by 135° each.

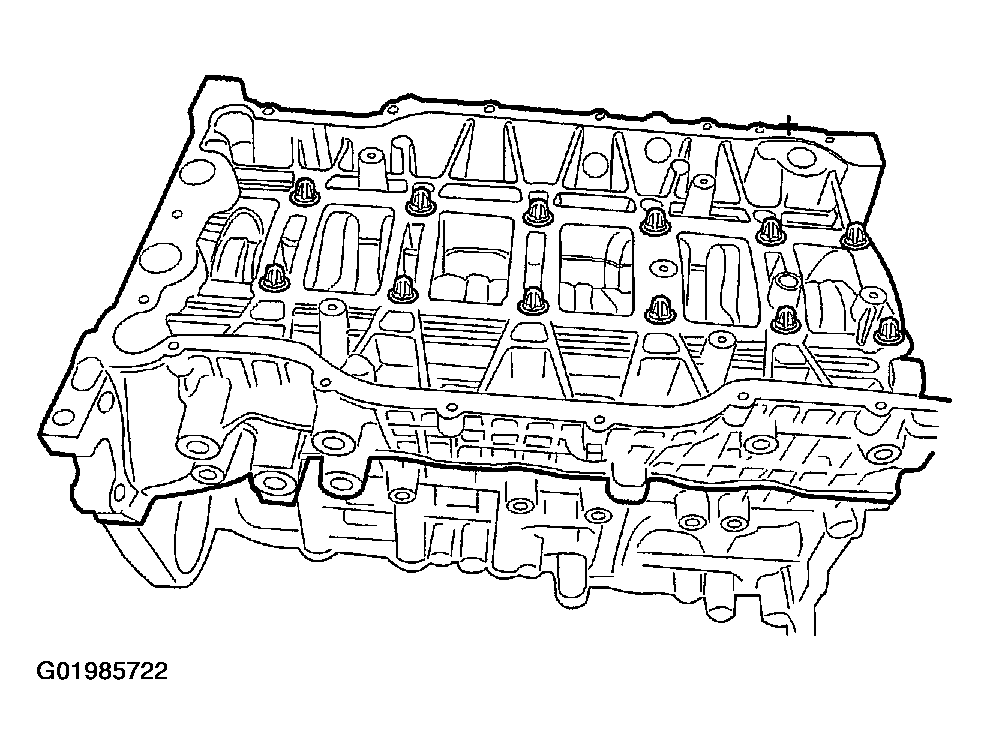

    5. Fig 1: Installing Bed Plate (Inner Bolts)
    G01985722Courtesy of SUZUKI OF AMERICA CORP.
  5. Tighten the bed plate outer bolts.

    Tighten

    Tighten the bed plate outer bolts to 20-26 N.m (15-19 lb-ft).

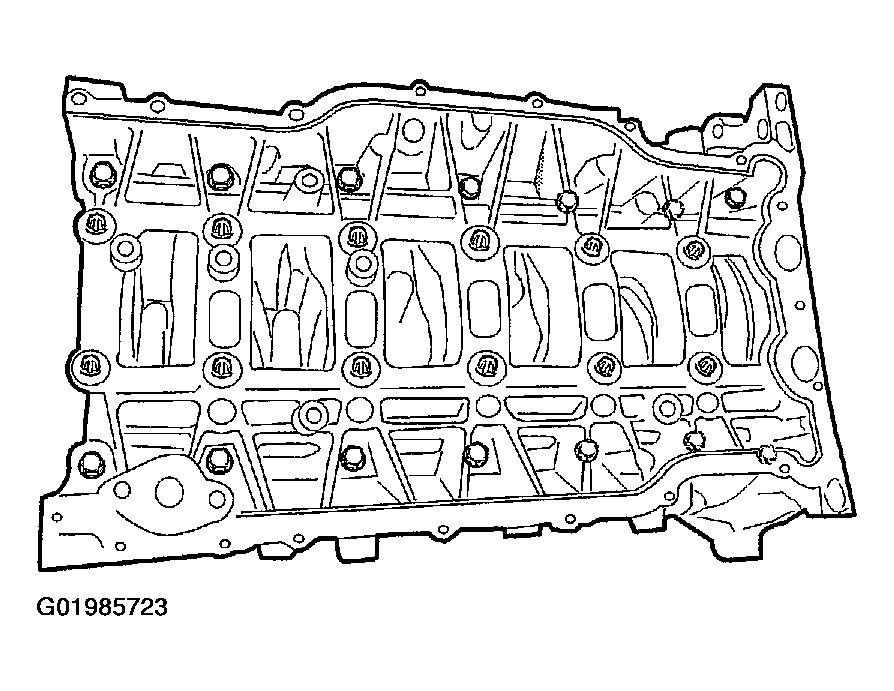

    6. Fig 2: Installing Bed Plate (Outer Bolts)
    G01985723Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the oil pump. Refer to Oil Pan / Oil Pump Removal  .
  7. Install the oil pump chain lever.
    1. Tighten

    Tighten the oil pump chain lever bolt to 6-10 N.m (53-89 lb-in).

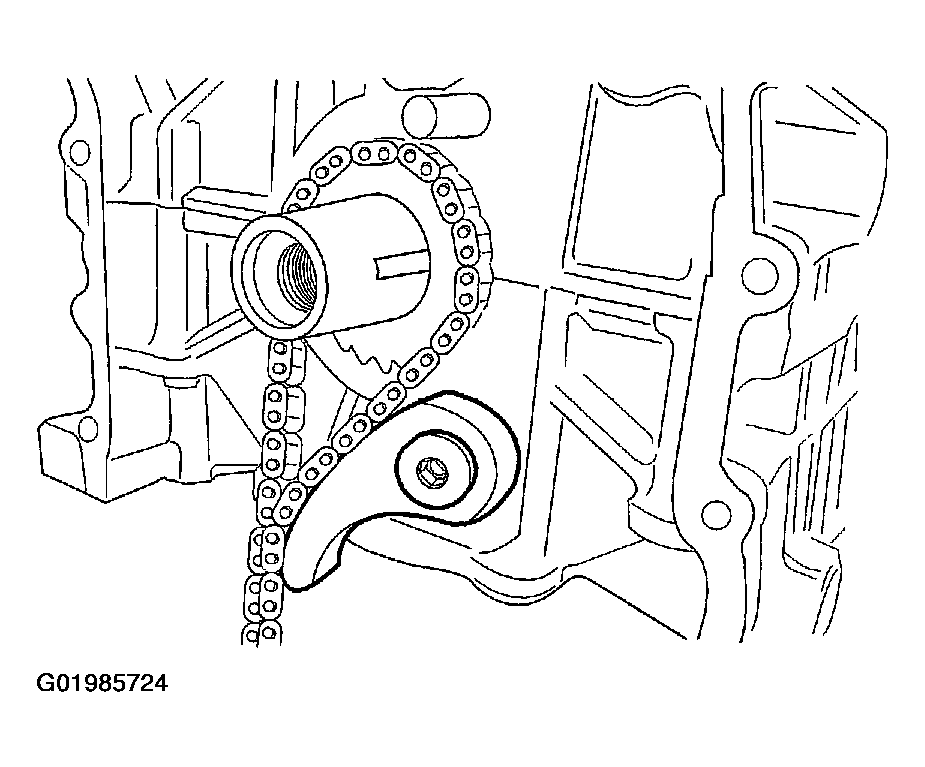

    8. Fig 3: Installing Oil Pump Chain Lever
    G01985724Courtesy of SUZUKI OF AMERICA CORP.
  8. Install the bed plate baffle.
    1. Tighten

    Tighten the bed plate baffle bolts to 7-9 N.m (62-80 lb-in).

  9. Install the oil pan. Refer to Oil Pan / Oil Pump Installation  .

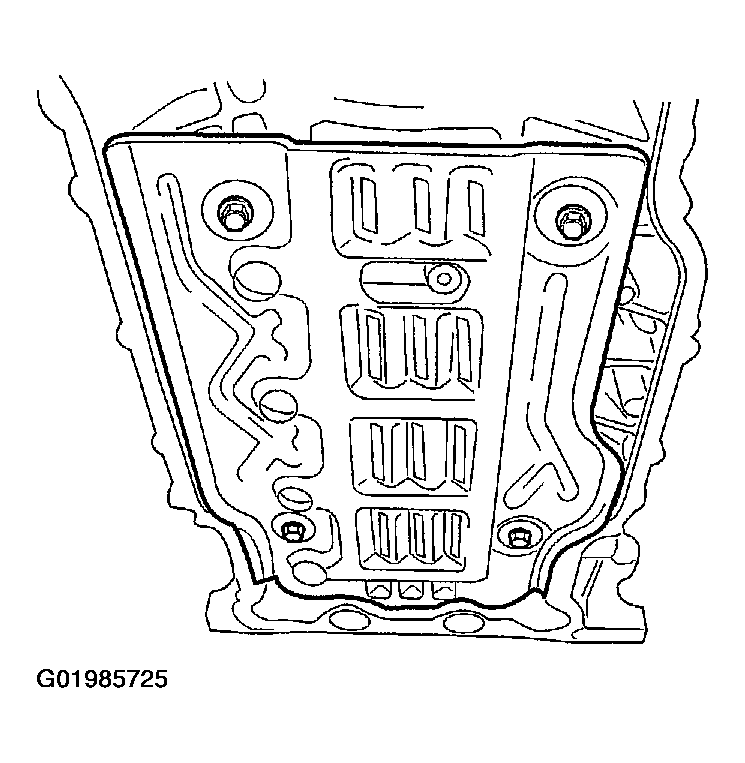

    10. Fig 4: Installing Oil Pan
    G01985725Courtesy of SUZUKI OF AMERICA CORP.
  10. Install the engine oil dipstick tube.
    1. Tighten

    Tighten the engine oil dipstick tube bracket bolt to 18-22 N.m (13-16 lb-ft).

    Tighten the engine oil dipstick tube bolt to 8-10 N.m (71-89 lb-in).

  11. Install the CKP (Crankshaft Position) sensor. Refer to CRANKSHAFT POSITION (CKP) SENSOR INSTALLATION .

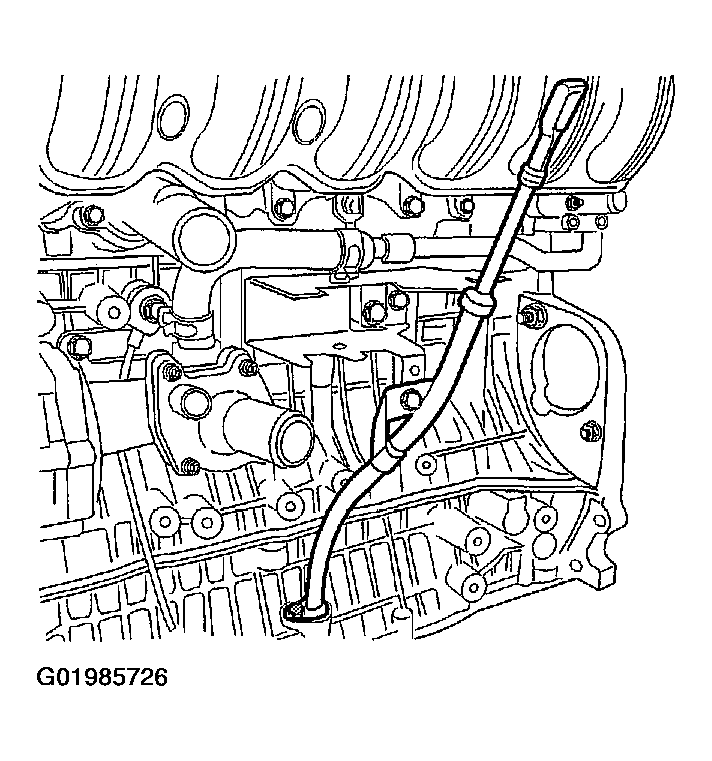

    12. Fig 5: Installing CKP Sensor
    G01985726Courtesy of SUZUKI OF AMERICA CORP.
  12. Install the lower pad bracket.
    1. Tighten

    Tighten the lower pad bracket bolts to 35-55 N.m (26-33 lb-ft).

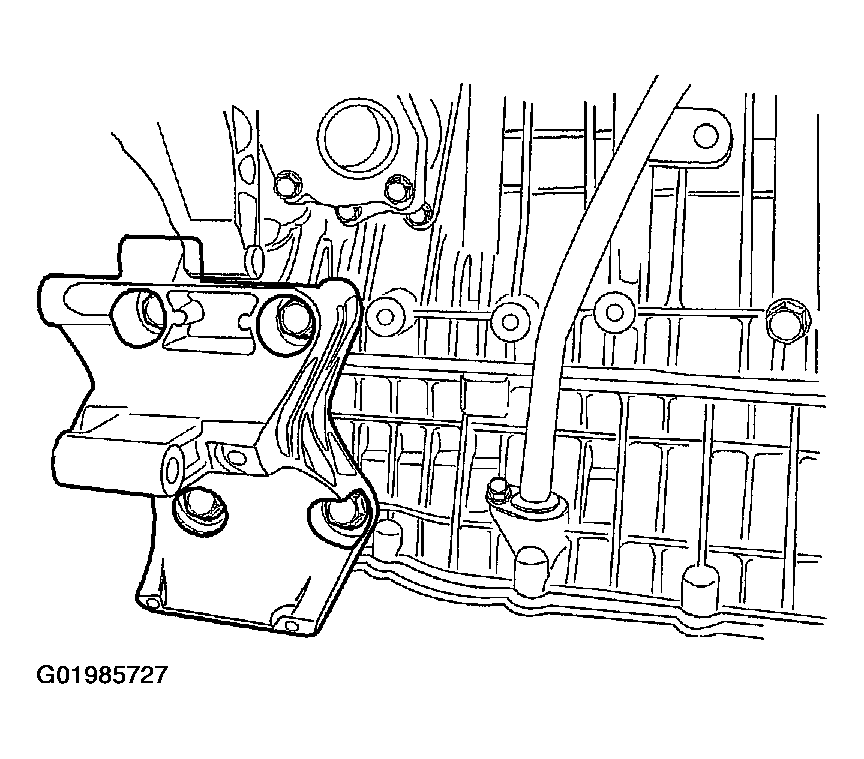

    13. Fig 6: Installing Lower Pad Bracket
    G01985727Courtesy of SUZUKI OF AMERICA CORP.
  13. Install the idler.
    1. Tighten

    Tighten the idler retaining bolt to 35-55 N.m (26-33 lb-ft).

    Tighten the upper pad-to-lower pad bracket bolt to 30-40 N.m (22-30 lb-ft).

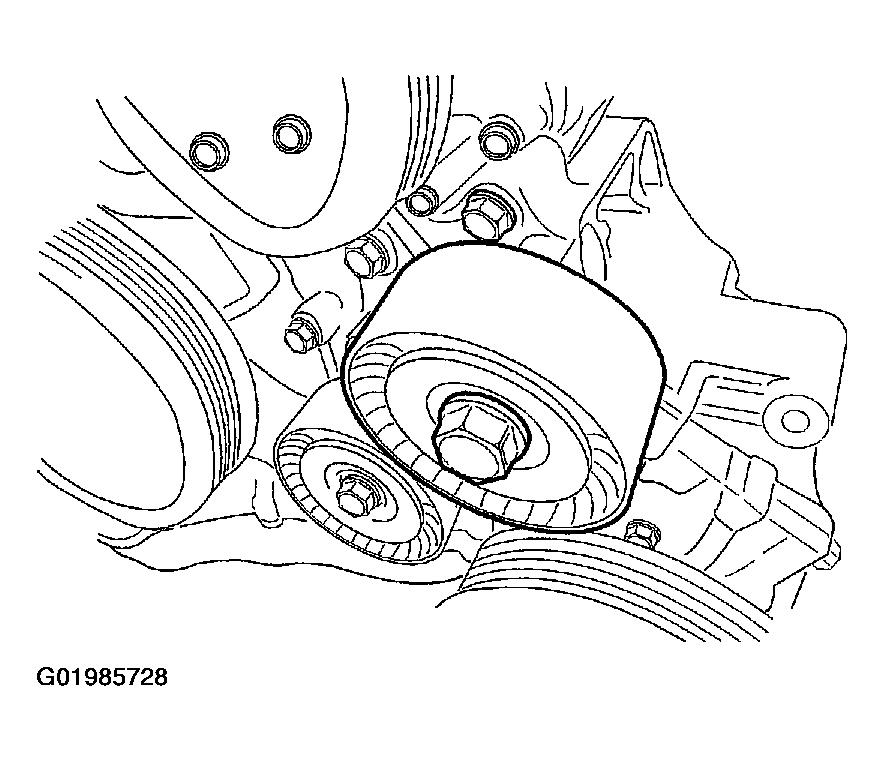

    14. Fig 7: Installing Idler Pulley
    G01985728Courtesy of SUZUKI OF AMERICA CORP.
  14. Install the compressor.
    1. Tighten

    Tighten the compressor retaining bolts and nuts to 20-30 N.m (15-22 lb-ft).

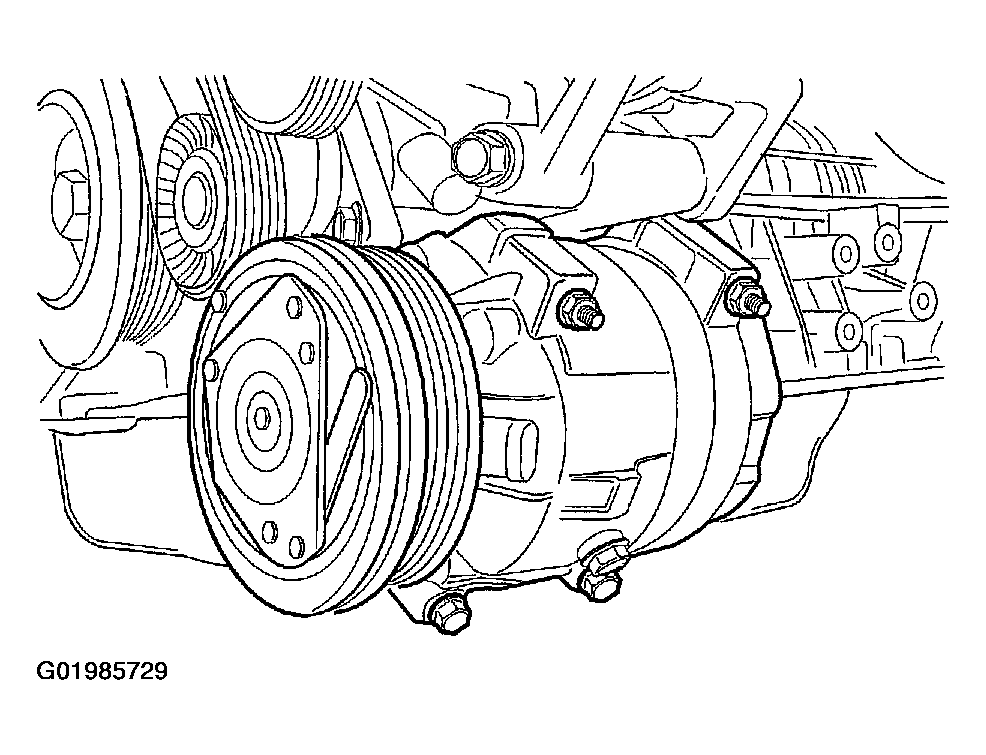

    15. Fig 8: Installing Compressor
    G01985729Courtesy of SUZUKI OF AMERICA CORP.
  15. Install the timing chain and timing chain cover. Refer to Timing Chain Installation  .
  16. Install the cylinder head cover. Refer to Cylinder Head Cover Installation  .
  17. Install the engine assembly. Refer to Engine Assembly Installation  .

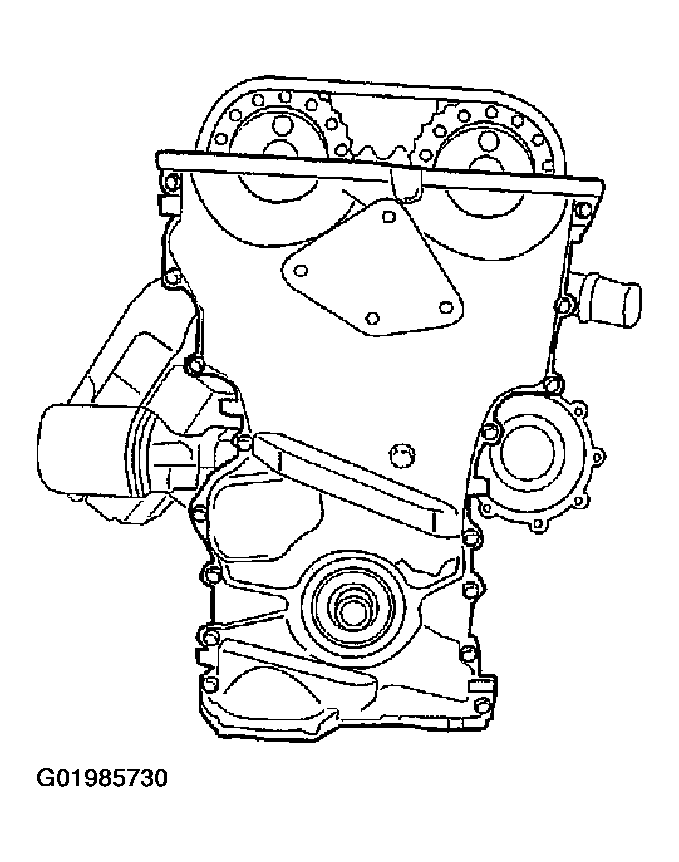

Fig 9: Installing Engine Assembly
G01985730Courtesy of SUZUKI OF AMERICA CORP.
