Combination Meter Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove steering column hole cover (1).
  3. Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM (Grand Vitara) or DISABLING & ACTIVATING AIR BAG SYSTEM (XL-7).
  4. Tilt steering column fully down position.

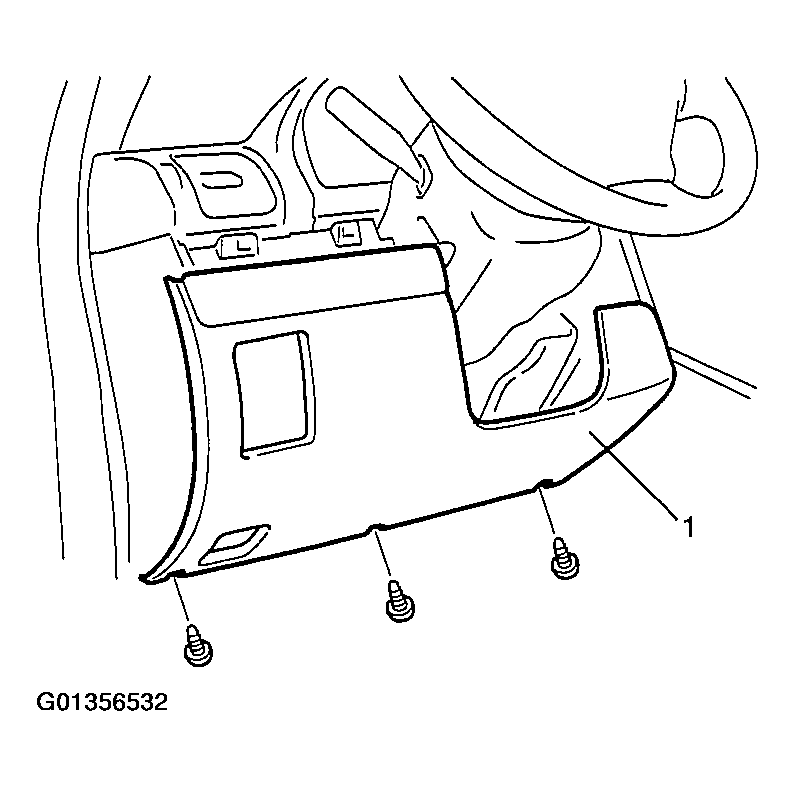

    Fig 1: Removing Steering Column Hole Cover
    G01356532Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove combination meter cluster panel (1).

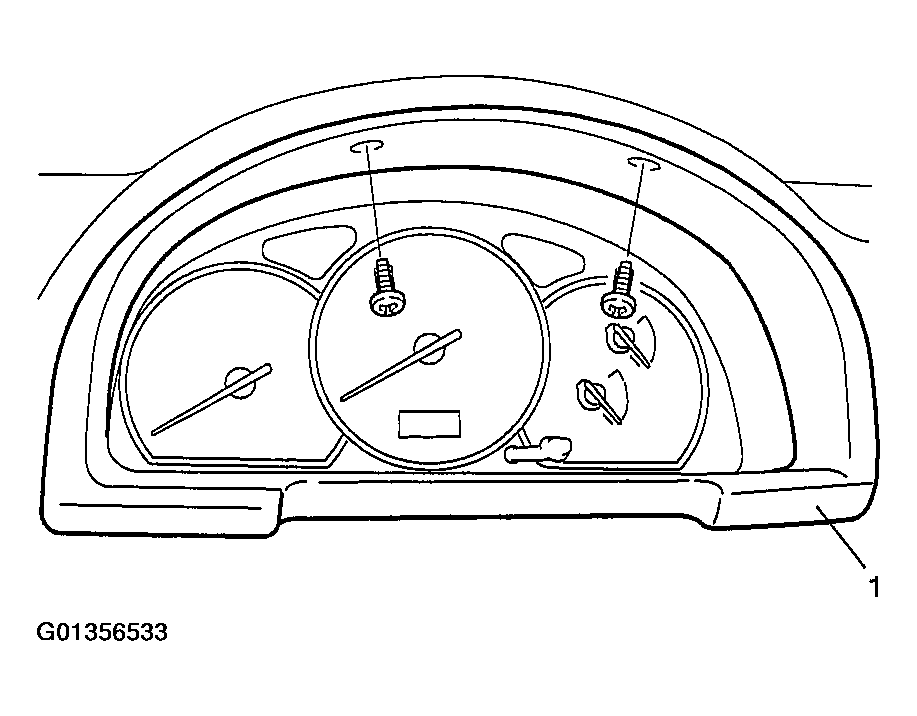

    Fig 2: Removing Combination Meter Cluster Panel
    G01356533Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove screws (1) fastening combination meter.

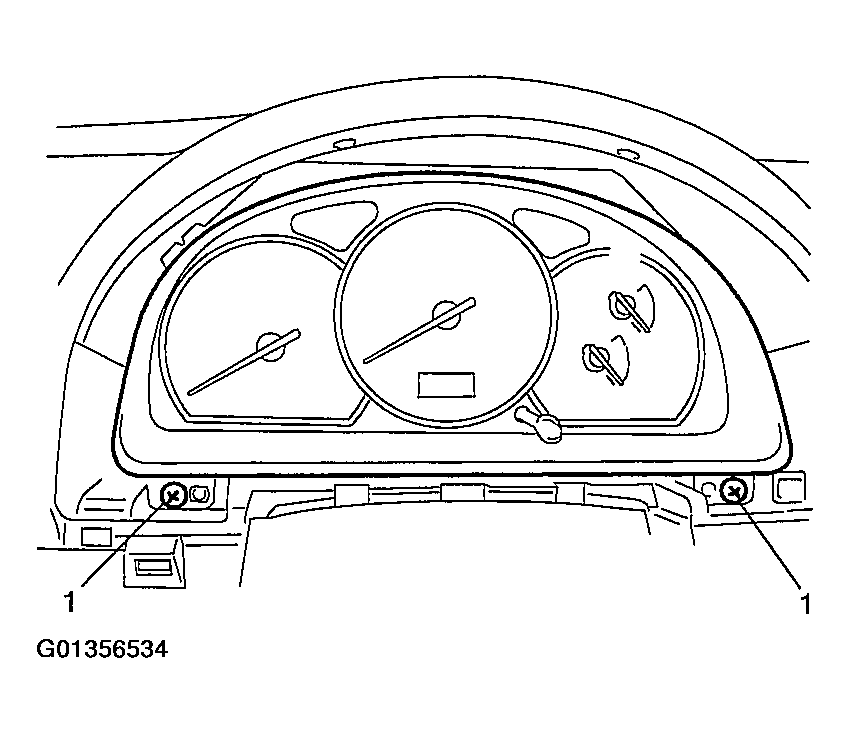

    Fig 3: Removing Screws
    G01356534Courtesy of SUZUKI OF AMERICA CORP.
  7. Disconnect couplers from combination meter.
  8. Remove combination meter from instrument panel.
