Valve Covers: Installation
WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

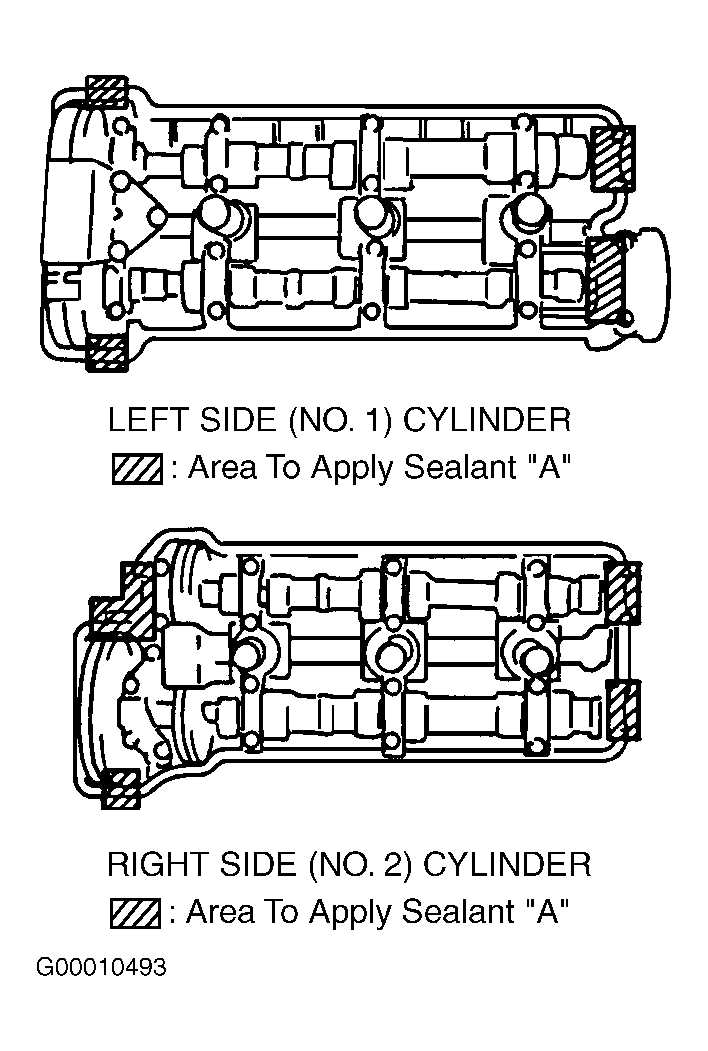

Clean gasket surfaces. Apply sealant to cylinder head. See Fig 1. Install NEW gaskets. Install valve covers and tighten bolts. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
