Tightening Torque Specifications: Notes

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

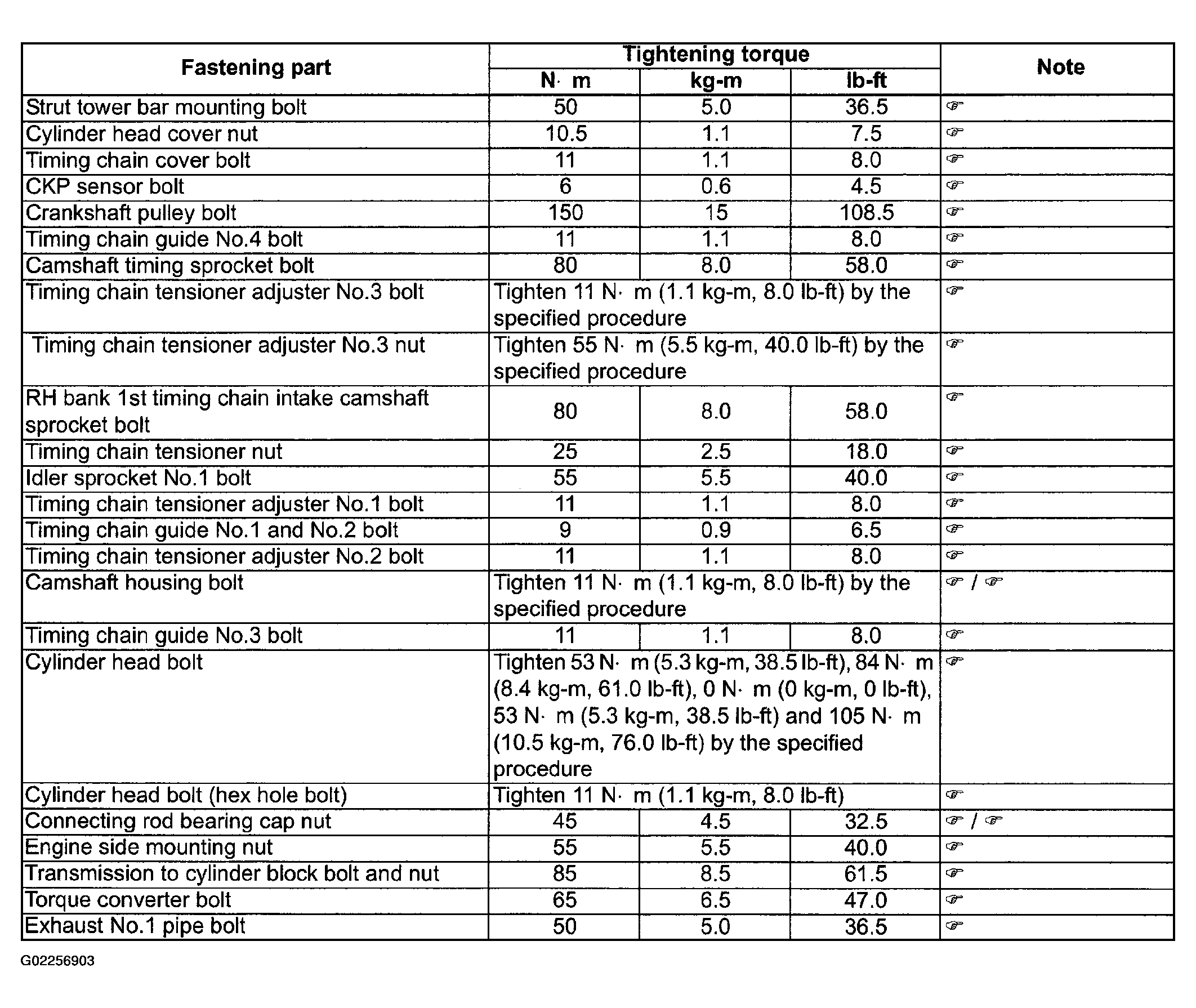

Fig 1: Tightening Torque Specifications Chart (1 Of 2)
G02256903Courtesy of SUZUKI OF AMERICA CORP.

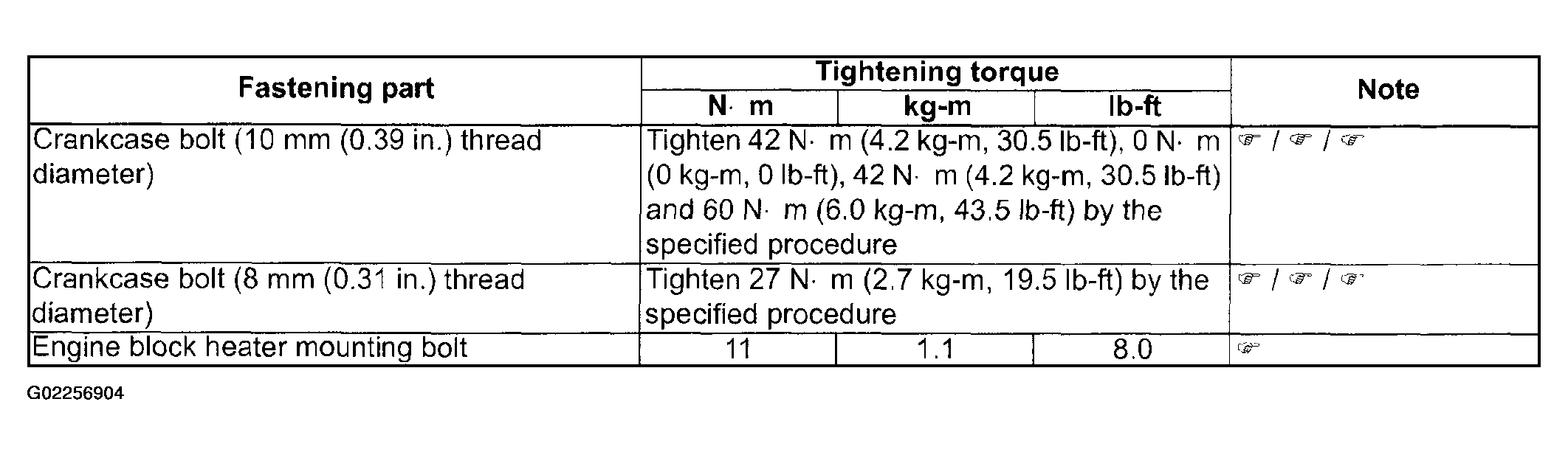

Fig 2: Tightening Torque Specifications Chart (2 Of 2)
G02256904Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following.
  1. "Timing Chain Cover Components  :"
  2. "LH (No. 1) Bank 2nd Timing Chain and Chain Tensioner Components  :"
  3. "1st Timing Chain and Chain Tensioner Components  :"
  4. "RH (No. 2) Bank 2nd Timing Chain and Chain Tensioner Components  "
  5. "Camshafts and Valve Lash Adjusters Components  "
  6. "Valves and Cylinder Heads Components  "
  7. "Pistons, Piston Rings, Connecting Rods and Cylinders Components  "
  8. "Main Bearings, Crankshaft and Cylinder Block Components  "
