1st Timing Chain and Chain Tensioner Components

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

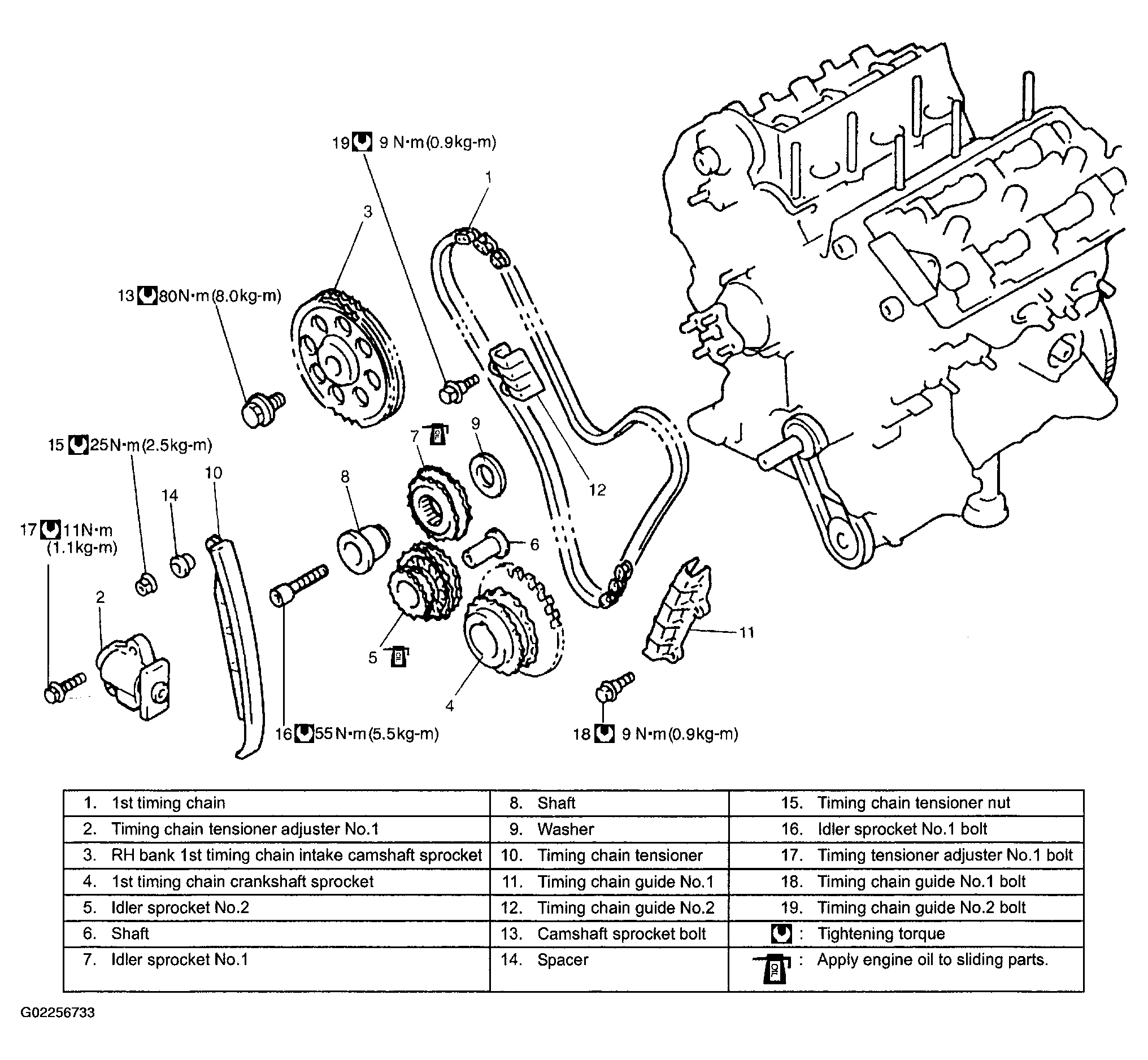

Fig 1: Identifying 1st Timing Chain & Chain Tensioner Components
G02256733Courtesy of SUZUKI OF AMERICA CORP.
