Front Wheel Hub & Front Sensor Rotor Mods For Abs (TS 3-28 09276)

FRONT WHEEL HUB & FRONT SENSOR ROTOR MODS FOR ABS

TECHNICAL SERVICE BULLETIN

MODIFICATION OF FRONT WHEEL HUB AND FRONT SENSOR ROTOR FOR ABS

Model(s): 1996, July Production & Later - Sidekick, Sidekick Sport, X-90

Section: Drivetrain

Bulletin No.: TS 3-28 09276

Date: September 27, 1996

CONDITION

Change in front wheel hub and front sensor.

CAUSE

N/A.

CORRECTION

Amend service manual. See Fig 2 .

When replacing the front wheel hub and front sensor rotor, please use the part numbers as listed in this bulletin.

SERVICE INFORMATION

This bulletin is to inform you of the modification of the front wheel hub and front sensor rotor for ABS which has been carried out since July, 1996 production. Please make the necessary changes in your service manual as listed in this bulletin.

EFFECTIVE STARTING VIN WITH UPDATED PARTS

Sidekick: JS3TD03V_V4100018

X-90: JS3LA11S_V4100236, JS3LB11S_V4100380

Sidekick Sport: JS3TD21V_V4101823

PARTS INFORMATION

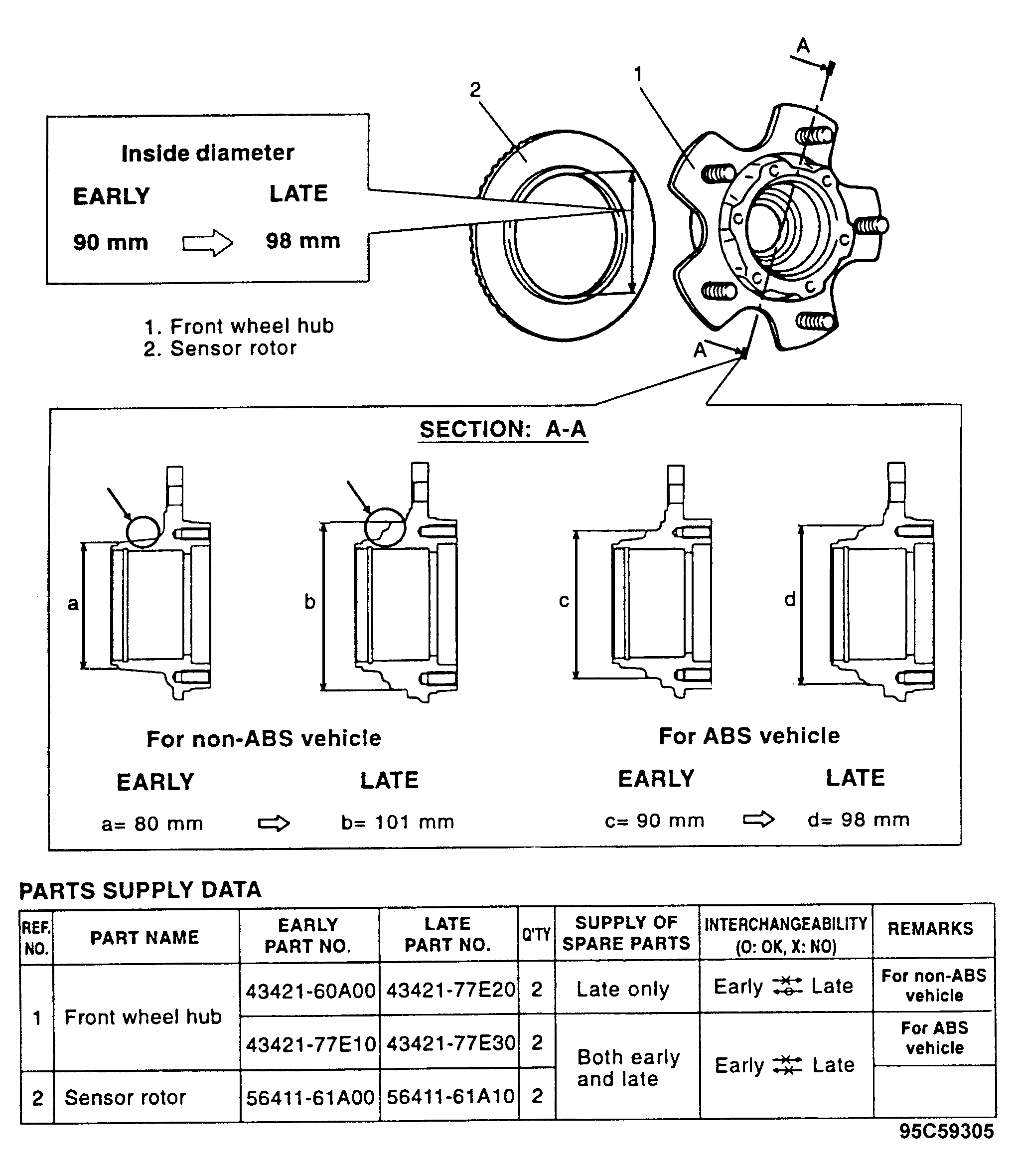

See Fig 1 .

Part Name	Early Part No.	Late Part No.	Qty.
Front Wheel Hub	43421-60A00	43421-77E20	2
Front Wheel Hub	43421-77E10	43421-77E30	2
Sensor Rotor	56411	56411-61A10	2

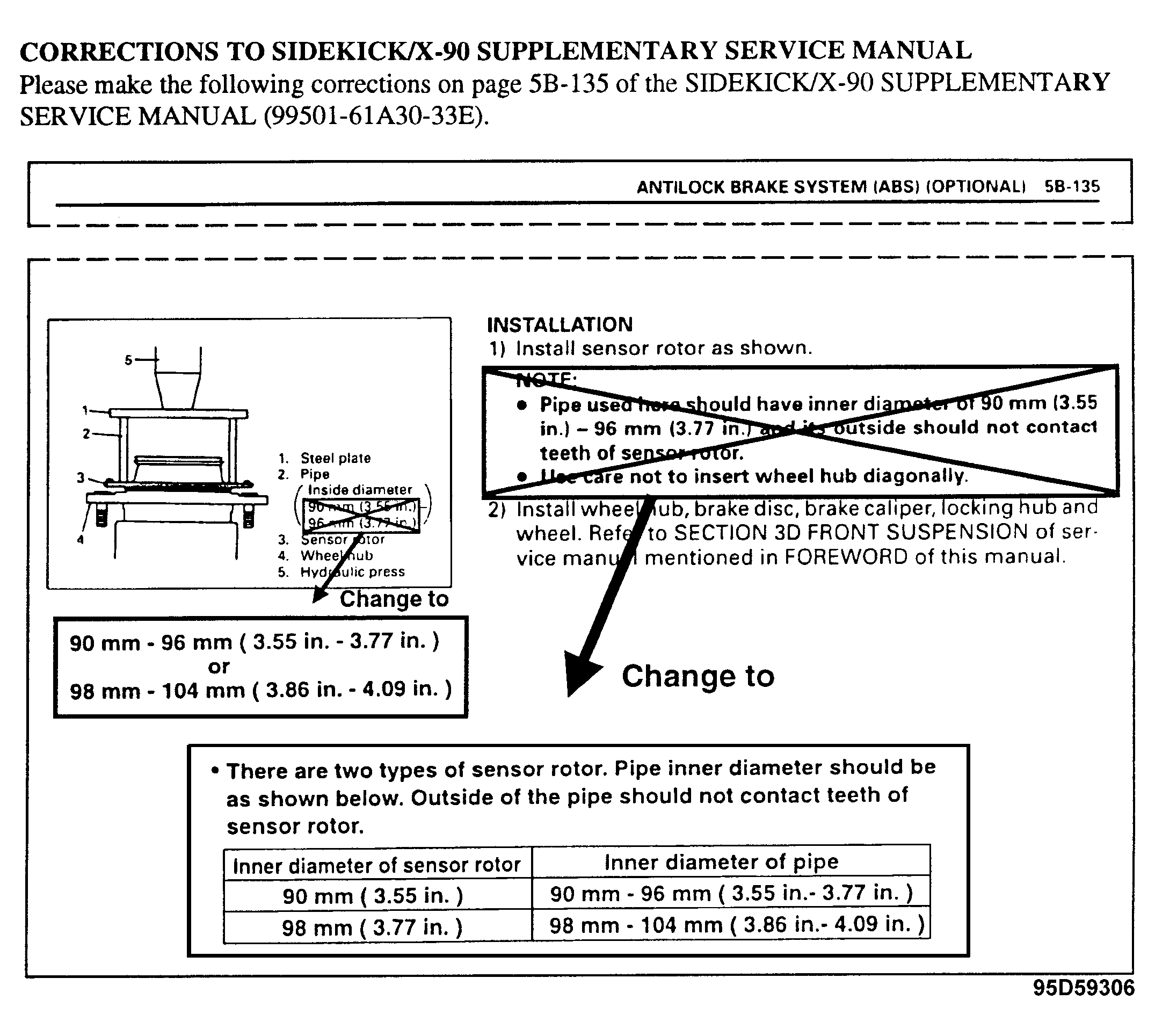

CORRECTIONS TO SIDEKICK/X-90 SUPPLEMENTARY SERVICE MANUAL

Please make the following corrections on page 5B-135 of the SIDEKICK/X-90 SUPPLEMENTARY SERVICE MANUAL (99501-61A30-33E). See Fig 2 .
