Wheel Spindle Modification - Front (TS 5-08 05246)

WHEEL SPINDLE MODIFICATION - FRONT

TECHNICAL SERVICE BULLETIN

MODIFICATION OF FRONT WHEEL SPINDLE SIDEKICK, SIDEKICK SPORT, AND X-90

Model(s): Feb 1996 & Later Suzuki Sidekick, Sidekick Sport, X-90

Section Title: Steering, Brakes and Suspension

Division: Automotive

Category: Technical

Bulletin No.: 5-08 05246

Date: May 24, 1996

VEHICLES AFFECTED

February 1996 and later Suzuki Sidekick, Sidekick Sport, X-90.

CONDITION

Noise from front wheel spindles during extremely cold climate.

CAUSE

Install updated parts as listed in this bulletin.

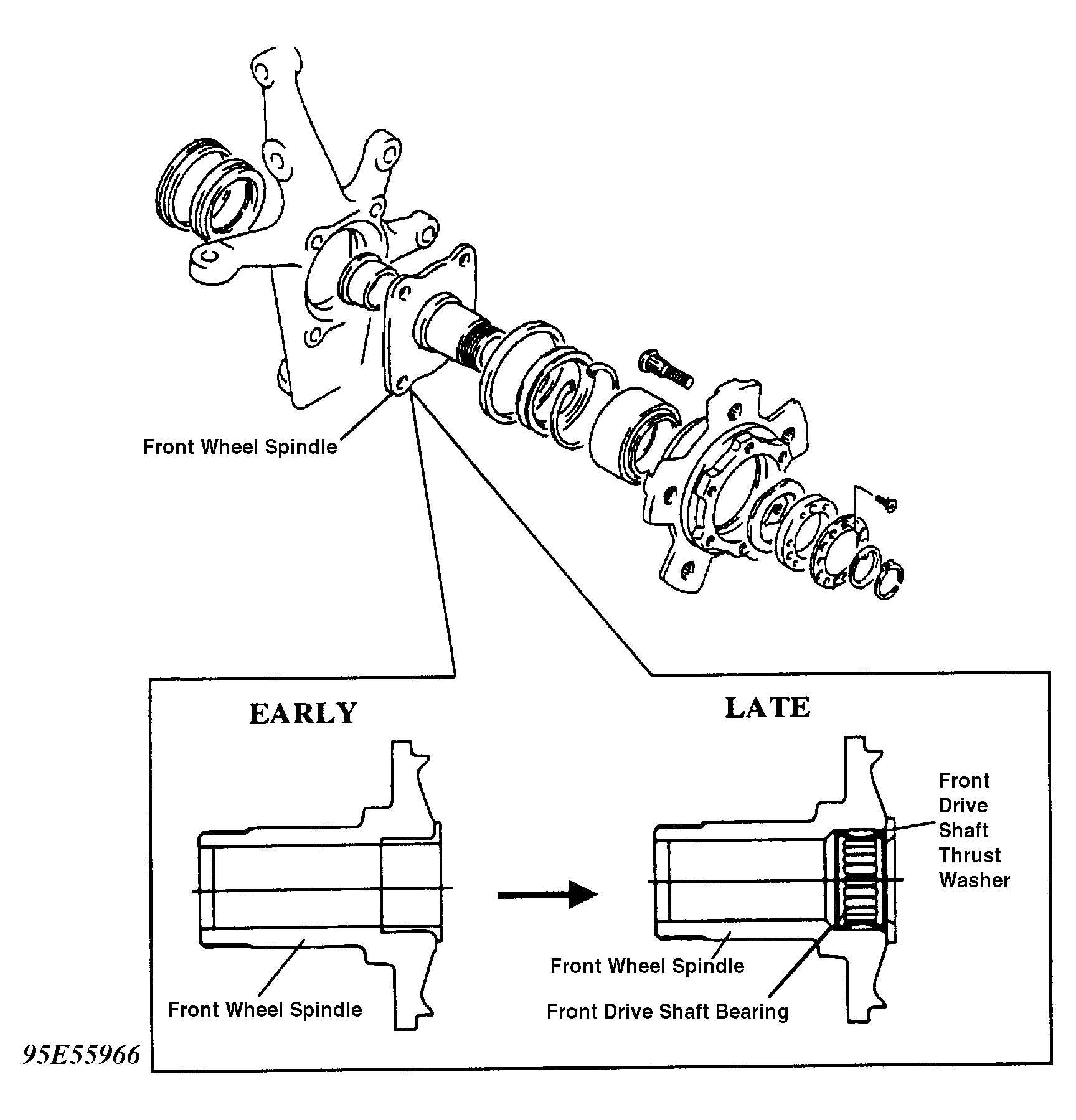

This bulletin is to inform you of the modification of the front wheel spindle which has been carried out since February 1996 production. If you experience a noise from the front spindles during extremely cold climates, replace the front wheel spindles with the updated parts listed in this bulletin.

VIN INFORMATION

MODEL	Effective Starting VINs With Updated Parts
Sidekick	JS3TD03V_T4100158- JS3TE02V_T4100425-
Sidekick Sport	JS3TD21V_T4108881-
X-90	JS3LB11S_T4104482-

SERVICE INFORMATION

When assembling the LATE style spindle and its related parts, be sure to do the following:

1. Make sure that the bearing is seated at the rear of the spindle and that its outer surface is flush with the thrust washer mating surface to no more than 0-1 mm below the thrust washer mating surface. See Fig 2 .

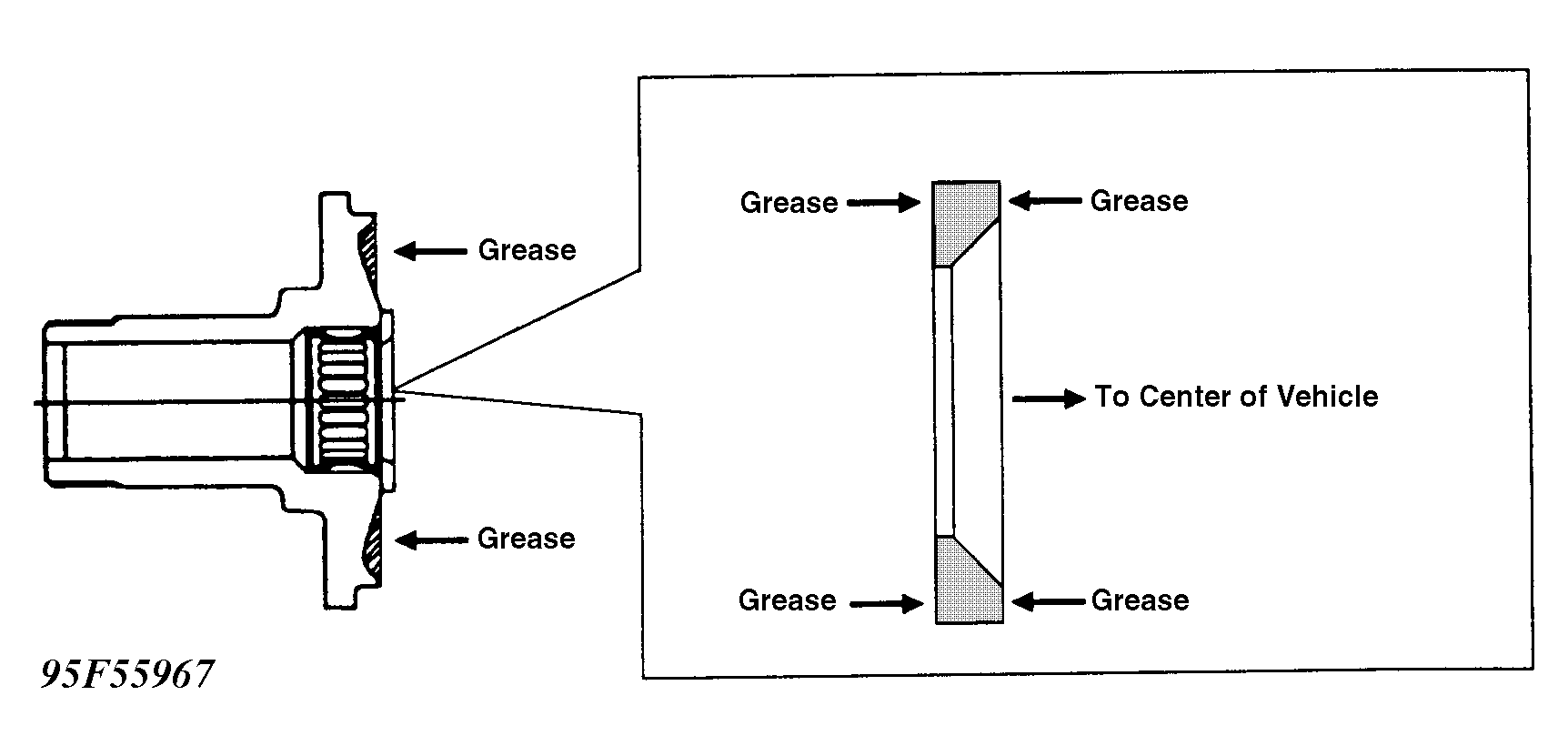

2. Apply lithium grease to the roller bearing surface, the recessed portion of the wheel spindle and both sides of the thrust washer See Fig 3 .

PARTS SUPPLY DATA

Part Name	Early Part Number	Late Part Number	Qty.	Supply Of Spare Parts	Inter- change
Front Wheel w/ABS	43440-77EOO	43441-77E20	2	Both Early And Late	Early to Late - No
Spindle w/o ABS	43440-60A03	43441-60A20	2	Both Early And Late	Early to Late - No
Front Drive Shaft Bearing	---	09263-28030	0-2	Late Only	---
Front Drive Shaft thrust Washer	---	44183-60A00	0-2	Late Only	---
Parts are interchangeable when replaced as a set.
