Cylinder Block

Inspect block for distortion of deck surface. Inspect block for cracks, scratches and other defects. Measure bores at 2 levels for wear, taper and out-of-round condition. If bore wear, taper or out-of-round exceed specification, rebore cylinders. See CYLINDER BLOCK  under ENGINE SPECIFICATIONS.

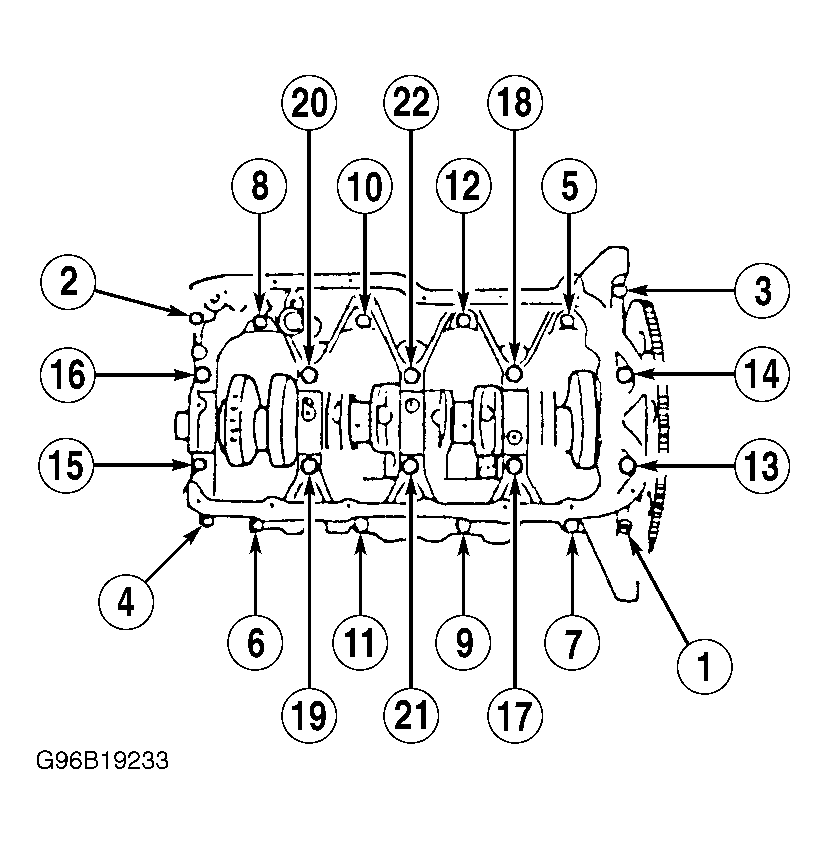

Fig 1: Loosening Crankshaft Bearing Bolts

Courtesy of SUZUKI OF AMERICA CORP.

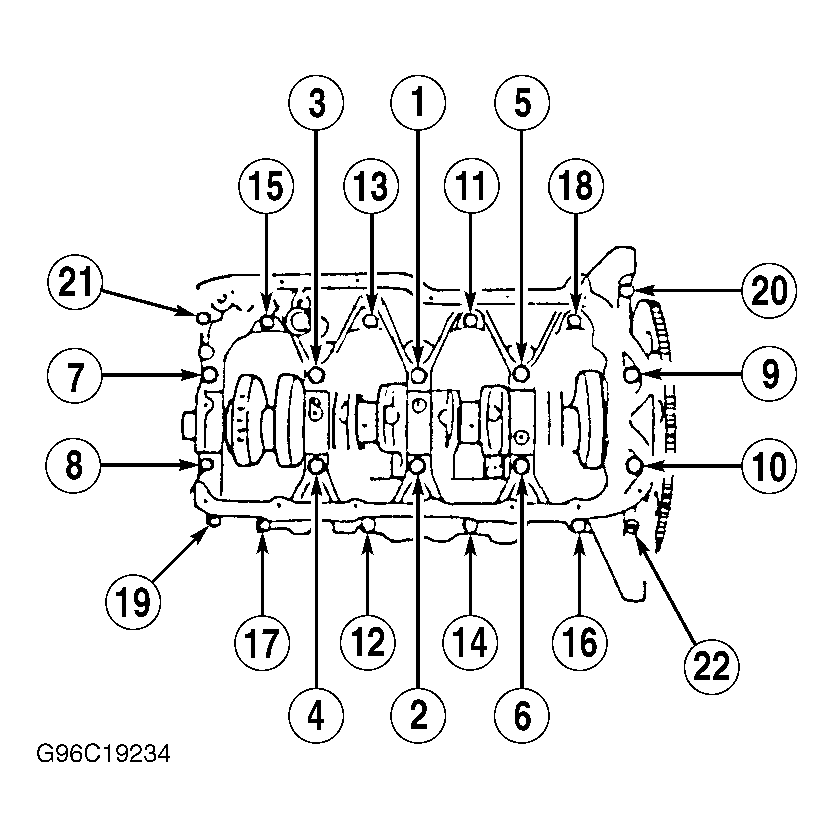

Fig 2: Tightening Crankshaft Bearing Bolts

Courtesy of SUZUKI OF AMERICA CORP.
