Cylinder Block

CYLINDER BLOCK

Application In. (mm)
Cylinder Bore
Standard Diameter (1)
Red 3.3075-3.3079 (84.010-84.020)
Blue 3.3071-3.3075 (84.000-84.010)
Maximum Taper .004 (.10)
Maximum Out-Of-Round .004 (.10)
Maximum Deck Warpage .002 (.05)

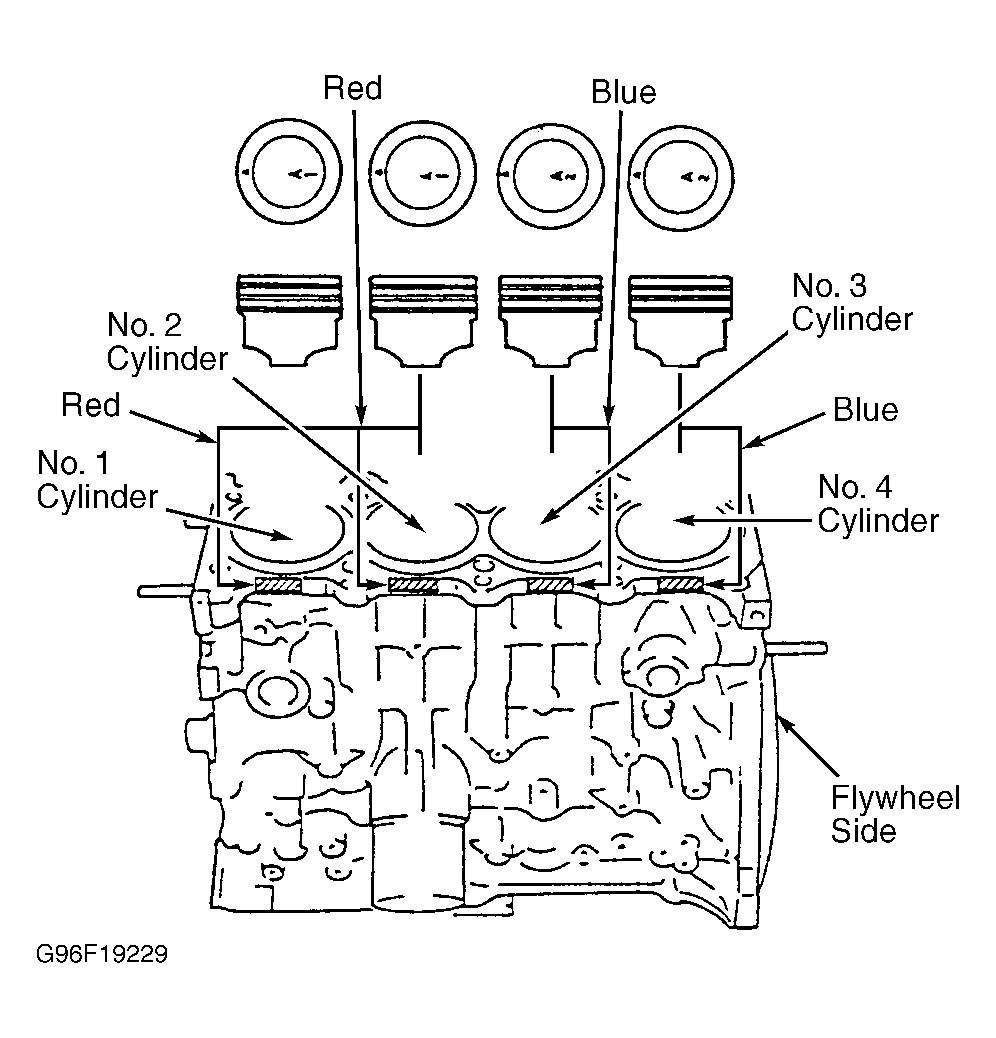

(1) Cylinder bore diameter is determined by color mark (Red or Blue) on cylinder block. See Figure.
