Passenger-Side Inflator Module: Installation

WARNING: This page is about a different car, the 1996 Suzuki Swift, 1996 Pontiac Firefly, and 1996 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.

To install, position passenger-side inflator module into vehicle upper dash pad. Install 5 retaining screws. Torque 2 upper side screws to 49 INCH lbs. (5.5 N.m) and 3 bottom center screws to 198 INCH lbs. (22.5 N.m). See Fig 1

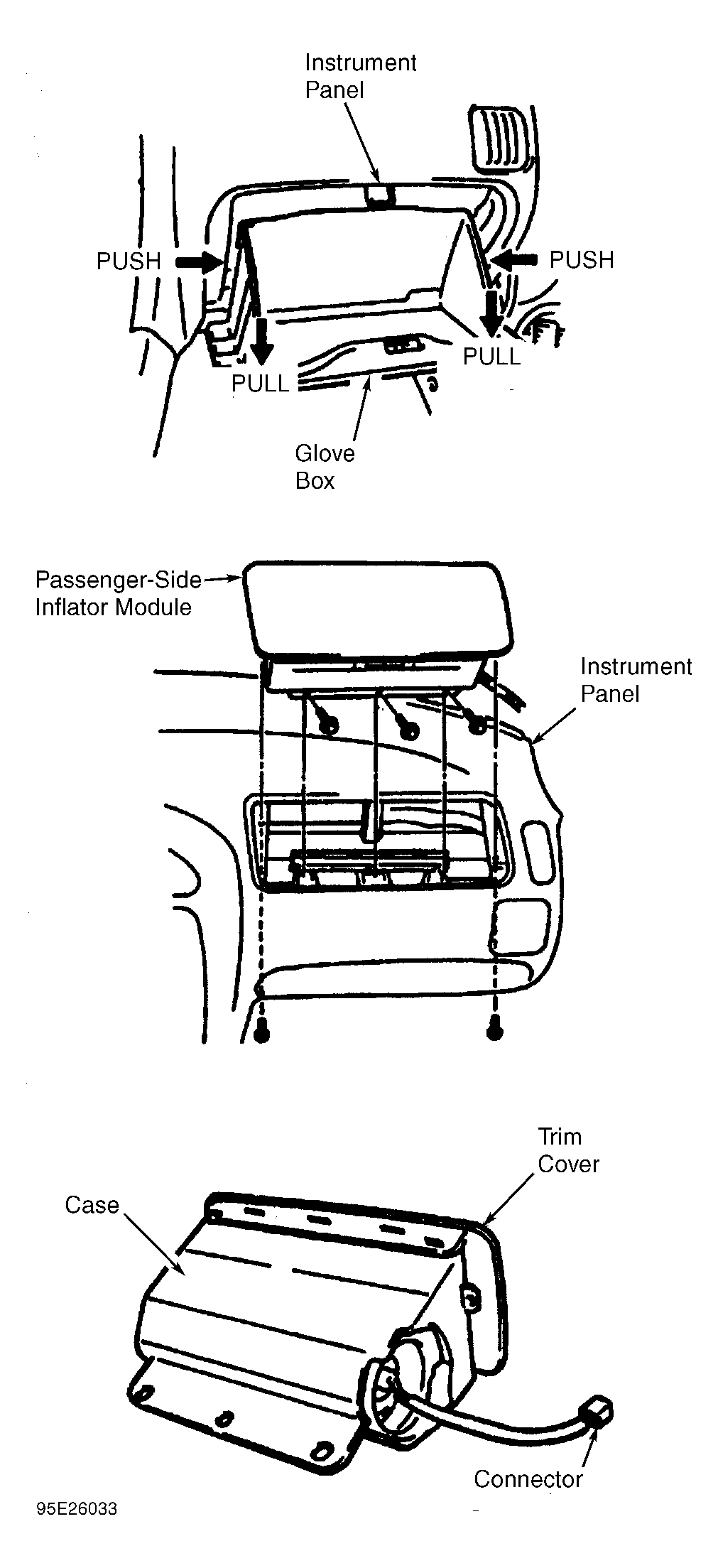

Fig 1: Installing Passenger-Side Inflator Module
Courtesy of GENERAL MOTORS CORP.
Reconnect the passenger-side inflator module connector and re-engage the CPA clip. Activate the SIR system. Refer to procedures in DISABLING & ACTIVATING AIR BAG SYSTEM .
