Rear Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

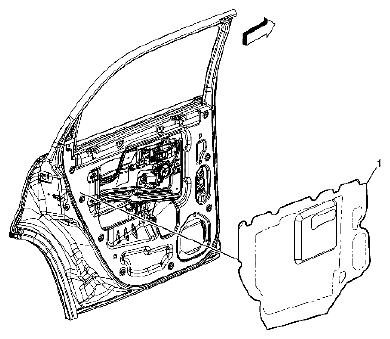

Fig 1: Identifying Rear Side Door Trim Panel Seal Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove front door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .
1	Rear Side Door Trim Panel Seal Assembly To remove door seal, start at top left corner and pull downward. When re-applying door seal, align top trimline to door features, then adhere top surface. Adhere bottom center first and then continue outward and upward. Wet-out adhesive around entire perimeter to ensure a proper seal.
