Front Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

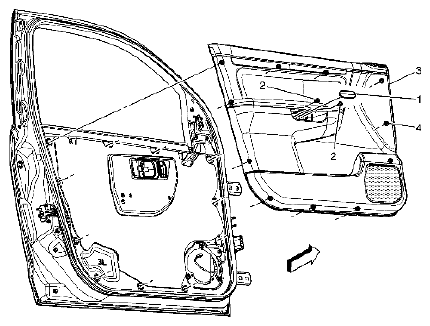

Fig 1: Identifying Front Side Door Trim Panel Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove upper extension trim panel. Refer to UPPER EXTENSION TRIM PANEL REPLACEMENT (FRONT SIDE DOOR) . Remove door handle bezel. Refer to DOOR HANDLE BEZEL REPLACEMENT .
1	Front Side Door Trim Panel Plug
2	Front Side Door Trim Panel Screw (Qty: 2) Tightening torque 2.5 N.m (22 lb in) CAUTION: Refer to FASTENER NOTICE .
3	Front Side Door Trim Panel Assembly
4	Front Side Door Trim Panel Retainer (Qty: 11)
