Hood Latch Release Cable Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

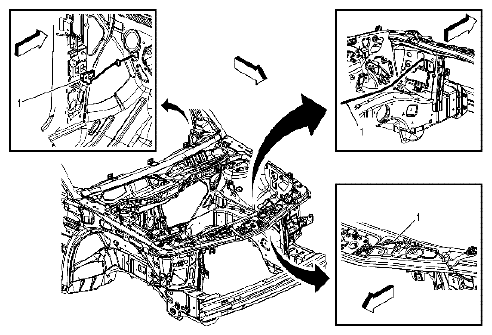

Fig 1: Identifying Hood Latch Release Cable

Courtesy of SUZUKI OF AMERICA CORP.

HOOD LATCH RELEASE CABLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT . Remove the underhood electrical center/junction block. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT . Remove the left closeout/insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE .
1	Hood Latch Release Cable Tip: Disconnect the cable from the hood latch release cable handle before attempting to remove the cable.
