Underhood Electrical Center or Junction Block Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

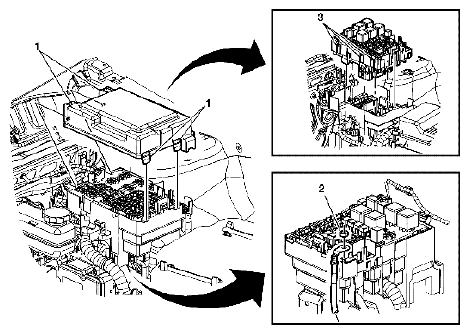

Fig 1: Identifying Underhood Electrical Center Or Junction Block

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT TABLE

Callout	Component Name
Preliminary Procedure Disconnect the battery. Refer to REMOVAL PROCEDURE
1	Underhood Electrical Center/Junction Block Cover Tab (Qty: 4) Procedure To remove the fuse block cover, push in on the tabs with a flat-bladed tool and lift.
2	Underhood Electrical Center/Junction Block Power Nut CAUTION: Refer to FASTENER NOTICE . Procedure Disconnect the battery positive cable from the junction block by removing the nut. Tightening torque 7 N.m (62 lb in)
3	Underhood Electrical Center/Junction Block Tab (Qty: 6) Procedure Remove the electrical center/junction block by using a hook-like tool to disengage the tabs.
