Front Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

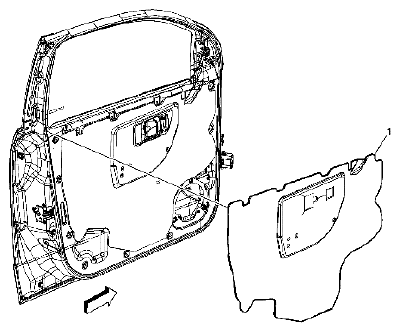

Fig 1: Identifying Front Side Door Trim Panel Seal Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove front door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .
1	Front Side Door Trim Panel Seal Assembly To remove door seal, start at top left corner and pull downward. When re-installing door seal, align locating tabs near top edge of both the seal and door structure. Stretch door seal tight across top edge and set in place. Wet-out adhesive around entire perimeter to ensure a proper seal.
