Upper Extension Trim Panel Replacement (Front Side Door)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

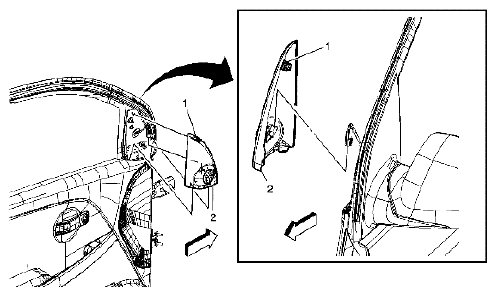

Fig 1: Identifying Front Side Door Upper Trim Panel Assembly & Retainer
G04844626Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS REFERENCE

Callout Component Name
1 Front Side Door Upper Trim Panel Retainer (Qty: 1)
2 Front Side Door Upper Trim Panel Assembly
Procedures
  1. Pull on the top end of extension panel to disengage attaching clip.
  2. Lift extension panel out from behind the door trim panel.
  3. Use care to ensure sound deadener is in correct position when installing trim to door.
  4. Disconnect electrical connectors.
