Front Floor Console Side Trim Panel Replacement - Left Side

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

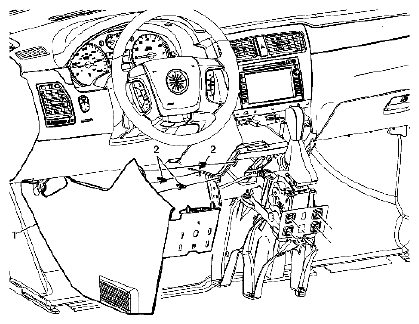

Fig 1: Identifying Console Trim Panel Assembly & Retainer Clips

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the Right Console Trim Panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE .
1	Console Trim Panel Assembly - Left
2	Retainer Clips (Qty 3)

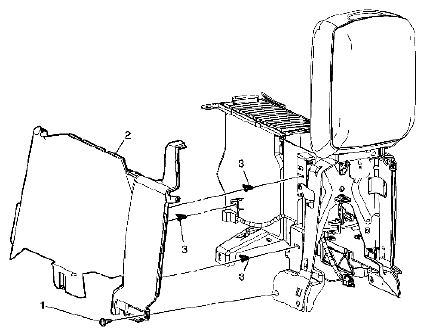

Fig 1: Identifying Console Side Trim Panel & Retainer Clips

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the console. Refer to CONSOLE REPLACEMENT . Remove the Console Upper Trim Plate. Refer to FRONT FLOOR UPPER CONSOLE TRIM PLATE REPLACEMENT .
1	Console Side Trim Panel Screw (Qty: 1) CAUTION: Refer to FASTENER NOTICE in Cautions and Notices. Tightening torque 2 N.m (18 lb in)
2	Console Side Trim Panel - Left
3	Retainer Clips (Qty 3)
