Front Floor Upper Console Trim Plate Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

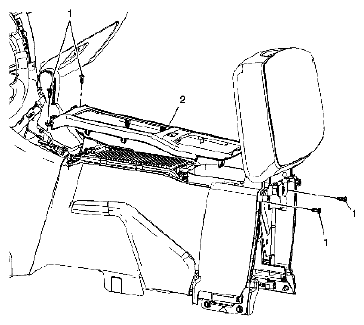

Fig 1: Identifying Console Trim Plate Assembly - Upper

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the Instrument Panel lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT . Remove the Console Rear Trim Plate. Refer to CONSOLE REAR TRIM PLATE REPLACEMENT .
1	Console Trim Plate Screws (Qty 4) CAUTION: Refer to FASTENER NOTICE in Cautions and Notices. Tightening torque 2 N.m (18 lb in)
2	Console Trim Plate Assembly - Upper
