Body Rear Corner Garnish Molding Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

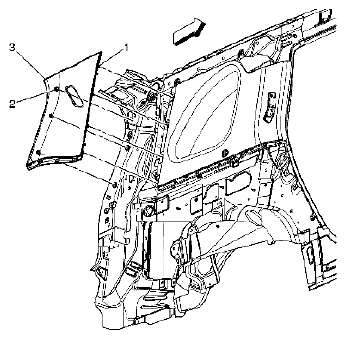

COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove rear quarter lower garnish molding. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . |
|
| 1 | Rear Corner Garnish Molding Clip (Qty: 5) |
| 2 | Rear Corner Garnish Molding Retainer (Qty: 3) |
| 3 | Rear Corner Garnish Molding Assembly |
